l Specialized IP storage device for the centralized storage of multimedia data in monitoring system. Support NFS, CIFS, FTP, iSCSI etc. protocols, users can access to IP-SAN and NAS sharable date constantly, monitoring management platform can be implanted according to need to construct a standard NVR and replace the traditional distributed DVR
l Multiple storage specifications, support flexible extension of the configurations, 250MB-750MB read/write bandwidth and 8TB-128TB bare storage, satisfy the need of data storage of multi-level monitoring (from region to branch center to main center) and read and write performance
l Ensure the continuity of telecom level services and data security. High hardware redundancy design, highly reliable array control module, data protection function and perfect storage management system can minimize user’s unexpected downtime and data lose
l Support multiple equipment centralized management and batch configuration within the same network, provide detailed log information, Email alarm, indicator light and audible alarm mechanisms, simplified daily operation and maintenance
l Standard SNMP interface, easily realize united network management for the monitoring platform manufacturers, greatly reduce system maintenance cost
l Provide Web-based Chinese graphical management interface, wizard operation interface allow non-professional technicians fulfill the functions of establishing RAID, distributing storage capacity and mapping catalogue, minimize professional requirements for personnel and misoperation
l WEB all Chinese management, command line management and equipment centralized management
l Online processor and cache occupancy rate, network flow, hard disk S.M.A.R.T, system temperature, fan speed etc. environmental monitoring
l Log alert, linkage alarm, message notification, indicator light alert, audible alarm and E-mail alarm, multiple ways to send faulty prompt to administrator
l Data auto rebuilding, reconnection, hard disk detection, storage pool and volume online capacity expansion link redundancy and load balancing, support UPS Power-fail protection configuration information management and time synchronization
l Adopt full 64 - bits software and hardware architecture
l Multiple RAID protection mechanism, including: 0,1,5,6,10, Hot Spare
l Support host multi-link redundancy and assemble technique
l Independent SAS/SATA disk channel ensures I/O high speed transmission
l Widely support all kinds of file sharing protocol, files operation system and host platform
Specifications | |
Processor |
64-bits multi-core storage processor |
Hard Disk Type |
SAS and SATAⅠ/SATAⅡ/SATAⅢ
Note:support SAS and SATA disk mix plug-in
|
Max Hard Disk No. |
24 |
Cache |
2GB(Max 24GB) |
Host Interface |
2 GbE, can extend to 6 |
RAID Level |
0,1,5,6,10, support special hot standby, idle disk hot standby, support disk roaming |
Protocol Support |
iSCSI, CIFS, NFS(V2,V3,V4), FTP, SNMP |
Operating System Support |
Windows 7,Windows Vista, windows XP, Windows Server 2000/2003/2008, Linux, FreeBSD, Unix, HP UX,AIX 5.x, Solaris, MacOS, VMware |
Max Host Attachment |
256 |
Max LUN No. |
1024 |
|
Fan
|
Redundancy |
Total Weight |
Net weight 23kg(without disk) |
Working Environment |
Temperature: 0°C - 35°C |
Humidity:20% - 80% | |
Elevation:-100-4500m | |
Environmental Impact |
Vibration: 5g 10ms 1/2 Sine |
Swing: random 0.21grms 5-500HZ | |
Noise:<7.0 LwA @20°C | |
Dimension |

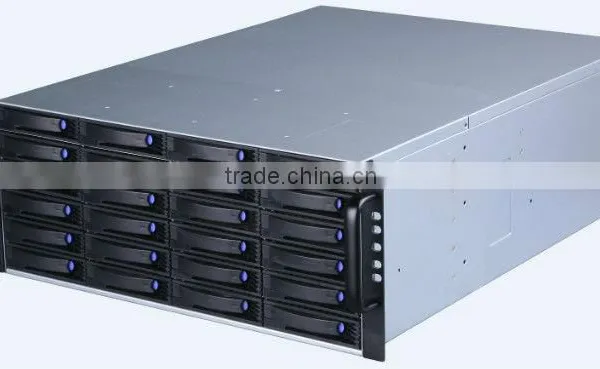

4U height, 19" standard rack
180mm×435mm×580mm
|
Power Consumption |
100-240V AC 50-60Hz 550W |
