Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 36x IP Outdoor Speed Dome

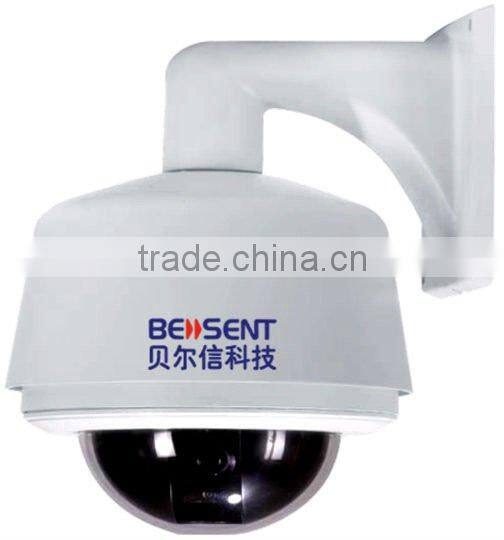

36x IP Outdoor Speed Dome

Name: 36x IP Outdoor Speed Dome
Brand: Bellsent
SKU: 100919295
Availability: InStock

Shenzhen Bellsent Technology Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Bellsent

Model Number:

BE-436W/IP

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Bellsent

Model Number BE-436W/IP

Type IP Camera

Style Dome Camera

Sensor CCD

Technology Pan / Tilt / Zoom

Special Features Waterproof / Weatherproof

Bellsent BE-436W/IP intelligent high-speed Dome offers a super-clear, high integration solution for users Remote Video Surveillance based on local area networks (LAN) or Internet. It is equipped with a zoom lens, within the high-performance digital signal processing (DSP) cameras, embedded platforms, and Digital decoder integrated, represent a new generation of high-tech surveillance product development trend.

1.high-density and programmable communication media processor Hisilicon Hi3510,SOC single chip solution, equipped with two processors,ARM9 and DSP
2.Support both high sensitivity SONY CCD
3.H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily.
4.Up to 30 frames per second in all resolutions ranging up to 720x480
5.Up to 10 viewers can directly access the camera simultaneously
6.Built-in Web server enables the use of a standard Web browser for viewing and management
7.Support 3G mobile wireless remote control and view ip camera
9.Support dynamic IP address , LAN, Internet (ADSL and Cable Modem)
10.Support protocols: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP
11.1ch Mic input and 1ch linear audio output.
12. Auto-adjusting frame rate according to real time network rate
13.Alarm recording: video lost, motion detection and sensor alarm
14.Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols,
supports transparent protocols.
15.Auto-recovery after exception occurs or the network being reconnect

16. 36x optical lens

Specifications:

Camera Module	Sony, Hitachi, Saerim block camera
Speed Dome Parameters	PT Speed: level 0.1o-150o/S, vertical 0.1o-100o/S
	Preset Position: 128,the RMS less than 0.05o
	Dimension:7 inch dome
Video Standard	PAL/NTSC
Scanning systems	Interlaced Scan
Processor	Hi3512
Dual Streaming	Support
Video Compression	H.264 Main Profile@Level 3.0 / MJPEG, optional
Video Resolution	704576(PAL), 704480(N)
Video frame rate	PAL:1-25F/s, N:1-30F/s
Video Bitrate	32Kbit/S-16Mbit/S
Audio Compression	G.726
Audio Input	1 channel MIC interface
Audio Output	1 channel Linear output
Title OSD	Supports channel name, date, and video stream information overlay; OSD location is adjustable
Control Interface	1 RS485 interface
Audio Input	1channel input, Normally Open/Normally Close modes adjustable
Alarm Output	1channel output, 120VAC 1A/24VDC 1A
E-mail Based Alert	Support
RTSP Protocols	Support, you can view live video by VLC player
FTP Protocols	Support auto upload images to a ftp server.
Mobile Monitor	Supports smart mobile phones that are based on Windows Mobile 6, Symbian v3, v5 and iPhone.
Waterproof level	IP66
Power Input	DC24V/2.0A
Dimension	224mm * 281mm
Power Consumption	<28W
