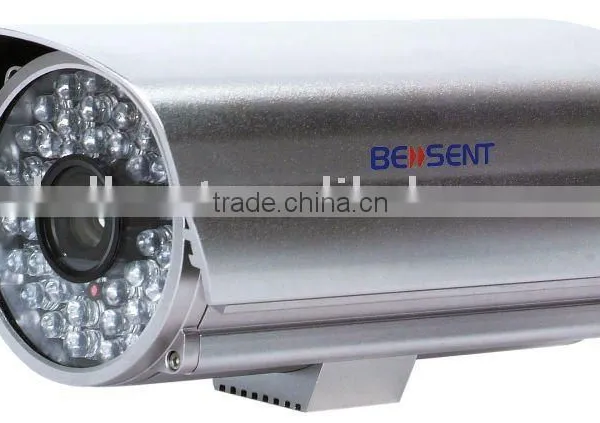

BE-MPC200/IR is 1/3" CMOS ir waterproof wireless ip camera, day and night dual-use, outdoor economic integration megapixel network cameras with infrared lights; it is waterproof effective, not fogged mirror. The infrared radiation distance can be up to 50 meters.
Features:
1. High performance SoC ARM9 processor: Hisilicon Hi3512
2.Support high sensitivity CMOS sensor
3.H.264 Main Profile @Level 3, realize transmission of High Definition video over
low network bandwidth easily.
4. Up to 10 viewers can directly access the camera simultaneously
5.Built-in Web server enables the use of a standard Web browser for viewing and
management
6.Support remote software upgrade
7.Support dynamic IP address, LAN, Internet (ADSL and Cable Modem)
8.Support protocols: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP, DHCP, FTP, SNMP
9.1ch Mic input and 1ch linear audio output.
10. Auto-adjusting frame rate according to real time network rate
11.Alarm recording: video lost, motion detection and sensor alarm
12.Provide RS485/RS232 serial port with several built-in high-speed domes and decoder protocols,
supports transparent protocols.
13. Auto-recovery after exception occurs or the network reconnected
Specifications:
Image Sensor |
1 / 3" 2.0 megapixel progressive CMOS sensor, |
Minimum illumination |
0.1 Lux |
Video Standard |
CMOS |
Scanning systems |
Progressive |
Processor |
Hi3512 |
Lens |
Optional 6mm/8mm/12mm fixed aperture lens |
Video Compression |
H.264 Main Profile @Level 3.0 / MJPEG |
Dual Streaming |
Support |
Resolutions |
Primary Stream:1600*1200(15fps), 1280*960 (22.5fps), 1280*720 (30fps) Secondary Stream: 800*600, 400*288, 192*144 |
Video Frame Rate |
1~25fps(other definitions) Secondary Stream:1~25fps |
Video Bitrates |
32Kbit/S-16Mbit/S |
Audio Compression |
G.726 |
Talkback Input |
1 channel MIC output |
Audio Output |
1 channel Linear output |
Alarm Input |
1 channel on/off output, 120VAC 1A/24VDC 1A |
Title OSD |
Supports channel name, date, and video stream information overlay; OSD location is adjustable |
SD Card Interface |
Support video storage and image snapping; SD2.0 standard, maximum storage 32G |
Control Interface |
1 RS485 interface |
Alarm Output |
1 channel on/off output, 120VAC 1A/24VDC 1A |
E-mail Based Alert |
Support |
RTSP Protocols |
Support, you can view live video by VLC player |
FTP Protocols |
Support, auto upload images to a ftp server. |
Mobile Monitor |
Supports smart mobile phones that are based on Windows Mobile 6, Symbian v3, v5 and iPhone. |
Wireless |
Support 802.11b/g protocol, frequency 2.4GHZ, the wireless distance can be 100 meters without block |
Wireless Encryption Protocol |
Supports WEP,WPA,WPA2 |
Waterproof level |
Comply with IP66 standard |
Power Input |
DDC12V/3.0A |
Power Consumption |
<12W |
Size |
248mm * 110mm * 110mm |
