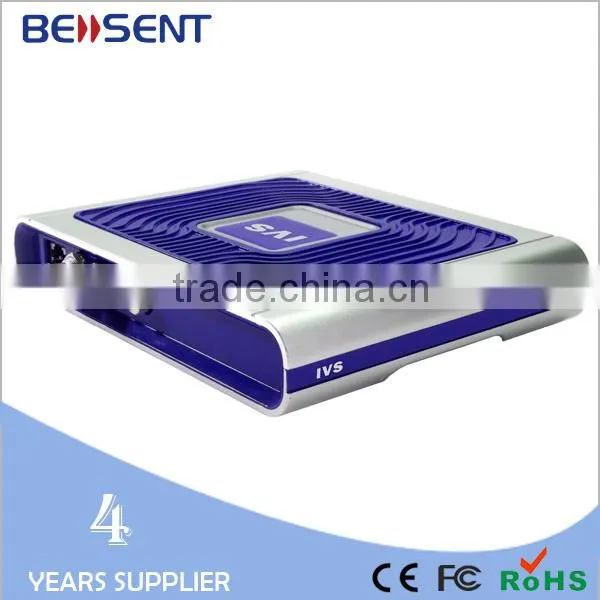

BE-IVS200 Intelligent Video Analysis Sever
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bellsent
Model Number:
BE-IVS200
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Channel Intelligent Video Sever for Railway Crossing Detection and AlarmNegotiableMOQ: 1 Unit -
Left Behind Baggage Detection Video Analytics IP EncoderNegotiableMOQ: 1 Unit
-
4ch Intelligent Traffic Video Analytics ServerUS$ 1 - 500MOQ: 1 Piece
-
BE-IVS4000 Intelligent Video AnalysisUS$ 4,000 - 5,000MOQ: 1 Piece
-
Video Analysis SurveillanceNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Bellsent
Model Number
BE-IVS200
Specifications
Intruders detectionPTZ auto tracking
2ch video encoder CIF output
Support HTTP
Intelligent video analysis
The BE-IVS 200 is an intelligent-video-device with built-in self-sustained video analytics. The BE-IVS 200 is ideal for distributed installations where the security cameras are dispersed in multiple individual camera locations.
The BE-IVS200 plugs inline and upgrades a common CCTV security camera (B/W, color, thermal, and infrared) with powerful indoor and outdoor automated detection and autonomous tracking of intruders, suspicious baggage, stopped vehicles, removed items and more.
Key Intelligent Functions:

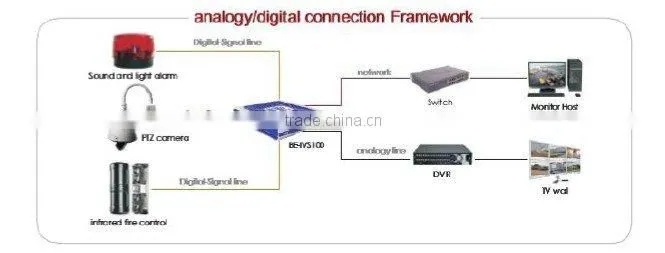

The connections:
Key features:
- Two Video Detection Channels
- CIF Resolution-low latency-MPEG-4 audio & video streaming
- Fully integrated and self-sustained video analysis and encoding appliance-no need ufor additional HW/SW
- Real time video analysis (DSP based)
- High probability of detection, low false alarm rate
- 5 minutes setup process uAutomatic actions can be triggered upon detection
- Integrated HTTP Server for live view and configuration
- Hybrid video output (Analog & IP streaming)
- Supports B/W, color, IR and thermal cameras (PAL/NTSC)
| Video Input channels |
|
| Number of Intelligent Video Analysis Channels | 2 |
| Analog Video Inputs |
|
| Video Signal | Composite 1Vp-p – NTSC or PAL |
| Physical Connector | 1 x BNC 75 |
| Analog Video Outputs |
|
| Video Signal | Composite 1Vp-p – NTSC or PAL |
| Physical Connector | 1x BNC 75 |
| Digital Video Output |
|
| IP video streaming | MPEG4 SP, MJPEG |
| Max Resolution per Channel | CIF |
| Frame Rate | Up to full frame rate |
| Bit Rate | CBR (128Kbps – 4Mbps) |
| Network |
|
| Ethernet (IEEE 802.3/802.3U) | 1x Ethernet RJ-45 Interface |
| Services and Protocols | TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
| Video streaming | RTP/RTSP |
| Alarms /Commands | TCP/IP |
| I/O Interface |
|
| Serial - RS-232 / RS-485 | None |
| IN – Alarm Input | 4x Alarm inputs (from Dry Contacts) |
| OUT – Relay Output | 2 x Relay Output (rated load 1A @ 30VDC) |
| Power Source |
|
| Voltage | 12VDC |
| Power over Ethernet (PoE) | Supported (IEEE 802.3af) |
| Power Consumption | 5W |
| Physical Dimensions |
|
| Dimensions (mm) | 88 x 26 x 130 mm (W x H x D) |
| Dimensions (Inches) | 3 7/16" x 1" x 5 3/32" (W x H x D) |
| Mounting | Camera Housing/Shelf |
| Environmental Specifications |
|
| Operating Temperature | 0° to 50° C |
| Operating Humidity | 5% to 95% (Non-Condensing) |
| Certifications |
|
| Safety | UL, CE |
| Electromagnetic Interference (EMC) | FCC 47 CFR part 14 subpart B, Class A CE, Class A |
