Home > Products > LED Module light > LED Module For Light Box,High Lumen LED Module 220V IP65 3 years Warranty
LED Module For Light Box,High Lumen LED Module 220V IP65 3 years Warranty
USD $0.2 - $3
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Model Number: | BW-MD1001 | Chip Material: | Other, PVC, ABS PLASTIC | Emitting Color: | Warm White |
| Luminous Intensity: | 80 | Luminous Flux(lm): | 24 | Optical Attenuation(%): | 1 |
| Power: | Other, 0.3 | Power Dissipation: | 0.4 | Color Rendering Index(Ra): | 80 |
| Color Temperature: | 2700K,4500K,6000K | Operating Temperature(℃): | -20, 50 | Storage Temperature(℃): | -20, 60 |
| Place of Origin: | Guangdong, China | Brand Name: | Brightway LED Limited | Certification: | CE |
Product Description
Specifications
LED Module for light box2 12V High Brightness
3 Channel letter sign LED back light
4 2/3/4 LED,CE ROHS
5 IP65 LED Module
LED Module For Light Box,High Lumen LED Module 220V IP65 3 years Warranty
LED Module Introduction:
1,Injection Module adopts ABS material as its shell. transparent epoxy resin around the lights with good insulativity.
2,Comprehensive performance , good with excellent electrical performance, impact strength and wear resistance, chemical resistance, moisturecontent , shaping and excellent machining technology.
3,Completed through injection in one time. solves the problem that nonuniform sealing, dirty shell and LED stand out of the glue etc. It is simple artwork with good appearance and short lead time as well.
4,Good cold resistant available for -20~40°C. 3M adhesive tape and screws for customers to fix it in easy installation.

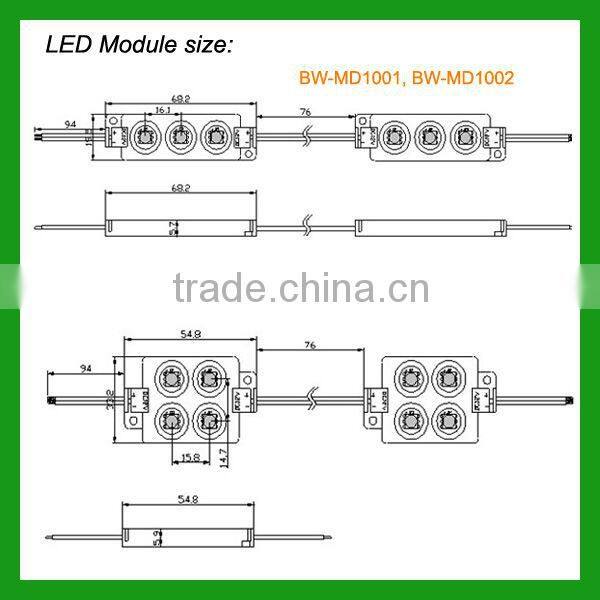

LED Module Details:
| Part No. | Color | LED chip | LED Qty (pcs) | Input Volt | Power (watt) | Lumens | Viewing angle | IP Rank |
| BW-MD1001 | Pure white Warm white Red Green Blue Yellow | SMD3528 | 3 | DC 12 | 0.3 | 24LM | 140° | IP65 |
| BW-MD1002 | SMD5050 | 3 | 0.72 | 48LM | ||||
| BW-MD1003 | SMD5050 | 4 | 1.2 | 64LM | ||||
| BW-MD5001 | Pure white Neutral white Warm white | SMD5730 | 3 | 1.2 | 110LM | |||
| BW-MD5002 | SMD5730 | 2 | 1.2 | 85LM | ||||
| BW-MD5003 | SMD5730 | 3 | 1.2 | 110LM | ||||
| BW-MD6001 | CREE XP-E | 1 | 1.3 | 95LM |
LED Module Features:
1. Unique design, ABS PLASTIC Molding shell, adopting high brightness S,3528 SMD5050 SMD5730.
2. High llighting efficiency which can reach 90lm/W.
3. IP Rand: IP65.
4. Adopting with DC12V constant voltage driver.
5. With retrofitted holes and 3M tape, two installation choice.
LED Module certification:
LED Module Applications:
