Home > Lights & Lighting > LED Interior Lighting > LED Down Light > Samsung 20W Led Rectangular Downlight With Cutout160mm

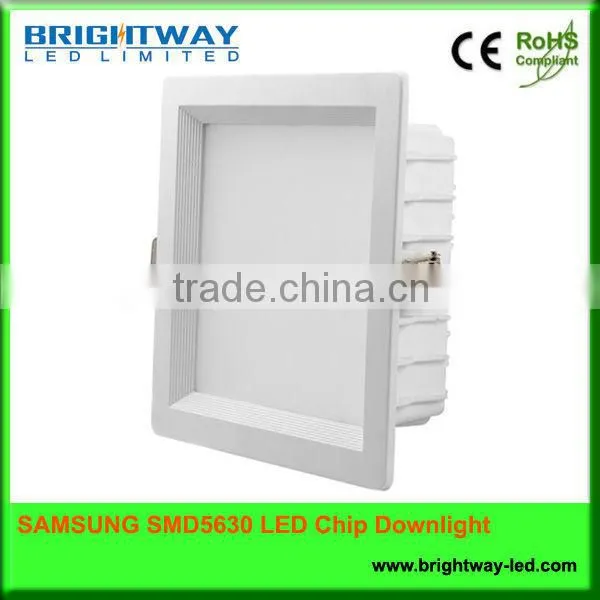

Samsung 20W Led Rectangular Downlight With Cutout160mm

Name: Samsung 20W Led Rectangular Downlight With Cutout160mm
Brand: Brightway LED Limited
SKU: 100915341
Availability: InStock

Samsung 20W Led Rectangular Downlight With Cutout160mm thumbnail-1

Samsung 20W Led Rectangular Downlight With Cutout160mm photo-1

US$ 20 - 40 MOQ: 10 Pieces

Key Specifications

Get Latest Price

LED Light Source:

LED

Warranty(Years):

Input Voltage(V):

AC 90-295V

Contact Supplier Request Quote Chat Now

Shenzhen Brightway Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source LED

Warranty(Years) 3

Input Voltage(V) AC 90-295V

Lamp Power(W) 20

Lamp Luminous Flux(lm) 1700

Lamp Luminous Efficiency(lm/w) 85

Color Temperature(CCT) Pure White

Working Temperature(℃) 20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP33

Certification CCC, CE, CQC, FCC, GS, SAA

Model Number BW-CL10-20W

Place of Origin Guangdong, China

Brand Name Brightway LED Limited

Specifications

-High lumen Led
-AC90-295V, constant current driver
-Unique design,excellent cooling function
-3 years warranty
-cutout160mm

Samsung 20W led rectangular downlight with Cutout160mm

Cutout 160mm SMD Downlight 20W 1700lm Led Downlight

Unique advantages and benefits:

High efficiency light source, optional: SMD 5730
Wide Voltage (AC90 ~ 265V) means it can be used worldwide, broadband (50/60Hz) input, constant current drive, noflash, fast response to achieve over-current, overload, no-load protection, use safety.
High thermal-conductivitythermal aluminum,modern design
Light efficiency, low power consumption, than the traditional halogen, incandescentenergy saving 80%,compared with 50% energy saving lamp.
No UV radiation, mercury and other harmful substances,environmental protection.
Optional color temperature: warm white, cool white.
Long life, up to 50,000 hours.

Part No.	Color Temp	Input Volt.	Power (W)	LED driver	Lumen (LM)	CRI	View angle	Hole size(mm)	Size (mm)
BW-CL10-20W	4000-5000K 3000-3500K	AC 90-295V	20W	DC3-26V 700mA	1700	80	80	160	180*180
BW-CL09-10W			10W	DC28-37V 350mA	850			130	140*33
BW-CL09-15W			15W	DC3-34V 700mA	1400			170	190*39
BW-CL09-20W			20W	DC3-26V 700mA	1705			195	230*46

Demention of CL09-XX:

Packing Picture:

Quality Assurance:

Warrnty: 2 years, offer LED driver and light for replacement while they failed within warranty.

QC:

1). Inspection Materials, Aluminum alloy, Driver with strict & long time test before application, LED chips inspection for making sure even color CRI and Lumen efficiency test etc.

2). Assembling: processing is following detailed prodution instruction. The order's progress have monitored and showing in ERP system.

3). Ageing test: 24hrs ageing test before shiped out.

4). Warehouse and delivery: Docs for part No., quantity, color temperature, voltage, label ect

Brightway LED Ltd. lights are suitable for installations in offices, schools, colleges, Universities, hospitals, showrooms, retail premises, warehouses and other areas.

Certificates:

Now markets in Australia, Malaysia, Germany, Italy, Austria, USA,Japan etc.

This unique and wonderful design ceiling lights would be helpful to you.

Contact us: MS VICKY

Skype:brightway03
