Specifications
recessed downlight for home-AC85-265V, constant current driver
-Unique design,excellent cooling function
-3 years warranty
recessed downlight in ceiling for home lighting, CE SAA ROHS. LED
Cutout 180mm SMD Downlight 20W 1468lm Led Downlight
Unique advantages and benefits:

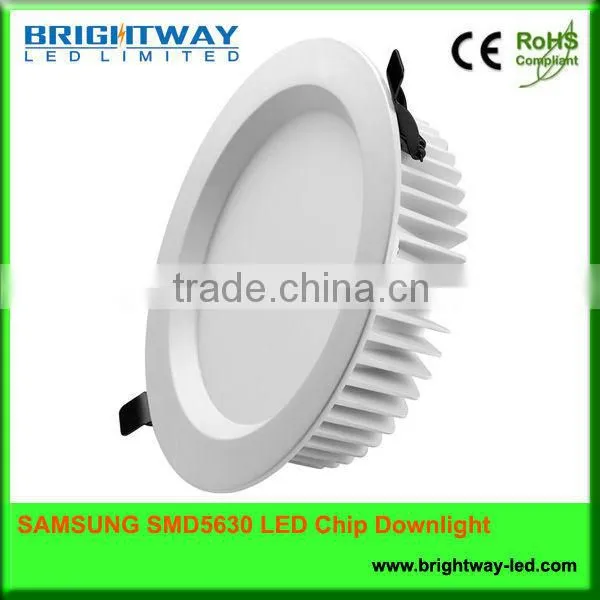

High efficiency light source, optional: SMD 5730
Wide Voltage (AC90 ~ 265V) means it can be used worldwide, broadband (50/60Hz) input, constant current drive, noflash, fast response to achieve over-current, overload, no-load protection, use safety.

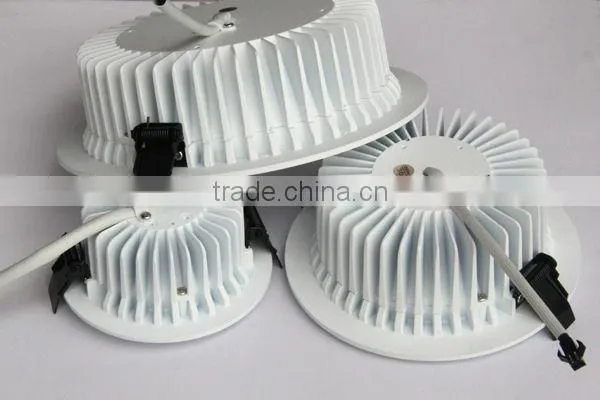

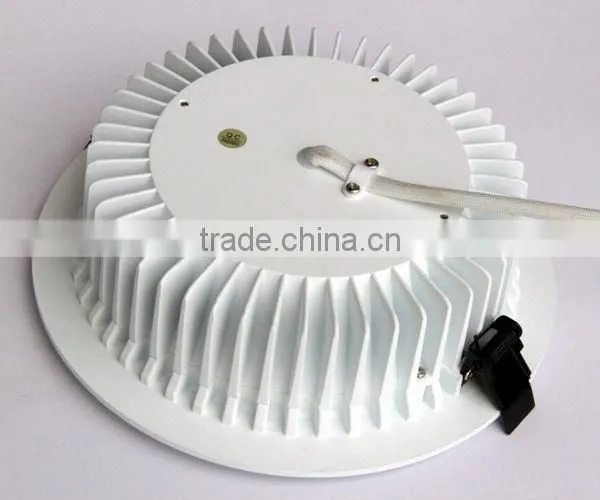

High thermal-conductivitythermal aluminum,modern design
Light efficiency, low power consumption, than the traditional halogen, incandescentenergy saving 80%,compared with 50% energy saving lamp.
No UV radiation, mercury and other harmful substances,environmental protection.
Optional color temperature: warm white, cool white.
Long life, up to 50,000 hour
Part No. |
Color Temp |
Input Volt. |
Power (W) |
LED driver |
Lumen (LM) |
CRI |
View angle |
Hole size(mm) |
Size (mm) |
BW-CL08-10W |
4000-5000K 3000-3500K |
AC 90-295V |
10W |
DC28-37V 350mA |
656 |
80 |
80 |
95 |
106*44 |
BW-CL08-15W |
15W |
DC3-34V 700mA |
1305 |
130 |
148*53 |
||||
BW-CL08-20W |
20W |
DC3-26V 700mA |
1468 |
180 |
196*53 |
||||
BW-CL08-25W |
25W |
DC3-26V 800mA |
2157 |
180 |
196*53 |
||||
BW-CL08-35W |
35W |
DC3-26V 1200mA |
2956 |
230 |
246*65 |
Demention of CL08-XX:
Packing Picture:
Quality Assurance:
Warrnty: 2 years, offer LED driver and light for replacement while they failed within warranty.
QC:
1). Inspection Materials, Aluminum alloy, Driver with strict & long time test before application, LED chips inspection for making sure even color CRI and Lumen efficiency test etc.
2). Assembling: processing is following detailed prodution instruction. The order's progress have monitored and showing in ERP system.
3). Ageing test: 24hrs ageing test before shiped out.
4). Warehouse and delivery: Docs for part No., quantity, color temperature, voltage, label etc.
Brightway LED Ltd. lights are suitable for installations in offices, schools, colleges, Universities, hospitals, showrooms, retail premises, warehouses and other areas.
Now markets in Australia, Malaysia, Germany, Italy, Austria, USA,Japan etc.
This unique and wonderful design ceiling lights would be helpful to you
