DOUBLE DIN ANDROID 4.4 CAR AUDIO CAR DVD FOR FORD FOCUS MONDEO S-max Kuga with WIFI,BT,SWC,1080P Video Playback,3G Optional
This product link consists of the following functions:
GPS+DVD+Radio+BT+AUX in/out+1080P Video Player+Steering Wheel Control+USB/SD+Camera Video Input+Two USB Interfaces+Built-in wifi+3D UI+More Languags(At the time of order,please note the language you need,default English...)
Optional: 3G Module,OBD2,IPOD,GPS MAP,DVR,ISDB-T,DVBT2(High speed),ATSC, Analog TV,CANBUS,1024*600 HD Screen,Rearview Camera
Version: Android 4.4 CPU:RK3066 1.6GHz Cortex A9 Dual-Core
Memory: DDR3 1G
Flash: 8G
Fit for :

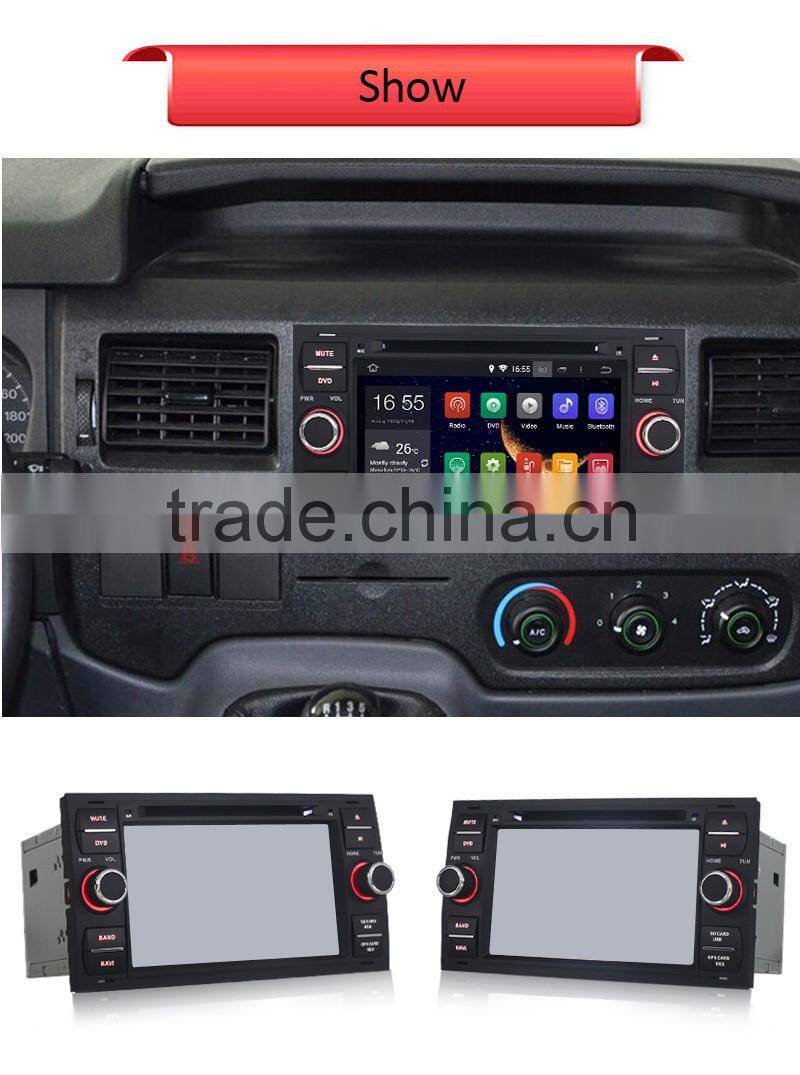

C-Max 2007-2009 Connect 2007-2009 Ford fiesta 2005 Modeo 2006-2011 Galaxy 2005-2007 Ford escape 2008-2011 Mondeo 2003-2007 S-Max 2007-2009 Transit From 2005 Focus II 2005-2007
Basic Function:
l GPS:Support series of GPS software and network map.
l DVD:Support OSD Touch Function(DVD/DIVX/MP4/MP3/MP2/VCD)
l AM/FM Radio: RDS function and support saving 30 stations.
l TV Function:Support DVB-T/ISDB/ATSC/Analog TV(option)

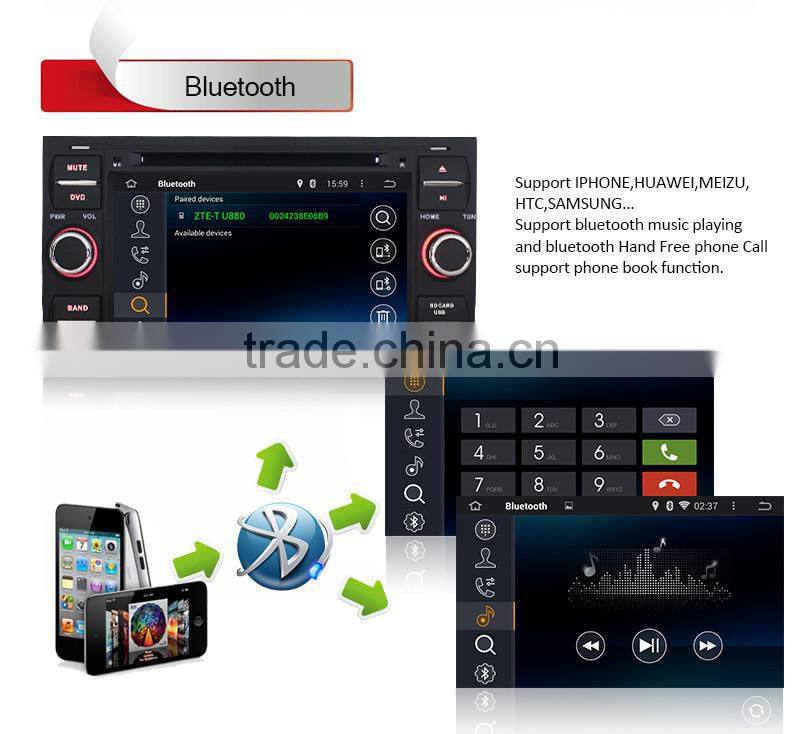

l Bluetooth Handsfree:Support Chinese/English phonebook, call log, music play, and Bluetooth data transfer.
l IPOD Interface:Support audio playing.(option)
l WIFI: Wireless internet access and hotspot sharing function.
l Movie Format:Support all Android videos, streaming media playing and 1080P video decoder, such as MPEG-1/2/4,H264,RMVB,DivX, etc
l Music Format:Support MP3,WMA,WAV,AC3,OGG,FLAC, etc, and network audio playing.
l Picture Format: Support JPEG, BMP, PNG, TIFF, etc.
l Document Format: PDF, Word, Excel; support all Android application software.
l Support external 3G Module to surf the internet.(option)
l Support Canbus function,Canbus box (option)

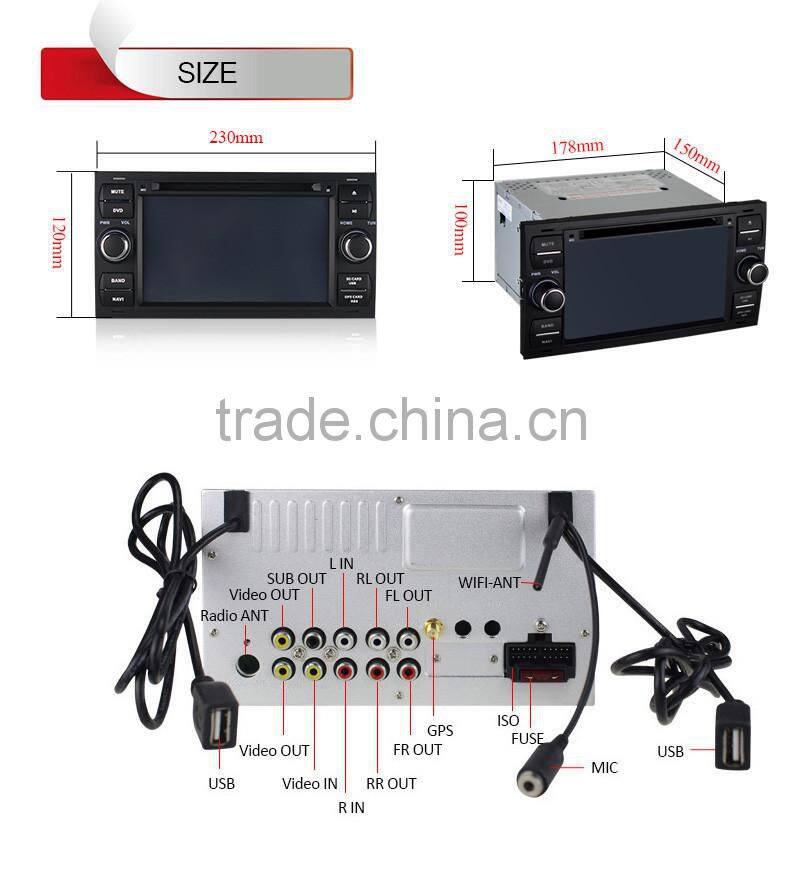

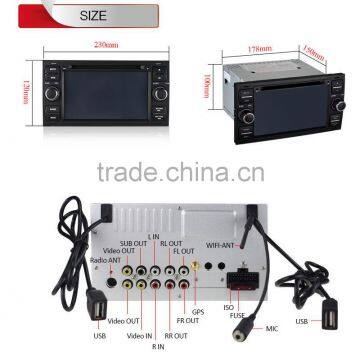

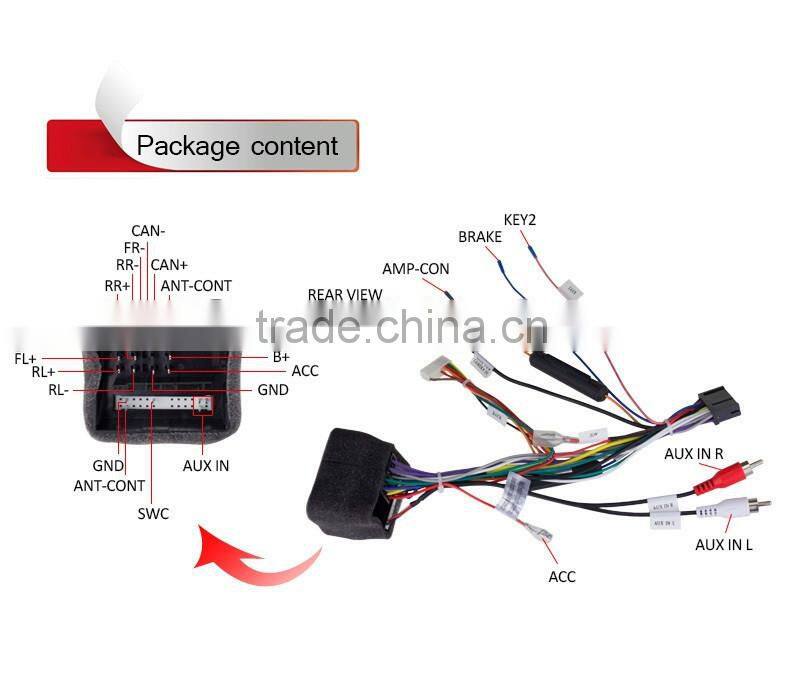

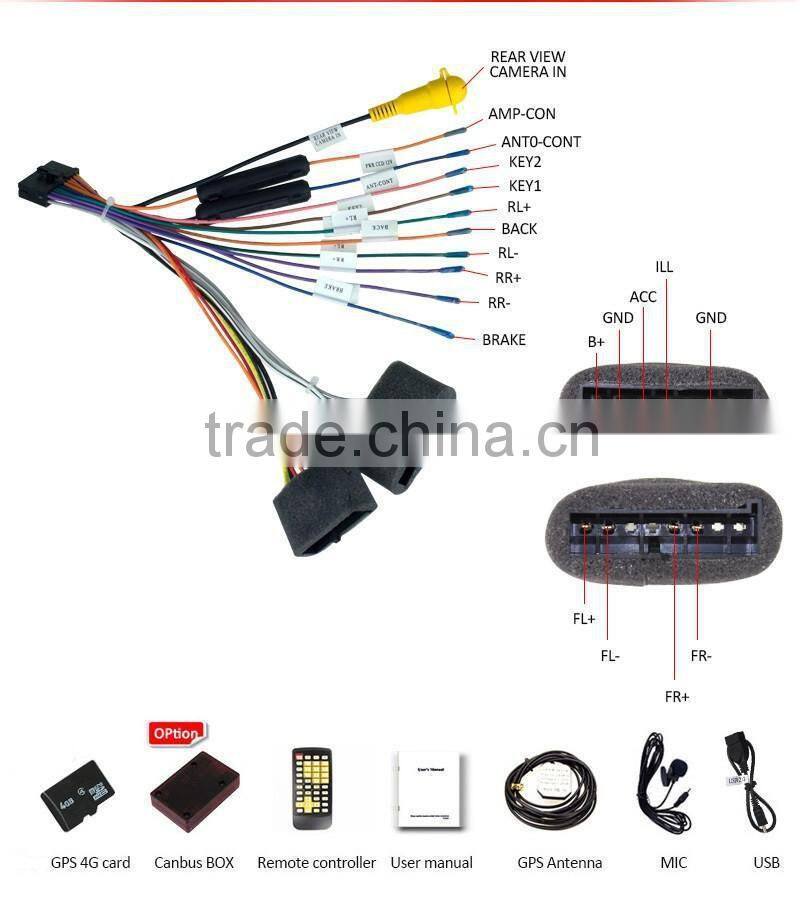

l 1 x AUX AV-out, 2 x AUX AV-in, 1 x Subwoofer audio-out, 1 x Rear Camera
l Support the rearview camera function,camera (optional)
l Support two SD ports and two USB interfaces. Under 32G SD card and under 500G USB flash disk are available.

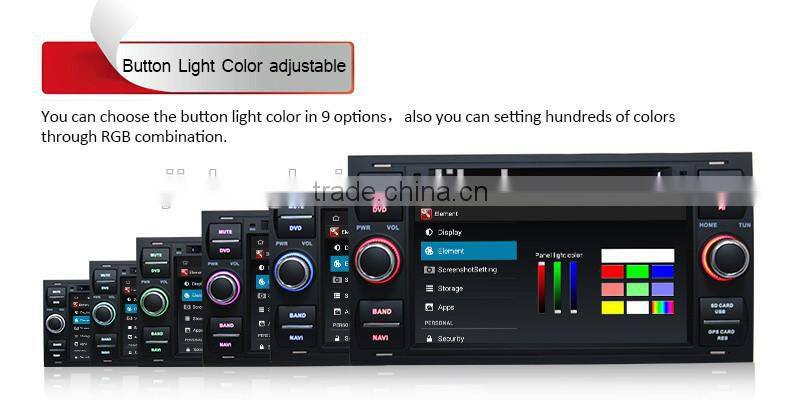

l Support RGB backlight; multiple colors are available.
l OSD Language: Support multiple languages (Chinese, English, Russian, Japanese, Portuguese, etc.)
l Automatic backlight dimming in the night makes night driving more convenient and helps to reduce visual fatigue.
l Navigation, watching movies and enjoying music can achieve synchronization.
l To freely install applications which can work in the Android 4.4 OS .
l EQ: Treble/mid/bass. Jazz, Pop, Classic, and various sound modes are available.
Special Function:

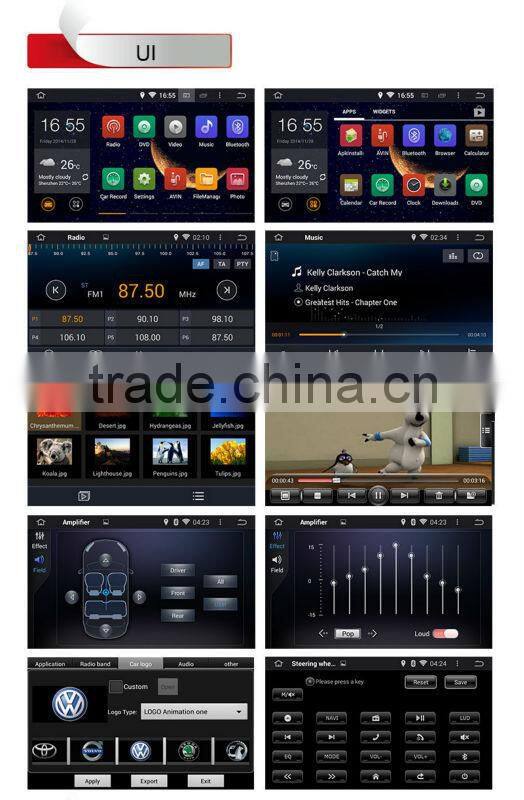

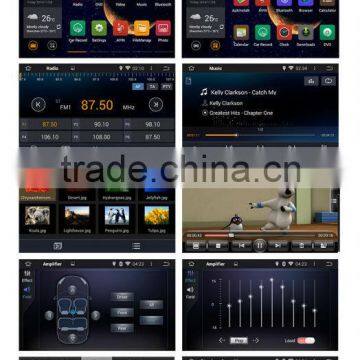

u Cool and characteristic UI interface; support Android animated wallpaper.
u Full touch screen; support all Android applications.
u Humanized music playlist makes operation more flexible; support MP3, WMA, WAV, AC3, OGG, FLAC, etc. And some audio coding, like MP1/2/3,OGG,APE,RM,SIPR,ATRC,WMA,AC3,FLAC,AAC also can be compatible.
u High-definition video decoder function, supports multiple video format, like DAT, MPG, MPEG, VOB, MP4, MOV, AVI, DVD Video, ASF, WMV, MKV, TS, RM, RMVB,etc, and various video decoder, like H.264, Xvid, MPEG2, MPEG4, VC-1, WMV9, MPEG1, H.263, Divx. Support full HD resolution (up to 1080P),and HD/standard definition such as 1360×768(768P), 1280×720(720P), 1024×576(576P)and so on also can be compatible.
u Any picture in the file can use to be boot screen or wallpaper. Support JPEG, BMP, PNG, TIFF, etc.
u Internet function can make GPS map automatically achieve time synchronization.
u RGB backlight can make multiple colors select.
u One hundred car logos are available to be boot screen or you can select custom image from SD card.
u Built-in BT can transmit OBD information. It is also available to external OBD vehicle information system.(option)
u Support vehicle traveling data recorder function, camera (optional)
u To achieve audio, video and picture in the phone synchronized playing when interconnecting Iphone4 with hosts WIFI.

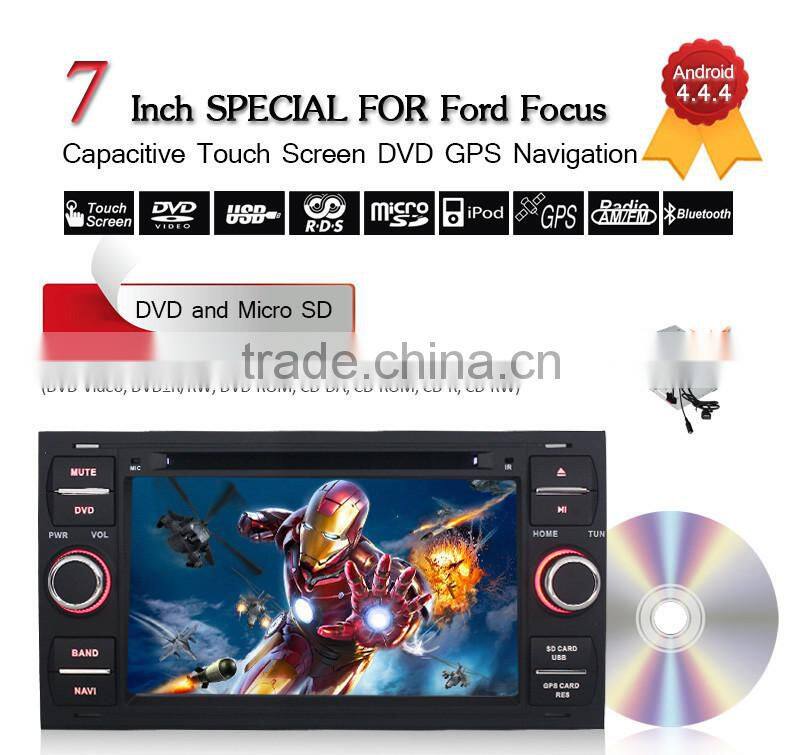

u DVD player can be operated by full-touch mode; support DVD/VCD/CD/MP5/RMVB/MP3/AVI/CD-R/WMA/JPEG, etc. Totally enclosed movement can effectively prevent dust.
u Built-in WIFI and hotspot sharing function.
u Support for 3G wireless Internet access , 3G dongle ( optional )

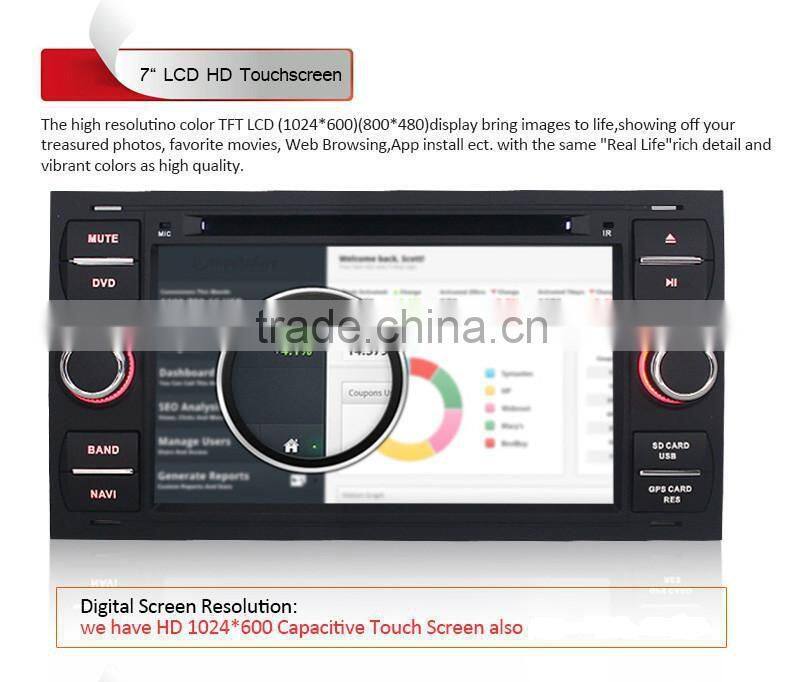

u High resolution LCD (800*480) makes character much clearer, You can also optional HD screen 1024*600(option)
u Support series of GPS software. Online map, IGO Primo, sygic , TomTom, etc are all available
Key Feature:
n Android 4.4 OS.
n Full-touch screen; support all Android applications.
n RAM:DDR3 1GB. Flash:8GB
n External OBD vehicle information system and automobile data recorder.(option)
n Built-in WIFI and hotspot sharing function.
n Built-in BT 2.0 A2DP; Chinese/English phonebook, call log, music play, Bluetooth data transfer.
n RGB backlight can make multiple colors select.
n To achieve audio, video and picture in the phone synchronized playing when interconnecting Iphone4 later with hosts WIFI.
n Support PDF, Word, Excel document format.
n Support two SD ports and two USB interfaces. Under 32G SD card and under 500G USB flash disk are available.
| Parameter | GPS | ||
| CPU | RK3066 1.6GHz Cortex A9 Dual Core | MAP | Built-in Head Unit or Memory Card |
| RAM Memory | DDR3 1GB | Supported Program | GOOGLE,SYGIC,IGO…… |
| NAND FLASH | 8GB | GPS Navl Storage | Support SD/SDHC(1G-32G) |
| DVD Load | DL-30 | Function | Music /Radio/Blueeoth/DVD/IPOD/IPHONE Can/Working Same Time While GPS Working |
| DVD Load Motor | Mabuchi Motor | Chip | U-BLXO G6010 |
| DVD Blad | Hitachi 1200XH | Display | |
| Power AMP IC | IDA7388 | Touch Screen | High Hardness,Scrape Prevent,5 Point Touch |
| Bluetooth | BC06 | Resolution | 1024×600 or 800*480 |
| Radio Chip | NXP6624 | Wallpaper | Lived Wallpater (Suppotr Customer) |
| Decoding IC | 8202VGQ | Icon Drag | Supported |
| System Parameter | Software applications | ||
| Video Dedoding | All Format | File Move | Support Different Storage File Copy and Movement |
| Operate System | Android 4.4 | File Delet | Supported |
| Start-up Time | Basic is about 5 S,Most is about 25S | Android App Install | Supported |
| Working Tempertarure | -20°C-----+70°C | Malnly Functlon | Support Android App Install,Delet |
| Storage Temperature | -30°C-----+80°C | Desktop App | Support On-line Weather Forcast and Lived Wallpaper |
| Standby Current | <10MA | Input Method | google,Sugou… |
| Working Voltage | 10.8~14.8V | IM | MSN,SKYPE,QQ,Facebook |
| 3D Games | Support Angry Bird,Cut Apple… | ||
| Audio/Video | Net Work | ||
| Vldeo Format | MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,VP8,AVS Stream…Al Foramt | 3G | Support 3G Network and Share Moblle WIFI hotspot |
| Audio Format | MP3,WMA,AAC,RM,LFAC…All Format | WIFI | Built-in WIFI module |
| Video Input | One Channe AUX Video Input One Channe Rear Camera Vidio Input |
||
| Video Output | Two Channe AUX Video Putput | DVR | Built-in DVR System,Connect USB Camera Can Take Video Directly |
| Audio Input | One Channe AUX Audio Input | Parking Rear Video |
Quick Switch Interface about 25 time |
| Audio Output | Two Channel AUX Audio Output One Channel Bass Audio Output |
Steerling Wheel Control |
21 button For User Do Study |
| EQ | Treble/Middle/Bass Theree Channel Output | TPMS | Bluetooth Receive the Air Pressure and Temperature Testing Every Time |
| Power Output | 4*45W | OBD2 | Bluetooth Reveive Parking Information,like motor change speed,Oil consumption |
| Signal-Noise Ratio | >90dB | ||
| System Language | |||
| OSD Language | Chinese,English,Russian,Spanish,Sveska,Turkish,Slovencina,France,Dutch,Ceaky,Italy,Portuguese… | ||
| GPS Language | GPS Language is Depened on the GPS Map Software Program | ||
Delivery time: 1-3 working days (sample order), 5-15 days(mass order)
Car DVD has one year factory warranty
