Home > Products > Sewing machine > industrial computerized sewing machine
industrial computerized sewing machine
- 1000 Set / Sets per Month
- QINGDAO
- T/T Credit Card PayPal
- UT1800S non woven fabrics Bed Sheet Four-Piece Suit Automatic ultrasonic quilt making machine with vertical cutte
- 3000mm 2800mm 2400mm Wide Nonwoven Fabric Rolls ultrasonic quilting bonding welding machine
- UT3000S ultrasonic fabric embroidery quilt quilting sewing machine with cross cutter
- UT1800S Fabric Roll to Reel Automatic Synthetic Mattress Blanket Ultrasonic Welding Bonding Machine with Cutter
- UT3000S CE certificate approval no needle free Textile down comfort blanket bedcover ultrasonic quilting machine
- Hot selling automatic industrial quilt sewing machine
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | BT |
Model Number: | quilt sewing machine | Max Sewing Speed: | 2200RPM | Max Sewing Thickness: | 800G/m2 |
Voltage: | single phase | Power(W): | 1.5KW | Dimension(L*W*H): | 3.8*5.00*1.67m |
Weight: | 1.2KG, 1.3KG | Certification: | ISO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
industrial computerized sewing machine
industrial computerized sewing machine techncial specifications:
Machine Size | 3.8*5*1.67 |
Max working width | 2.8m |
Max size of a quilt | 2.83*3.2m |
Max size of dropping needle | 2.63*3.0m |
Needle Speed | 2200RPM |
Max quilting thickness | 800G/m2 |
Min quilting thickness | 20G/m2 |
Weight | 1.3KG |
Power | 1.5KW |
Main shaft motor | strpper motor |
Stitch length | 2-7mm |
Rotary Hook | big rotary hook |
industrial computerized sewing machine techncial characters:
1. Any pattern auto-quilting;
2. Quilting with equal stitch. It is to amend stitch and speed;
3. Clockwise and counterclockwise quilting and empty forward or backward or thread buttom is provided;
4. The needle automatically stops at high position whrn the machine stops;
5. It has the fuction of pattern tracing to make the needle position quickly;
6. It has the function to collect statistics of work and time;
7. It is equipped with USB which can store more than 200 designs;
8. The speed of main shaft has been raised and the work efficiency has been increased;
9. Application of Big rotary hook and the shuttle core is two times larger than that of small one;
10. The system has the function of testing, so as to have convenient maintence;
11. Paterns have the function of rotation and overturn;
12. Servo motor, low noise;
13. Frenquency convertor; stable performance, high precision, short-circuit protection and over-current-protection;
14. Handpiece: fast moving of lifting needle, stop running in fixing position and height of foot presser can be adjusted.
industrial computerized sewing machine advantage
1.automatic quilting accroding the patterns.
2.The pressure foot height can be adjusted according to the material thickness, the thickness of up to 70mm.
3.Strong professional Quilting computer functions, such as synchronized zoom, needle step size selection, trimming, etc..
4.Figure has the production quantity, cutting length can be set in advance in computer, transverse cutting and vertical cutting, a molding products, can be directly suture edge.
5.Any-pattern Auto-Quilting,Equal-Distance Needle Quilting.
6. Easy modification operation of needle distance and speed.
7. clockwise-counterclockwise quilting and empty forward or backward or thread-through button is provided.
8. the needle automatically stops at high position when the machine stops.
9. the machine stops when any broken thread is automatically detected.
10. Quilting condition and operation indication are shown in real time.
11. It automatically returns to original point.
12. It has the function of pattern tracing to make the needle position quickly.
13.It has the function of pattern browsing.
14.It has the function of work-piece and time statistics.
15.Through pattern side setting up ,it can automatically enlarge or reduce patterns.
Application of industrial computerized sewing machine
Dovet cover,silk quilt,sleeping bag,cushion or other quilts in home textile or bedclothing company.

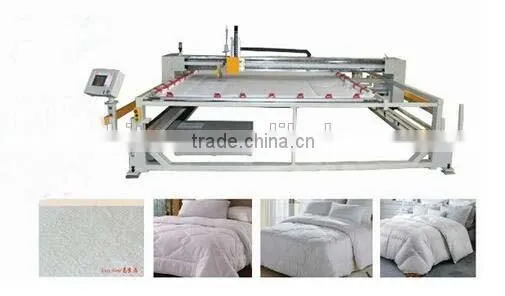

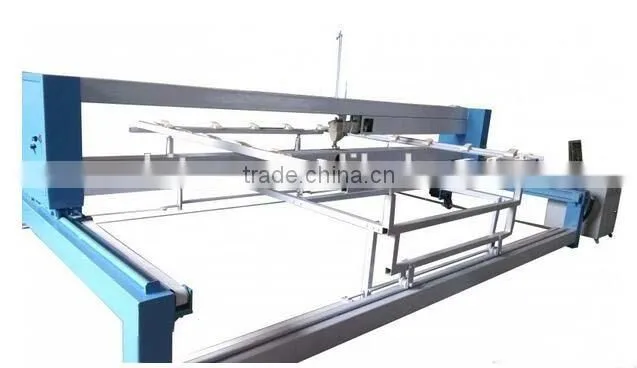

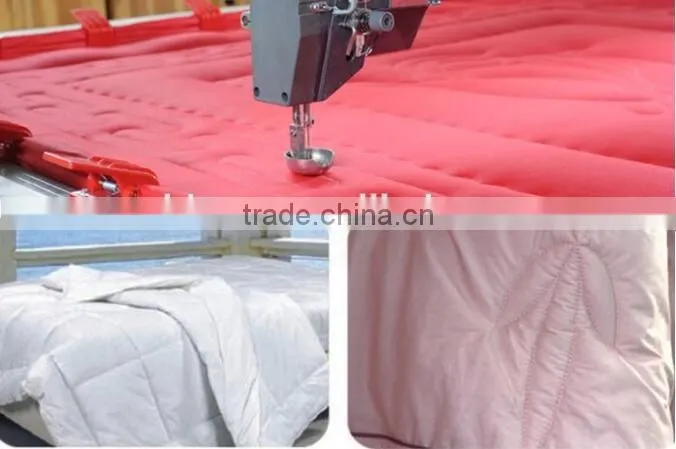

industrial computerized sewing machine detail picture
packaging and shipping
Packing:wooden packing for export
Shipping:by sea,by air and by express
our service
1.Control from production process
2.Control from material
3.Inspect the goods before sending shipment.
- Promise Punctual delivery time (We put your order into our tight production schedule)
- Take pic for customer to confirm before your goods packed.
- We respect your feed back after receive the goods.
- We promise all spare parts available in lifetime use.
- We lorge your complain within 48hours.
Professional sales:
- We value every inquiry sent to us, ensure quick competitive offer.
- We cooperate with customer to bid tenders. Provide all necessary documents.
- We are a sales team, with all technical support from engineer team.
