Self Propelled 8 M Scissor Lift And Skid Platform

US$ 10,000 - 14,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

SJYZ0.5-8

Jinan Sino Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao.Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name NR

Model Number SJYZ0.5-8

Lift Mechanism Scissor Lift

Lift Drive / Actuation Hydraulic

Power 380v

Rated Loading Capacity 500kg

Min. Lifting Height 8m

Max. Lifting Height 9.7m

Table Size 1.65*0.75m, 1650*750mm

Overall Dimensions 1.87*0.9*1.41m, 1870*900*1410mm

Weight 880kg

Certification CE ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

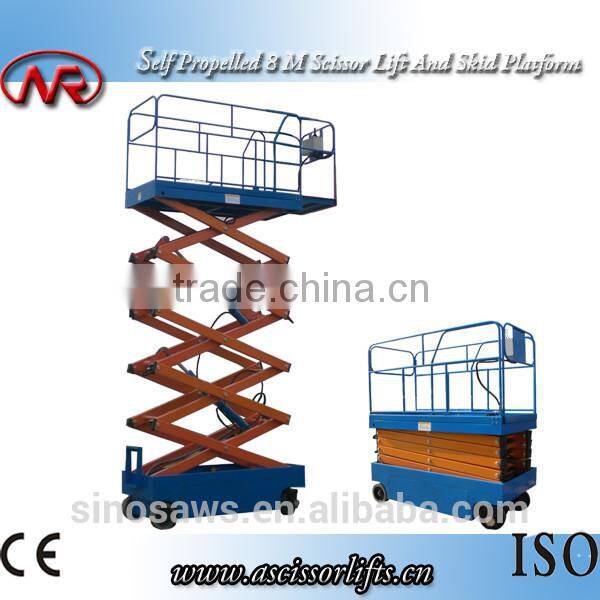

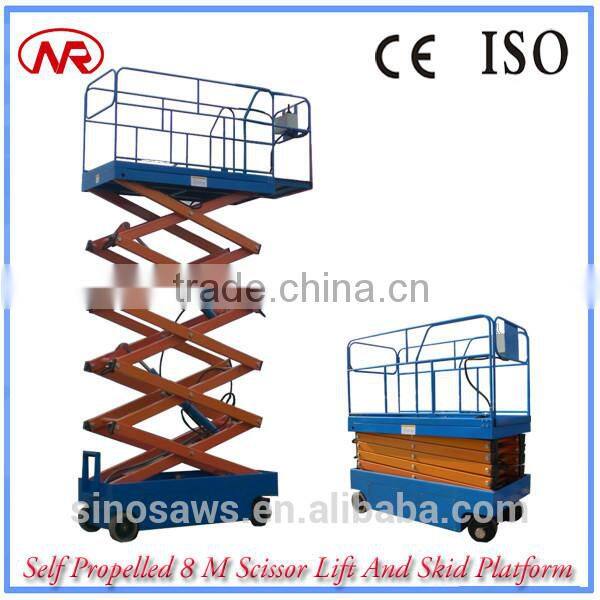

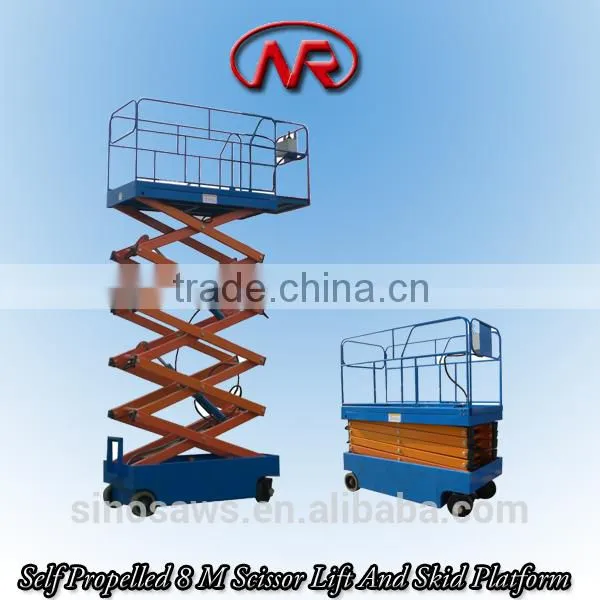

Self Propelled 8 M Scissor Lift And Skid Platform

A. 2-wheel hydraulic motor drive, Automatic brake no matter what the road would not guarantee the safety ofcar wheels;

B. 2-wheel steering: Hydraulic rotating flexible

C. High/low travel speed: A button to complete the conversion in the control button.

D. Extension deck: Easy expansion to expand the work area and corner of wall use convenient

Model	Load Capacity	Table Size	Lifting Height	Working Height	Overall Dimensions	Dry Weight
SJYZ0.3-4	300Kg	1500×750mm	4M	5.7M	1.70×0.90×1.10 m	550Kg
SJYZ0.3-6	300Kg	1500×750mm	6M	7.7M	1.70×0.90×1.30 m	700Kg
SJYZ0.5-6	500Kg	1500×750mm	6M	7.7M	1.70×0.90×1.30 m	780Kg
SJYZ0.3-8	300Kg	1650×750mm	8M	9.7M	1.87×0.90×1.41 m	800Kg
SJYZ0.5-8	500Kg	1650×750mm	8M	9.7M	1.87×0.90×1.41 m	880Kg
SJYZ0.3-8II	300Kg	1800×1200mm	8M	9.7M	2.30×1.50×1.42m	1240Kg
SJYZ0.5-8	500Kg	1800×1200mm	8M	9.7M	2.30×1.50×1.45m	1400Kg
SJYZ0.8-8	800Kg	1800×1200mm	8M	9.7M	2.30×1.50×1.54m	1480Kg
SJYZ0.3-9	300Kg	1800×1200mm	9M	10.7M	2.30×1.50×1.50m	1000Kg
SJYZ0.5-9	500Kg	2000×1200mm	9M	10.7M	2.50×1.50×1.55m	1300Kg
SJYZ0.3-10	300Kg	2120×l200mm	10M	11.7M	2.60×1.50×1.55m	1400Kg
