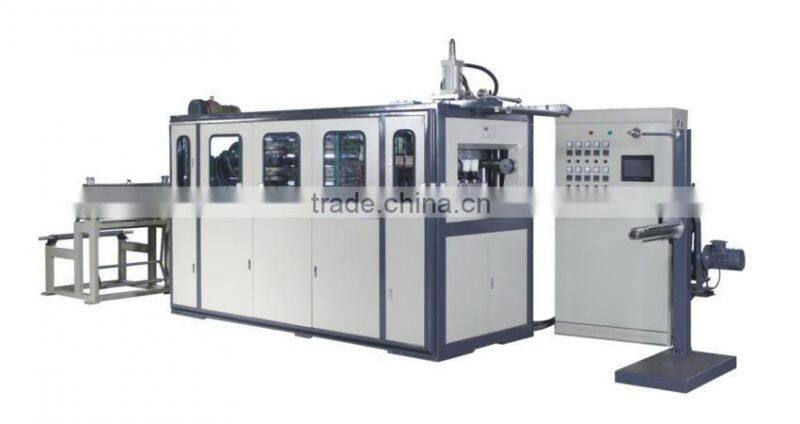

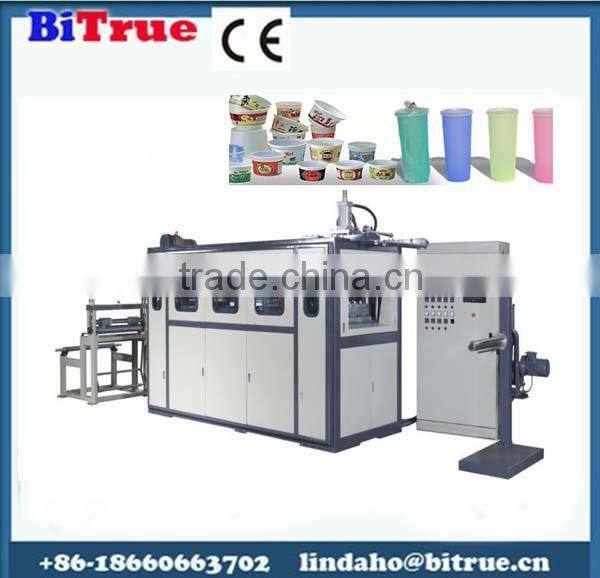

process of plastic cup making
process of plastic cup making product description
machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled bye micro PLC. It is operates with man-interface, which can works all bye itself. It combines the material feeding, heating, drawing, forming, cutting and transporting into one process.
process of plastic cup making Main parameter
model: | BT-660 | BT-700 | |
Sheet size (mm): | width: | 500-710 | 500-760 |
Thickness: | 0.3-2 | 0.3-2 | |
Maximum forming area (mm): | 660×350 | 700×350 | |
Maximum forming depth (mm): | 130 | 160 | |
work efficiency (time/min): | 8-35 | 8-35 | |
power: | AC380/220V87KW(max) | AC380/220V120KW(max) | |
Gas consumption (m3/min): | 2.5(External air source) | 2.5(External air source) | |
working air pressure (mpa): | 0.6 | 0.6 | |
Dimensions(mm): | 7600×1320×2600 | 8200×1320×2600 | |
weight(kg): | 4500 | 5500 | |
process of plastic cup making function
1.The whole machine is equipped with automatic feeding,sheet extrusion,plasticizing forming and auto continuous production line of integrative recycling for scraps and waste material
online smash.
2.It is available for the material of PP,PE,HIPS,GPPS sheet extrusion plasticizing forming. The extrusion screw adopts the largest diameter ratio, using advanced hydraulic pressure high speed net changing fitting without stopping the machine, brighter pressing roller surface than mirror and even temperature of roller surface which make the sheet bright and even thickness.
3.The forming device adopts the equipment of hydraulic four-column, with the advantage of running stability, little noise and strong clamping force. The machine has compact structure, short production process, finished products with high grade and in line with the national health standards.
4.The whole machine is designed with high automation, electromechanical and gas hydraulic integration, PLC control, rapid production speed. It can produce various parts by installing different moulds to reach multi purposes.
5. The production line will highly reduce the labor force and save production cost and the integration of scraps and waste material recycling.
process of plastic cup making main feature
1. All processing steps be done automatically , which saves labor and high efficiency .
2. This machine operation is convenient and stable performance .
3. One machine can make different products, just change the mould, It has multifunction .
4. Machine can be customized according to customer requirement .
5. Controlled by Touch Screen with Siemens PLC.
process of plastic cup making
process of plastic cup making product use:
This machine is suitable for producing all kinds of cups, boxes, bowls and other thin-walled plastic container, if cold cup, milk cup, ice cream cups, disposable drinking cup, bowl of instant noodles, snack boxes, food boxes, and so on.
process of plastic cup making sample
Packing and shipping
