Touch Screen Car Dvd Player for vw Touran/passat/golf/polo Gps Car Radio 3G WIFI
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Screen Size:
Other, 6.2"
Placement:
Dashboard
Combination:
Bluetooth-Enabled, Built-in GPS, CD Player, MP3 / MP4 Players, Radio Tuner, Touch Screen, Other, Bluetooth-Enabled, Built-in GPS, CD Player, MP3 / MP4 Players, Radio Tuner, Touch Screen, 3G
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7 Inch Headset Car Dvd Player for VW Touareg Car Radio for VW Touareg Car GPS 3G CANBUSNegotiableMOQ: 1 Piece -
Car Factory Customised Car Dvd Gps for Ford Focus (2004-2008) Navigation System With 3G/MIC/TV for Ford FocusNegotiableMOQ: 1 Piece
-
Car Factory Customised Car GPS for Ford Series BT/USB/SD/CANBus/3G/WIFI/Radio Stereo for Focus MondeoNegotiableMOQ: 1 Piece
-
Car Factory Car Vedio System With GPS for BMW 3 Series /3G/WIFI/CANBUS/BT/TMC/Radio for BMW 3 Series Auto Air ConditionerNegotiableMOQ: 1 Piece
-
Car Vedio System With GPS for BMW 3 Series /3G/WIFI/CANBUS/BT/TMC/Radio for BMW 3 SeriesNegotiableMOQ: 1 Piece
Screen Size
Other, 6.2"
Placement
Dashboard
Combination
Bluetooth-Enabled, Built-in GPS, CD Player, MP3 / MP4 Players, Radio Tuner, Touch Screen, Other, Bluetooth-Enabled, Built-in GPS, CD Player, MP3 / MP4 Players, Radio Tuner, Touch Screen, 3G
Certification
CE FCC RoHS
Place of Origin
Guangdong, China
Brand Name
Galawin / Jia Long Hui
Model Number
JWD9206C Resistance Screen
Warranty
24 Months
touch screen car dvd player for vw touran/passat/golf/polo gps car radio
Product Description
JWD9206C For Volkswagen
Golf 5/6 (2003-2010)Passat B6 (2005-2011) B7
Polo (2009-2010)Passat CC(2008-2011)
Jetta(2005-2012)Tiguan(2007-2012)
Touran(2003-2011)Eos(2006-2011)
Sharan(2010-2011)Scirocco(2008-2011)
Transporter(T5)(2010-2011)
Caddy(2007)Scirocco (2008-2010)
Bora (2009-2010)Beetle(2012)
Seat Leon(2006-2010)Seat Toledo(2004-2010)
Seat Alhambra(2010)Seat Altea(2006-2009)
SKODA Octiva 2008-2010

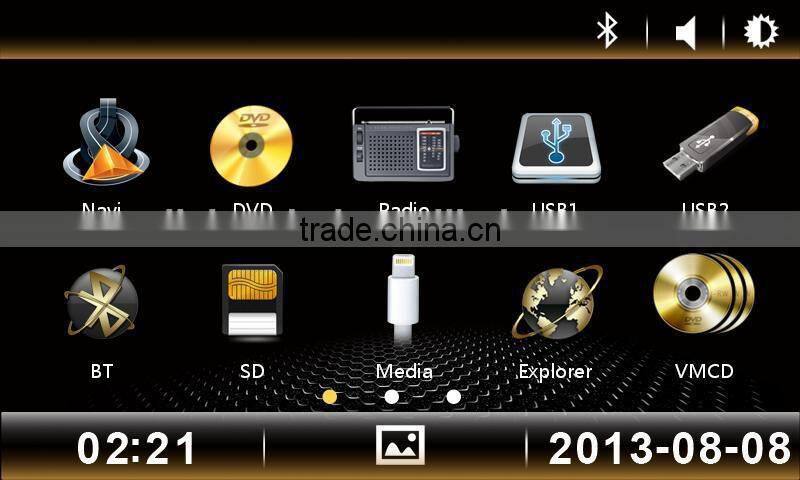

Main functions:
1. 800*480 digital(resistive/ capacitive)touch screen

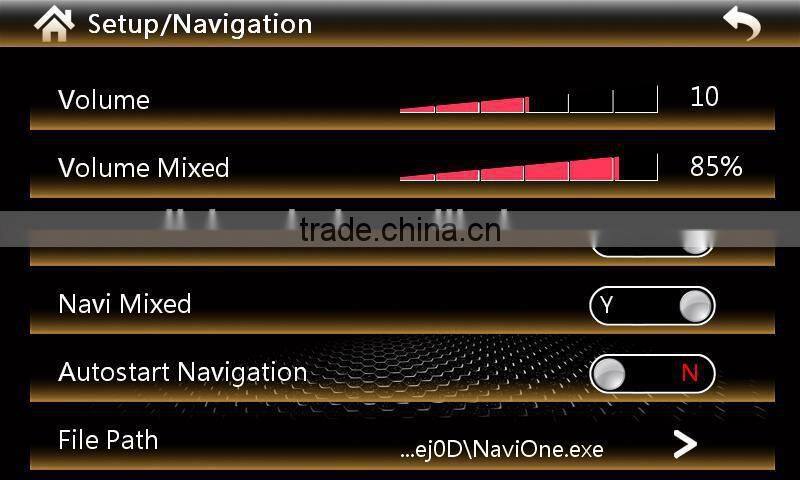

2. Built-in GPS/ Dual Zone system

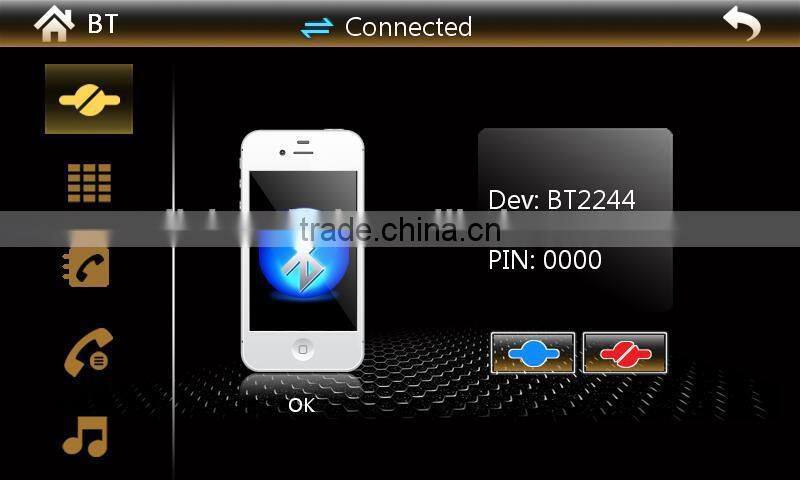

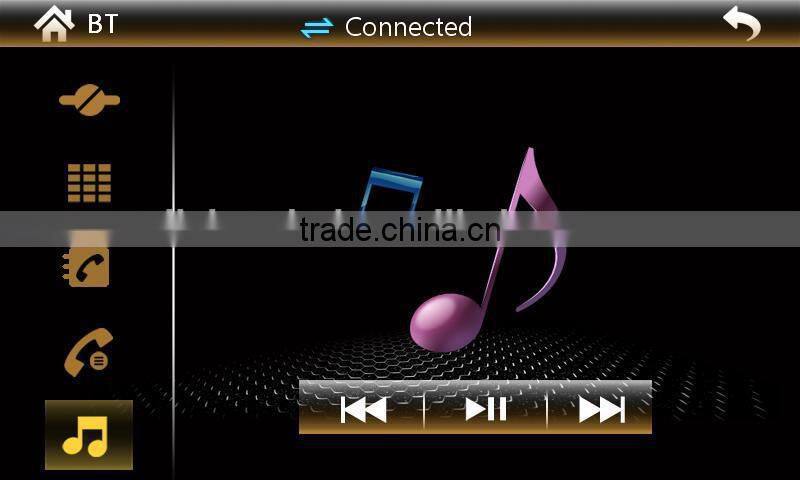

3. Built-in Bluetooth
4. SD card/ File management
2. Built-in GPS/ Dual Zone system
3. Built-in Bluetooth
4. SD card/ File management

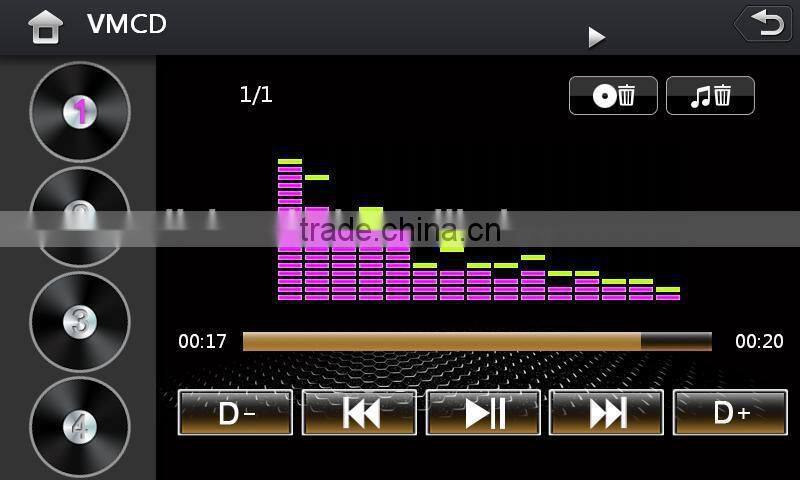

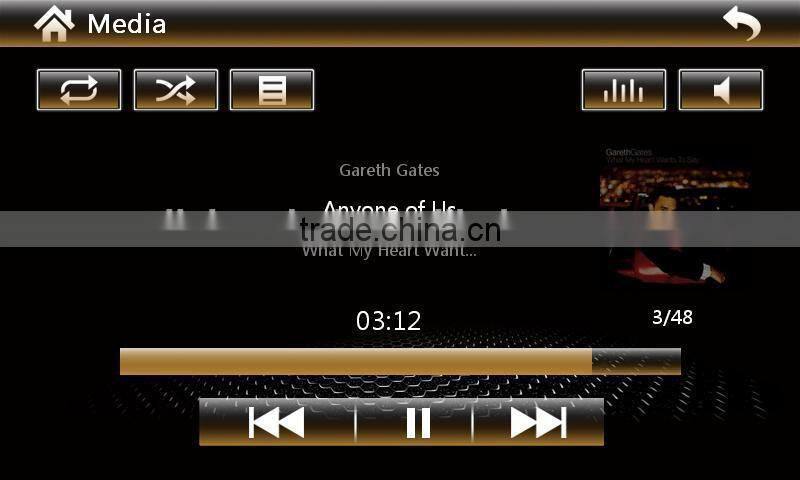

5. Compatible with mp3/mp4/DVD/VCD/CD/CD-R/Divx etc
6. Can bus/Steering wheel control
7. Built-in TV tuner
8. V-6 disc CDC memory
9. ISDB-T/ TMC (Optional)

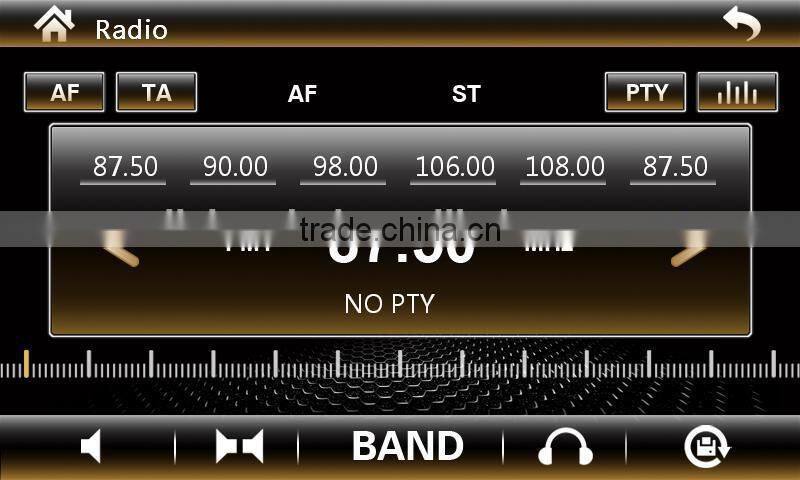

10. FM/ AM/ RDS receiver
11. 3G / Wi-Fi interface
12. USB/ Avin connector
13. Video input/output 4*45W amplifier
6. Can bus/Steering wheel control
7. Built-in TV tuner
8. V-6 disc CDC memory
9. ISDB-T/ TMC (Optional)
10. FM/ AM/ RDS receiver
11. 3G / Wi-Fi interface
12. USB/ Avin connector
13. Video input/output 4*45W amplifier
14. Auto rear viewing/ DVR function
| Head Unit Specification | ||
| description - parts name | Our head unit specification | supplier name |
| DVD Mechanism | DL 30 | CorePine |
| Pick up | H-1200XH | hitachi |
| Panel resolution | 800*480 pixels | Hannstar |
| Main Unit MCU | MCU-MN101EF51A | Panasonic |
| Radio tuner | SI4755/4757(DSP/RDS) | Silicon LABS |
| TV tuner(external) | XinFa-6AC , QSD-MT-S77 NXP | XinFa , QSD NXP |
| Chip | MTK3360 | MTK |
| Bluetooth module brand | MT6622N | MTK |
| Panel | Hannstar 6.2/7/8" | Hannstar |
| Touch panel | four-wire Electric Capacitive Touch Panel | |
| GPS Module Specification | ||
| Features | ||
| GPS | MT3336N | MTK |
| Language | English/Arabic/russia/hebrew, Total 22 kinds of language | |
| System Parameter | ||
| Basic Frequency | 800MHZ+250MHZ DSP | MTK |
| Key Chip Model | Sirf Atlas IV MT3336N | MTK |
| Memory | 256MB DDR 3 SDRAM | SK HYNIX/SAMSUNG |
| Storage Space | 128MB NAND FLASH (Can be expanded to 16GB) | TOSHIBA |
| Navigation Software Storage | SD Card (Support SDHC)/Mini-TF Card | |
| Path of Memory Card | Storagecard | |
| Support Audio Type | MP3/PCM/WMA | |
| Support Video Type | mp4/ wmv/mov/ avi/ 3gp | |
| Video Decoding Performance | QVGA>25 frame/s | |
| GPS COM | COM1/ COM2 | |
| GPS Baud Rate | 9600 bps | |
| Operation System | WINCE 6.0 | |
| Software Compiler Type | ARMV4I | |
| Basic Parameters | ||
| Video Output Type | Compound Video Frequency(CVBS) | |
| Video Out Voltage | 1.0Vpp/75Ω | |
| Screen Resolution | 800*480 (digital panel) | |
| Sound Output | Four-Channel CD Stereo Soundquality | |
| Voice of Power | ||
| Weight | ||
| Control Voltage | DC 9-16V | |
| Temperature Range | Commercial Standard: -20℃ —— +70℃/ Industry standard: -40℃----+85℃ | |
| Storage Temperature Range | -40℃ —— +100℃ | |
| Working Humidity Range | 45% —— 80%RH | |
| Storage Humidity Range | 30% —— 90%RH | |
| GPS Hardware Parameter | ||
| Chips Set | Sirf Prima | |
| Frequency | 1.57542GHZ | |
| C/A Code | 1.023MHZ | |
| Channel | 64 Channels | |
| Tracking Sensitivity | -161dBm | |
| Positioning Accuracy | 10m, 2D RMS 5m, 2D RMS, WAAS enable |
|
| Rate | 0.1m/s | |
| Data Updating Rate | 1HZ | |
| Re-acquisition Time | average 0.1s | |
| Hot Starting Time | average 1s | |
| Warm Starting Time | average 32s | |
| Cold Starting Time | average 38s | |
| The Most Highly Targeted | 18,000m | |
| Maximum Rate | 515m/s | |
| Acceleration | < 4g | |
| External GPS Antenna Type | EXternal Active Ceramic Antenna | |
| Antenna Gain | 26.7dB | |
| Antenna Voltage | 3.0±0.3V | |
| Antenna Current | 12mA~16mA | |
| Features | Yes/No | |
| Touch screen | Yes | |
| Contrast | Yes | |
| Clock | ||
| Blackout Function | Yes | |

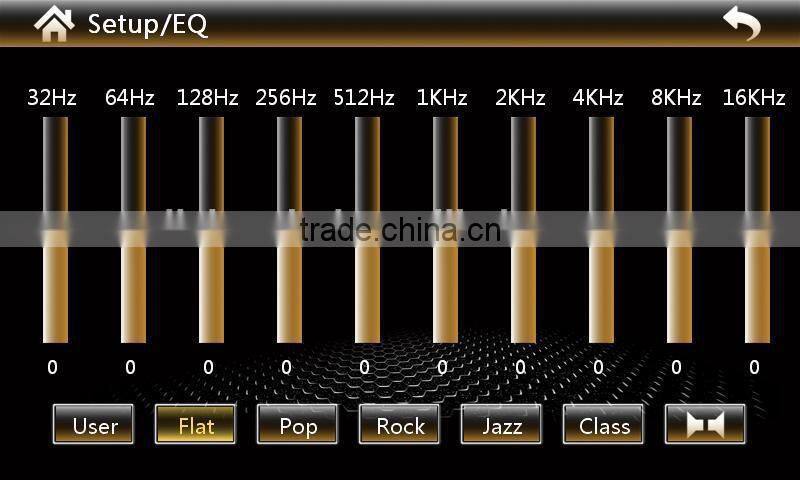

| Equalizer | ||
| Bass (Eq) - Center Freq. / Gain / Q. Factor | Yes | |
| Middle (Eq) - Center Freq. / Gain / Q. Factor | Yes | |
| Treble (Eq) - Center Freq. / Gain | Yes | |
| User EQ. | Yes | |
| Balance | Yes | |
| Fader | Yes | |
| Amplifier | ||
| Number of channels | 4 | |
| Max. Power (Watt) | 45W | |
| RMS power (Watt) - Measured | THD 10% at 14.4V 20W | |
| Standy-by Consumption @ 12,5V (ignition ON)/(ACC on) | <1000mA | |
| Standy-by Consumption @ 12,5V (ignition OFF)/ (ACC OFF) | <5mA | |
| Inputs | ||
| Antenna | ISO | |
| USB (connection type) | Yes | |
| Yes | ||
| SD Card slot for media playback | Yes | |
| Yes | ||
| Yes | ||
| SD Card slot for navigation | Yes | |
| Yes | ||
| Yes | ||
| Video/Audio-In | Yes | |
| Video/Audio-In | Yes | |
| Rear-View Function | Yes | |

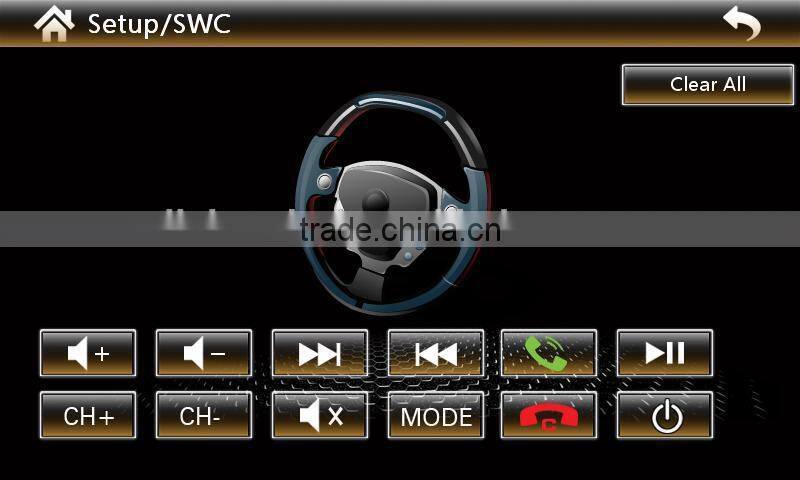

| SWC (Steering Wheel Control) | Yes | |
| iPod (Control) | Yes | |
| iPhone (Control) | Yes | |
| ISDB-T | Option | |
| DVB-T | Option | |
| Can bus | yes | |
| 3G module | yes | |
| Radio | ||
| AM | AM(530KHZ-1710KHZ) | |
| FM | FM(87.5MHZ-108.0MHZ) | |
| ORIT (RUSSIA) | ORIT( 65MHz-74MHz) | |
| Number of Memories | AM 12 | |
| FM 18 | ||
| Radio Data System (RDS) | Yes | |
| Radio Scan | Yes | |
| Preset Scan | ||
| Interference suppression | Hi-Cut Control | |
| De-emphasis | 75u | |
| FM THD+N (%) @ 1kHz | <1 | |
| Stereo/Mono | Auto | |
| FM SNR (dB) | >55 | |
| Crosstalk @ 1kHz (dB) - Seletive | >55 | |
| Sensitivity (dBuV @ SNR>30dB) | <15 | |
| Frequency response (Hz) -3dB | 100-10000(Hz) | |
| CD/DVD-Player | ||
| Shock Proof with Buffer | Software - Delay | |
| Shock Proof with Rubber | Gel Shock absorber | |
| Load System | Electric | |
| Buffer Time | <12S | |
| Conversor Analogue Digital | ||
| Audio 24bits | ||
| DVD Zone | ||
| CD-Repeat | Yes | |
| Track-Scan | Yes | |
| Pause | Yes | |
| Shuffle or Random | All | |
| Disc Name | Yes | |
| THD+N (%) @ 1kHz | <0,3 | |
| SNR | >60 | |
| Crosstalk @ 1kHz (dB) - (normal,non-Seletive) | >60 | |
| Crosstalk @ 1kHz (dB) - (normal,non-Wide) | >60 | |
| Crosstalk @ 10kHz (dB) - (normal,non-Seletive) | >60 | |
| Frequency response (Hz) -3dB | 20-18.000(Hz) | |
| USB | ||
| THD+N (%) @ 1kHz | <0.3 | |
| SNR (dB) | >60 | |
| Crosstalk @ 1kHz (dB) - (normal,non-Seletive) | >55 | |
| Crosstalk @ 10kHz (dB) - (normal,non-Seletive) | >50 | |
| Frequency response (Hz) -3dB | 20- 18.000(Hz) | |
| Bluetooth | ||
| Version | 2.0 | |
| Bluetooth Profile | Yes | |
| Microphone | Yes | |
| Functions "Accept" Key | Yes | |
Accessories:
AC cable
Power cable
Remote Control
USB cable
MIC
GPS Antenna
USB 3G cable
User Manual
MOQ: 4pcs
Optional :
1) Capacitive screen
2) Android 4.4 OS
Our Services
Car DVD has two year factory warranty
