• Product advantages:
-high strengh steel struction.
-Lift Up,Stop and Lower could be realized at each control point. The lift platform could stop at the accurate loaction point.
-Smooth working condition,high load capacity, safe and reliable. The overload protection devices are available and meanwhile the hydraulic system has the anti-drop function when any failure happens.
• Power source:
-Power Supply is from local power sources.
• Applications:
-It is drived by the electric and hydraulic system, the lift platform is lifted up and drops down along the track;It is installed in the pit or the ground floor to convey the goods from one floor to another and convey the goods from one working level to another.
• Specifications:
Model # |
Load Capacity |
Table Size |
Lifting Height |
No-working |
Overall Dimensions |
Motor Power |
SJG2-3.5 |
2T |
1.8×1.2M |
3.5M |
680MM |
1.8×1.2×0.68M |
3KW/380V |
SJG1-6 |
1T |
1.9×1.1M |
6.0M |
1100MM |
1.9×1.1×1.10M |
3KW/380V |
SJG2-6 |
2T |
2.0×1.3M |
6.0M |
1200MM |
2.0×1.3×1.20M |
4KW/380V |
SJG1.5-0.8 |
1.5T |
2.0×1.5M |
0.8M |
500MM |
2.0×1.5×0.50M |
3KW/380V |
SJG1-4.3 |
1T |
2.0×1.8M |
4.3M |
800MM |
2.0×1.8×0.80M |
4KW/380V |
SJG2-6 |
2T |
2.0×2.0M |
6.0M |
1030MM |
2.0×2.0×1.03M |
4KW/380V |
SJG3-2.4 |
3T |
2.0×2.0M |
2.4M |
660MM |
2.0×2.0×0.66M |
4KW/380V |
SJG2-5 |
2T |
2.1×1.2M |
5.0M |
870MM |
2.1×1.2×0.87M |
4KW/380V |
SJG1-4.5 |
1T |
2.1×1.5M |
4.5M |
800MM |
2.1×1.5×0.80M |
3KW/380V |
SJG5-6.5 |
5T |
2.2×1.6M |
6.5M |
1280MM |
2.2×1.6×1.28M |
5.5KW/380V |
SJG3-6.5 |
3T |
2.2×1.9M |
6.5M |
1520MM |
2.2×1.9×1.52M |
5.5KW/380V |
SJG2-5.15 |
2T |
2.3×1.4M |
5.1M |
870MM |
2.3×1.4×0.87M |
4KW/380V |
SJG2-1.3 |
2T |
2.3×2.0M |
1.3M |
400MM |
2.3×2.0×0.40M |
2.2KW/380V |
SJG0.8-3.5 |
0.8T |
1.8×1.2M |
3.5M |
800MM |
1.8×1.2×0.80M |
2.2KW/380V |
SJG2-0.5 |
2T |
1.8×1.6M |
0.5M |
440MM |
1.8×1.6×0.44M |
2.2KW/380V |
SJG3-2.4 |
3T |
2.0×2.0M |
2.4M |
630MM |
2.0×2.0×0.63M |
2.2KW/380V |
SJG1.5-3.8 |
1.5T |
2.2×2.0M |
3.8M |
700MM |
2.2×2.0×0.70M |
4KW/380V |
SJG2-3.8 |
2T |
2.2×2.0M |
3.8M |
830MM |
2.2×2.0×0.83M |
4KW/380V |
SJG2-5 |
2T |
2.3×1.4M |
5.0M |
870MM |
2.3×1.4×0.87M |
4KW/380V |

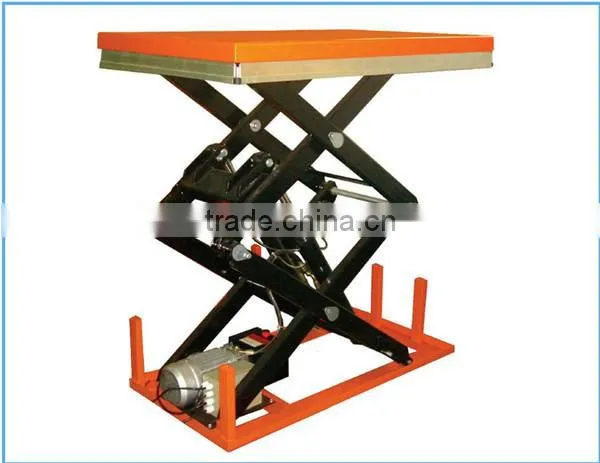

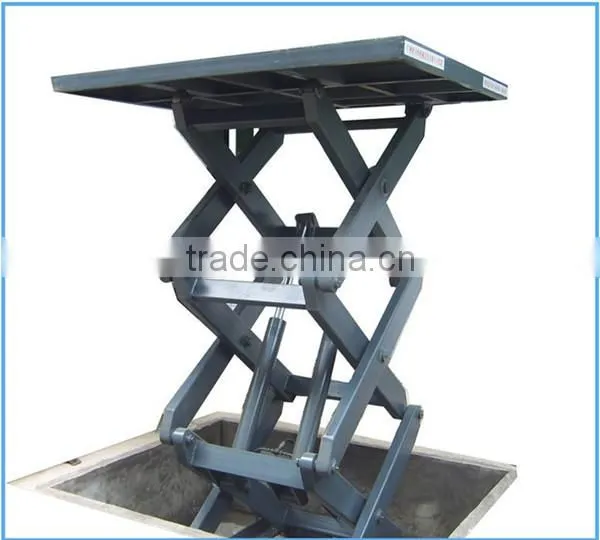

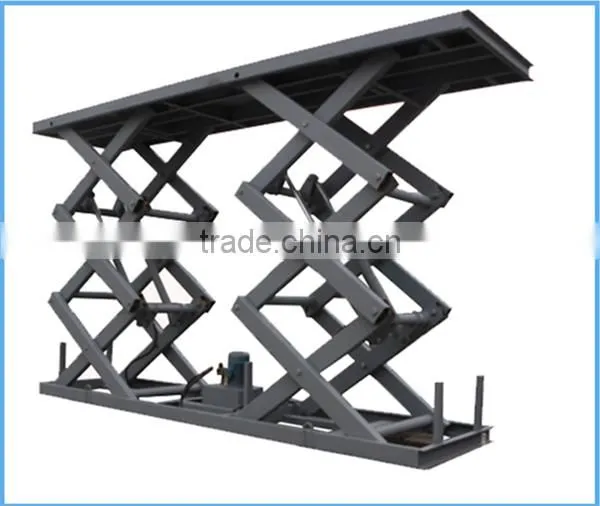

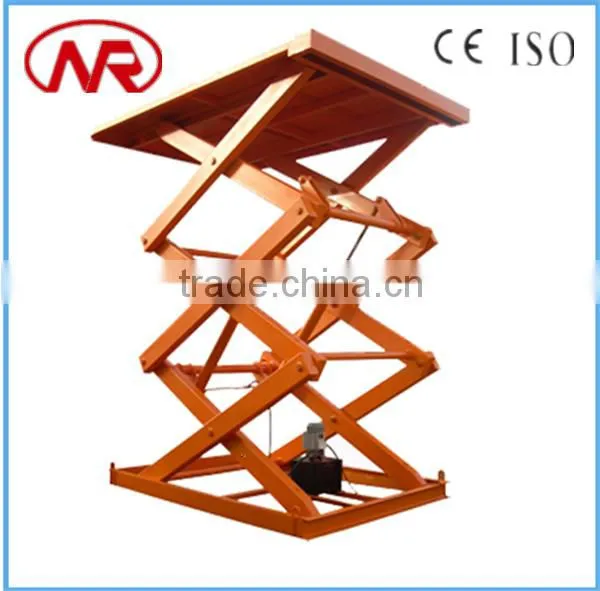

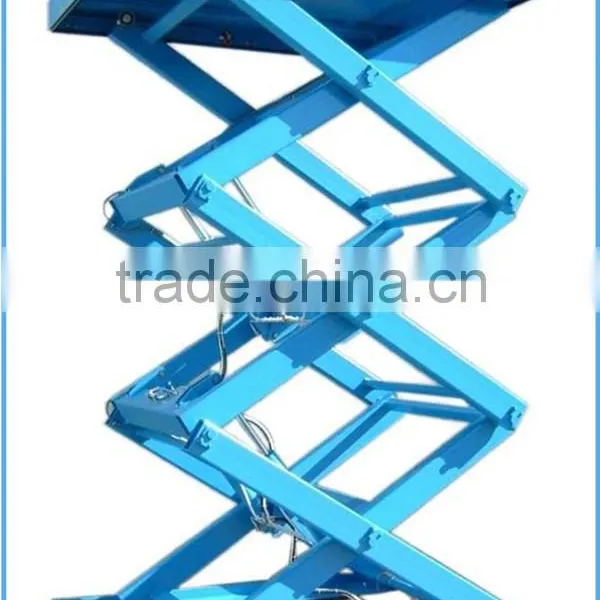

• Application photo:
• Shipping:
-By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
-Customers specifying freight forwarders or negotiable shipping methods!
-Delivery Time: ; within 15 days for batch goods.
• Package Informations:
-wooden case
- plywood case
-suitable for the long disdance inland and ocean freight transporter
• Payment:
-T/T, Western Union, MoneyGram
2.30% deposits; 70% balance before delivery.
• Excellent and professional service:
-We are a professional manufacturer engaged in the research, development, production, sale and service of machinery and hardwares accessories.
Our lifts are engineered to the highest quality and specifications for fit, performance and
endurance, with a quality finish and fine threads for more holding strength. They all meet the U.S.V5
specifications and are tested for your safety. Our offers finishes in Chrome, Stainless Steel, and Raw.
• Production capacity:
-Our lifts are engineered to the highest quality and specifications for fit, performance and
endurance, with a quality finish and fine threads for more holding strength.
• Quality control:
-The passing rate of finished product is more than 99% . Every product need to be checked by many
processes.
• Comprehensive service:
-Delivery will be ready within 30 days after receiving your down payment .
We have a good engineer team who can design kinds of products according to customer requirements .
We have been in this field for 20 years, covering ovearseas market of 30 different countries .
Supply all the products with good quality and competitive price .
-We are Alibaba Assessed 2 years Gold Supplier.
-we have trade assurance amount $17000.granted by
-We are a factory manufacturing led lifts, top quality,the most competitive price,Good after –sale service.
-100% QC inspection Before Shippment.
Q1: What is your MOQ?
A1: Our MOQ is 1 Set
Q2:Do you offer free sample?
A2:No
Q3: What is your payment term?
A3: 30% down payment after confirming the contract/PI and the balance before shipment/copy of Bill of Lading .
Q4: What normal cooperation processes do you have?
A4:First , we need your drawing or dimension for quotation .
Second , you accept our quotation , then you pay for the tooling cost
Third , we make sales contract for you to confirm .
Fourth , manufacturing dimention and shipping to you .
Fifth , you pay us the balance .
Finally , you receive ourlift and feedback .
