New model stove vent hoods
stove vent hoods description
1.national patent design
2.new ultra-thin wall hung
3.suction smoking rate 99%
4. Range hood of new version. Perimeter aspiration.
5. Colours/finish:stainless steel range hood
6. Installation:wall mounted range hood
stove vent hoods parameter
Model |
1288 |
Rated power |
233W |
Air Volume |
17 m3/min |
Air pressure |
290Pa |
Noise |
55dB |
Normal odor reduction degree |
≥98 |
Grease separating degree |
≥95 |
Boundary dimension |
900×428×915 mm (1288);
|
stove vent hoods main parts
|
Gas & Heat sensor:
|
When the sensor function is turned on, the hoods will detect remained gas and heat automatically, providing you with a safe and clean kitchen environment. After one minute, if there is no gas or smoke, motor will stop working automatically. |
|
Timer:
|
Automatic shut-off of intensive level. Our products have a built-in timer that can operate the unit for 01-99 minutes. After the time expires, the unit automatically shuts off. |
|
LED light:
|
Equipped with LED lighting systems, our products provide optimum cooktop lighting to facilitate food preparation. Meanwhile, they last up to 10 timers longer than conventional bulbs and deliver energy saving of 90%. |
|
Stainless steel grease filters:
|
JIEPIN range hoods have 5 layer stainless steel grease filters. The outer layer and frame are made from high quality stainless steel. Cleaning in a dishwasher does not affect the appearance of these filters so you know your JIEPIN range hood will keep its good looks for a long time. |
|

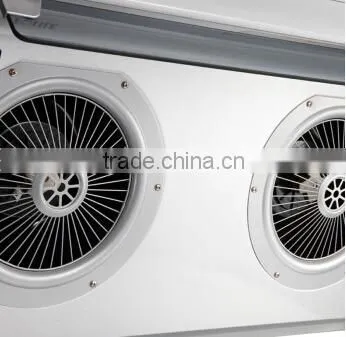

Motor system:
|
Our products come equipped with a unique double sided impeller. This design improves performance and extends the life of the motor. |
|
Head saver:
|
The compact size of hoods allows for increased freedom of movement during food preparation and you will never need to worry about bumping your head again. |
|
High performance:
|
Models with exceptionally high suction performance, which are ideal for kitchens subject to intensive sessions of boiling, frying and grilling. |
stove vent hoods advantage
1.National patent design, ultra-thin wall hung, don't block the line of sight, don't touch head,
avoid unpick wash, the surface no have oil droplets attached, not drop oil.
2.National patent technology design side circular arc get into wind device, suction smoking rate above 99%, double flow purifying technology, more higher oil smoke separation rates; More energy saving, more environmental protection, more healthy.
3.Special design large smoking motor, match with aerodynamics bellows, without any increase
in power consumption, outlet air flow rate more than 18m3/minutes, far outweigh the every minute
7cubic of national standards.
4.Special material made motor, the key components use import part more longer life, ensure use 10 years.
5.Large storage design, hold much oil, less oil, no oil cup, save time.
6.Large area oil-smoke discharge device, convenient cleaning, only need take out oil smoke separate net to clean okay.
stove vent hoods feature
1. Double-fan system, and left and right exhausting types make the oil smoke discharge more convenient and energy saving.
2. Side exhausting type makes the ventilator have bottom blower with exhaust inlet closer to the stove, thus its suction is strong and smoke exhaust effect is good.
3. Plate type smoke diversion type has good oil-smoke separation effect.
4.The oil smoke channel is separated with the inner cavity to make the cleaning more convenient.
5. Touchable inductive control method is safe and reliable.

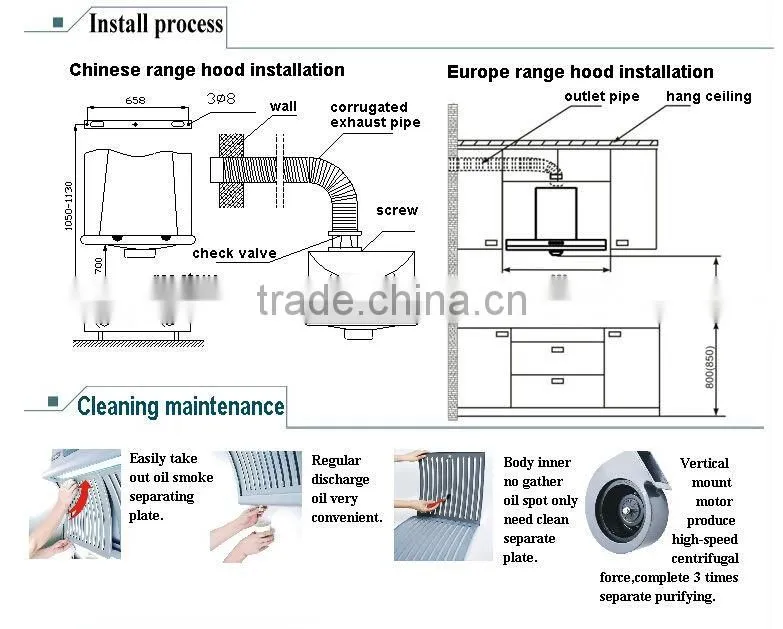

stove vent hoods detail picture
packing and shipping
