Specifications
We steel making by ourself,they are wildly used for construction steel material field,can be galvanised and processingFeature:

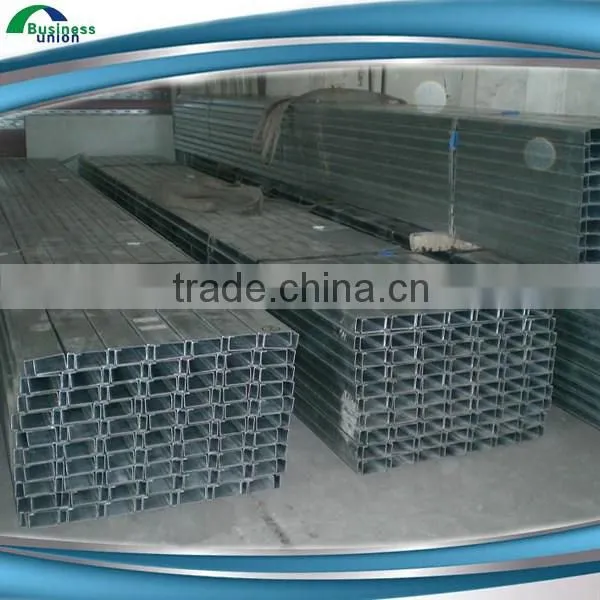

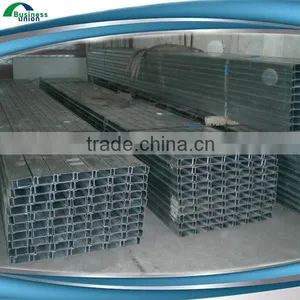

Steel channels
type:5#--32#(GB standards);75*40--150*75(JIS standards)
thickness:4.5-9.5mm/3.8-9.0(JIS standards)
Chinese standard
CHANNEL BAR | ||||
size(mm) |
h(mm) |
b(mm) |
Thickness(mm) |
Density(kg/m) |
5# |
50 |
37 |
4.5 |
5.438 |
6.3# |
63 |
40 |
4.8 |
6.634 |
8# |
80 |
43 |
5 |
8.045 |
10# |
100 |
48 |
5.3 |
10.007 |
12# |
120 |
53 |
5.5 |
12.059 |
14A# |
140 |
58 |
6 |
14.535 |
14B# |
140 |
60 |
8 |
16.733 |
16A# |
160 |
63 |
6.5 |
17.24 |
16B# |
160 |
65 |
8.5 |
19.752 |
18A# |
180 |
68 |
7 |
20.174 |
18B# |
180 |
70 |
9 |
23 |
20A# |
200 |
73 |
7 |
22.637 |
20B# |
200 |
75 |
9 |
25.777 |
22A# |
220 |
77 |
7 |
24.999 |
22B# |
220 |
79 |
9 |
28.453 |
25A# |
250 |
78 |
7 |
27.41 |
25B# |
250 |
80 |
9 |
31.335 |
28A# |
280 |
82 |
7.5 |
31.427 |
28B# |
280 |
84 |
9.5 |
35.823 |
30A# |
300 |
85 |
7.5 |
34.463 |
30B# |
300 |
87 |
9.5 |
39.173 |
32A# |
320 |
88 |
8 |
38.083 |
JIS standard
JIS-CHANNEL BAR |
|
SIZE(mm) |
kg/m |
75*40*3.80*7.00 |
5.3 |
75*40*4.00*7.00 |
5.6 |
75*40*4.50*7.00 |
5.85 |
75*40*5.00*7.00 |
6.92 |
100*50*3.80*6.00 |
7.3 |
100*50*4.20*6.00 |
8.03 |
100*50*4.50*7.50 |
8.97 |
100*50*5.00*7.50 |
9.36 |
100*50*6.1 |
10.6 |
125*65*5.20*6.80 |
11.66 |
125*65*5.30*6.80 |
12.17 |
125*65*5.50*8.00 |
12.91 |
125*65*6.00*8.00 |
13.4 |
150*75*5.50*7.30 |
14.66 |
150*75*5.70*10.00 |
16.71 |
150*75*6.0*10.00 |
17.9 |
150*75*6.5*10.00 |
18.6 |
150*75*9.0*12.50 |
24 |
