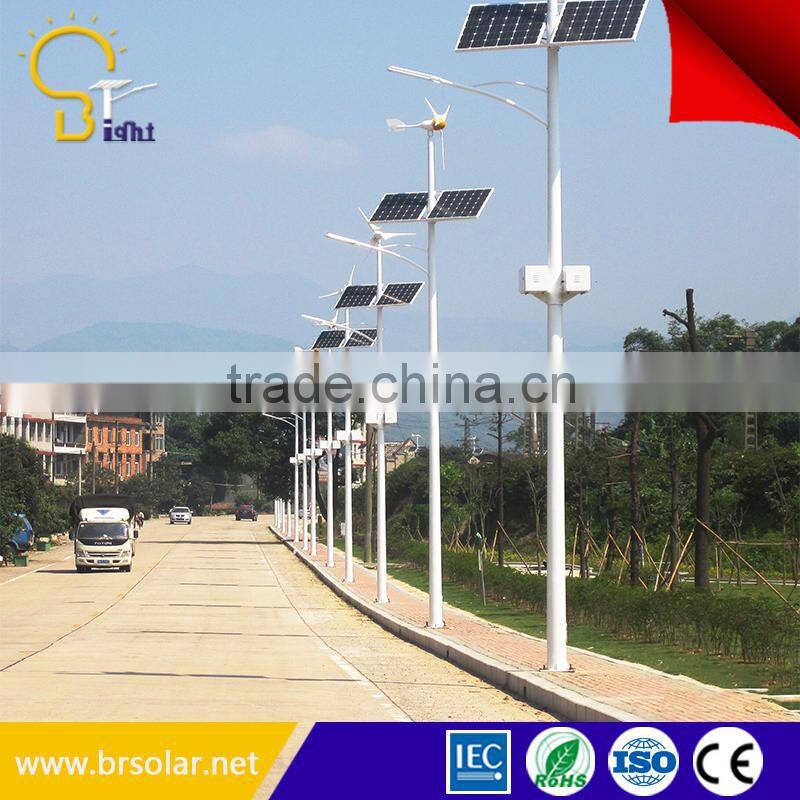

Wind Solar Hybrid Street Light System
LED Solar Street Lighting System
LED Street lighting is a fresh new alternative to traditional street lamps such as: LPS, HPS, or MH street lights.
LED lighting provides a multitude of advantages over conventional incandescent lights:
Advantages of Wind Solar Street Lighting Projects:
1). Green Energy, Lower Power Consumption, Save 60%-80% Than Others.
2). Higher power, higher brightness intensity, Good Color Rendition.
3). Save electricity cost. Save electric transformer and cable cost. Free maintenance
4). Environmental Impact - Eliminate Hazardous Disposal, Low Light Pollution, No Radiation.
5). Longer lifetime: Between 80000-100000 Hrs. If lighting 12 hrs/night, could use at least 12 - 22 Years
6). Less heat Generated compared to other sources,
7). Downward orientation of Light, could adjust lighting angles and lighting range and shape on the Ground to meet the road-Rectangular. Other lighting source just could give common round shape and small lighting range.

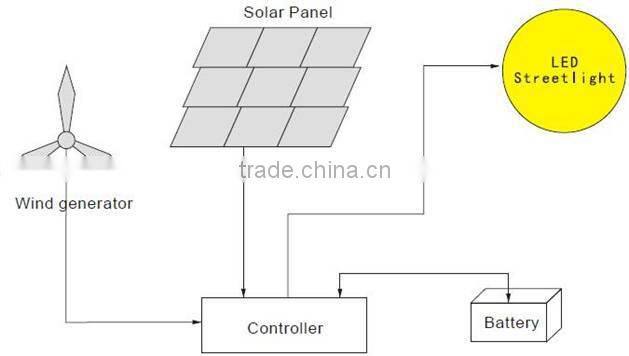

Technical Data-System : Wind Solar Hybrid Street Light With 60w Design :
6M Pole Height 60W LED lamp |
11-12Hrs 2--3 Nights Lighting |
|

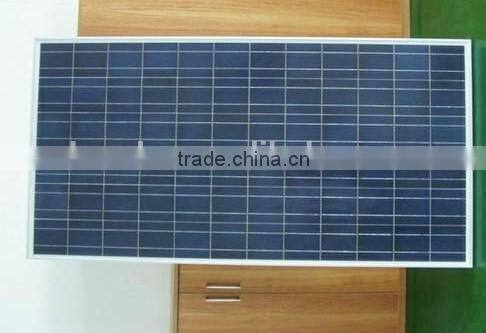

Solar Panel: Lifespan:20-25 years |
200W*2PC for 24V Lighting, 17% Efficiency, Adding Aluminum Frame, Tempered Glass. |
|

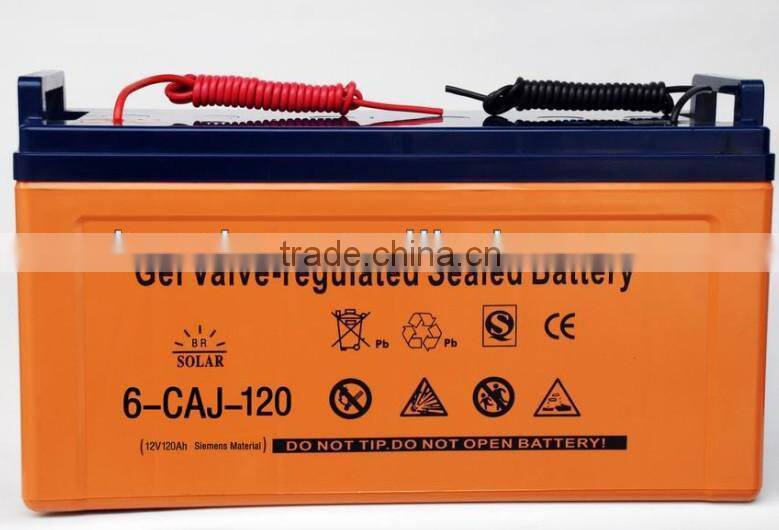

Gelled Battery Lifespan:5-8 years, |
120Ah/12V*2PC, Sealed Type, Gelled. Deep cycle. Maintenance Free |
|
Intelligent Solar Controller, PWM Type, Lifespan:5-10 years Switch off after 11-12 Hrs later. |
20A/24V, Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; |
|
Light source: High Power LED Lifespan: >100000Hrs, |
60W LED, White Color,130LM/W,>34Lux,6500K, IP66,120 Degree Angle, |
|
Lamp Housing: Lifespan: More than 20 years
|
Die-casted Aluminum, IP65 High transmittance & density toughened glass, |
|
Pole: Lifespan: More than 20 years Resistant to Wind: ≥150KM/H, |
6M Height, Steel, Hot-Dip Galvanized. With Arm, Bracket, Flange, Fittings, Cable, Etc |
Wind driven generator :
Parameter: | ||
Brand |
Light |
|
Maximum Power(W) |
300 |
|
Rated Voltage(V) |
12/24 |
|
Rotor Diameter(M) |
0.99 |
|
Start wind speed(M/S) |
1 |
|
Security wind speed(M/S) |
35 |
|
Wind leaf number(piece) |
3 |
|
Fan life |
15-20 |
|
Fan gross(kg) |
15 |
|
Wind leaf material |
||
Packaging |
Carton |
|
Package size |
47*41*33cm2 |
|
Pull the height of the tower(M) |
6 |
|
Feature: | ||
1 |
The breeze start |
|
2 |
Continuous service wind power plant |
|
3 |
Performance Stable And Reliable |
|
4 |
This System Structure Simple and Installation easy |
|
5 |
Widely used in Street Light, Communication Base Station, Effluent Treatment Plant, Toll station, Monitoring indicator system ect. |
|
The Fixtures:
We Yangzhou Bright Solar Solutions Co.,Ltd,established in 1997,an ISO 9001:2000,CE&EN,Rohs,Soncap,IEC,TUV,CCPIT,CCC approved Manufacturer and Exporter.Our solar lighting products have been successfully appliied in more than 50 countries.
Advantage:
1. MOQ: One Sample is available It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder (Long-term Contract

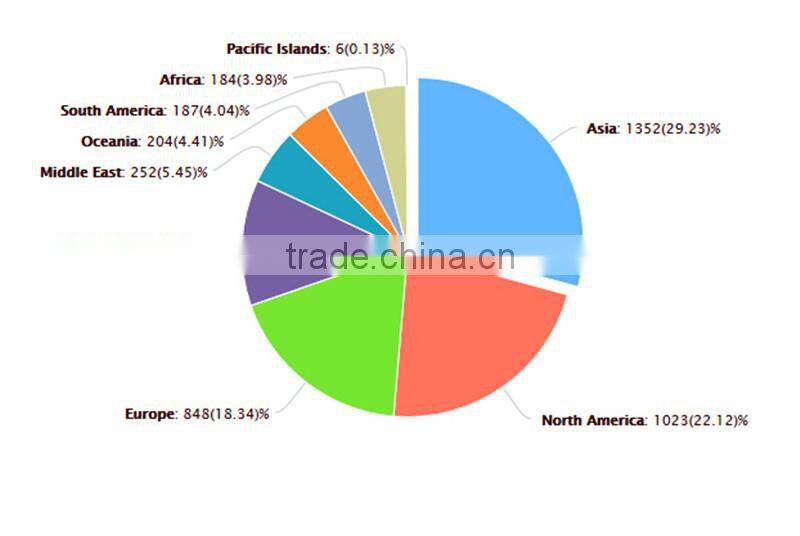

6.Our customers come from more than 70 countries around the word.
7.Our Products are very popular with overseas buyers.
Solar street lamp Applications:
Street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting; boat dock lighting;
sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.
DETAILS PICTURES OF PRODUCT
FAQ:
1. Q: How many cycles full charge &discharge about your battery?
A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging
and discharging status, it can be cycled for 5000~6000 times.
2. Q: How to Choose the System Voltage 12V or 24V or for normal street Light?
A: We can design the System for 12v or 24v for solar street Light or 220-380V for normal
street light.
3. Q: W hat’s the main difference between mono and polycrystalline solar panel?
A: production process and cost. Poly silicon technology is more mature since it is an
early technology compared with Mono silicon.
4. Q: The controller of your solar street light has dual time control function?
A: our solar charge controller is designed with dual time control function, you can set up
the lighting time and divide it into two parts, like 12 hours (6 hours full power lighting + 6
hours half power lighting)
Thanks for reading. If you need more information or better quotation, please feel free to contact us.
