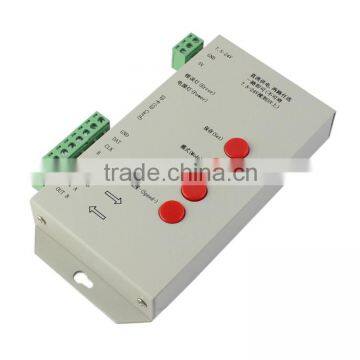

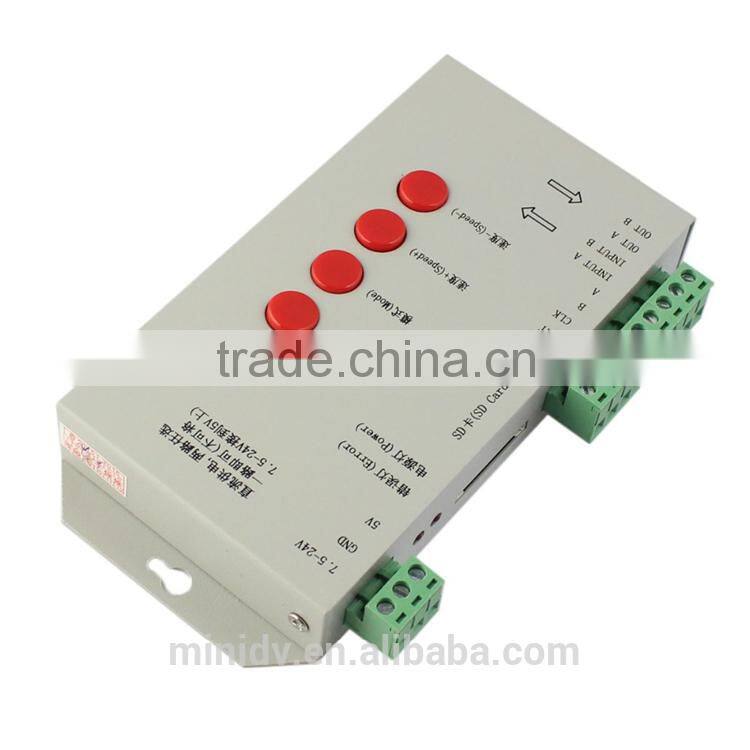

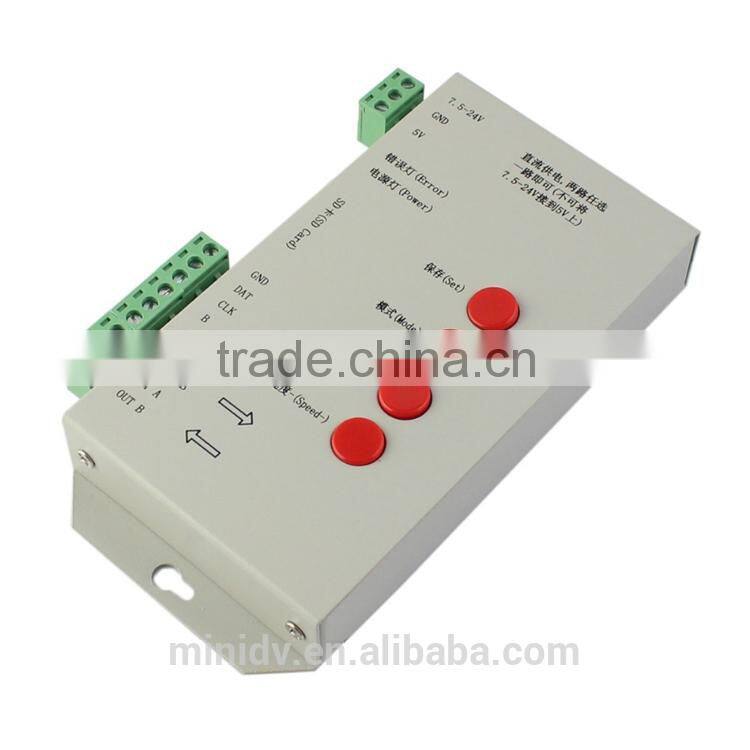

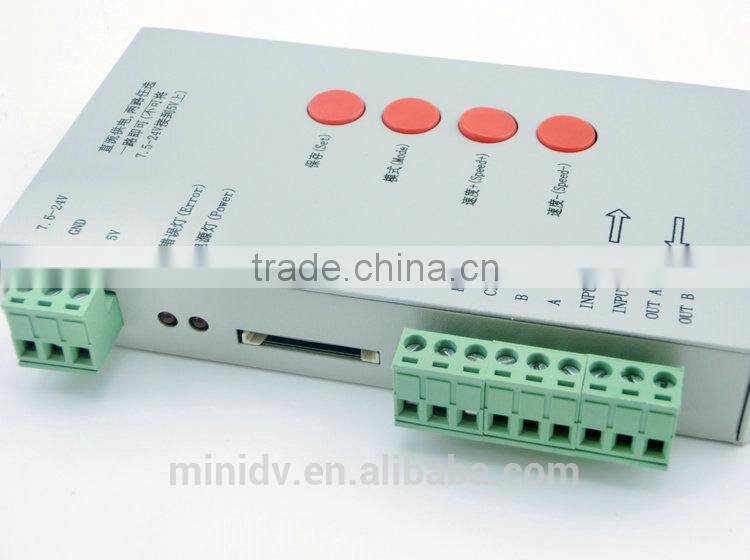

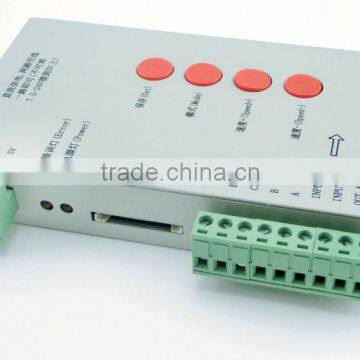

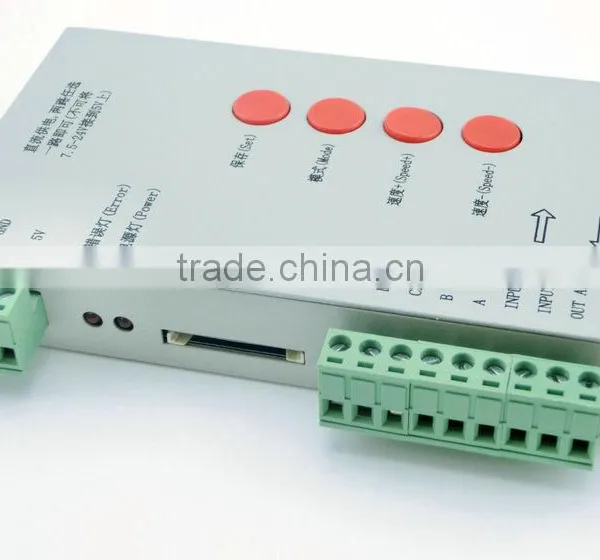

SD Card Recognizable DIY Color Changing Mode T-1000S Programmable LED Strip Controller Especially for Dream-color Changing Strip

Support IC type

Module in LedEdit software

Pixel numbers

Remark

LPD6803,D705,1101,6909, 6912

T-1000-6803

2048 pixel

LPD8806,LPD8809

T-1000-8806

2048 pixel

TM1803,TM1804,TM1809,TM1812

T-1000-TM

2048 pixel

TM1804 and TM1809

low speed and high speed

TM1903TM1904TM1909TM1912

T-1000-TM19

2048 pixel

UCS6909UCS6912UCS7009UCS5903

T-1000-UCS-32

2048 pixel

UCS1903UCS1909UCS1912

T-1000-UCS-256

2048 pixel

low speed and high speed

UCS3903

T-1000-UCS-1024

2048 pixel

DMX512

T-1000-DMX

170/512 pixel

Compatible DMX512

WS2801,WS2803

T-1000-WS

2048 pixel

WS2811

T-1000-WS2811

2048 pixel

low speed and high speed

DS189

T-1000-DS189

2048 pixel

TLS3001,TLS3002TLS3008

T-1000-TLS

* pixel

P9813

T-1000-P9813

2048 pixel

SM16715

T-1000-SM16715

2048 pixel

low speed and high speed

SM16716

T-1000-SM16716

2048 pixel

BS0901,BS0902

T-1000-0901

2048 pixel

BS0815

T-1000-0815

2048 pixel

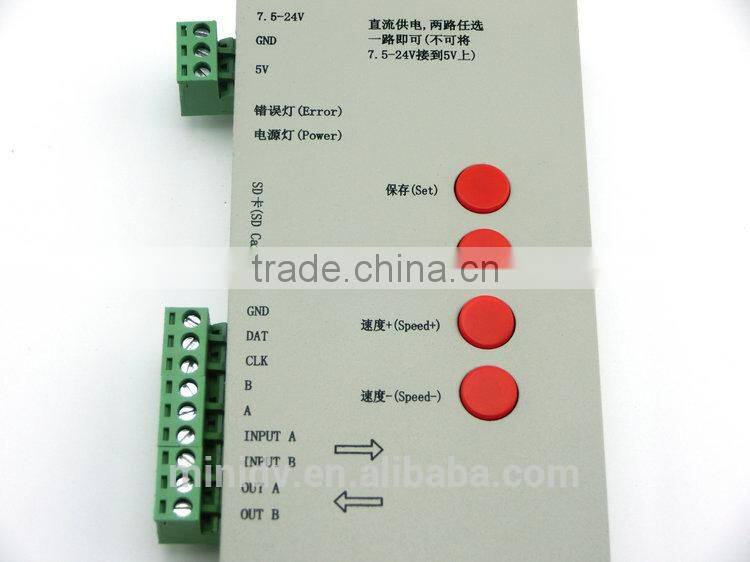

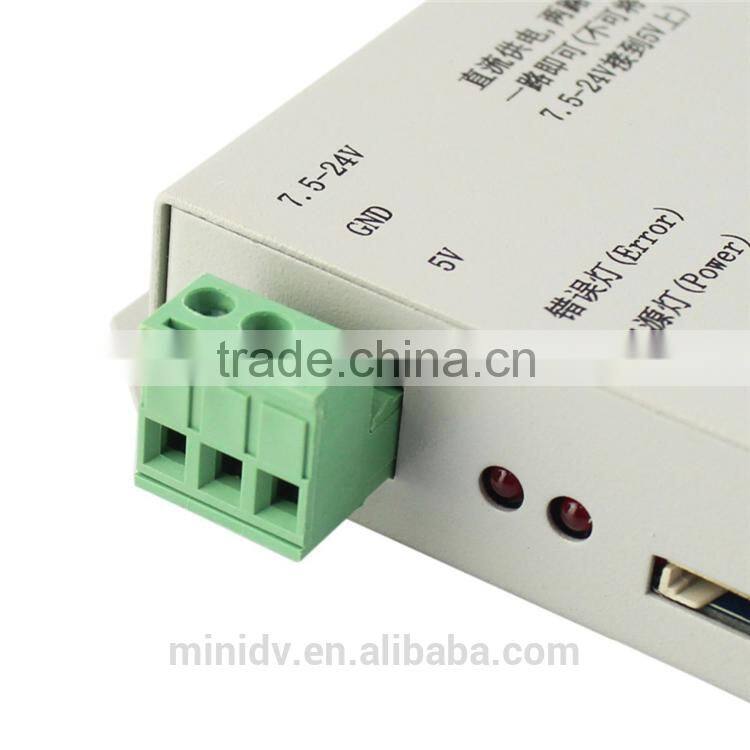

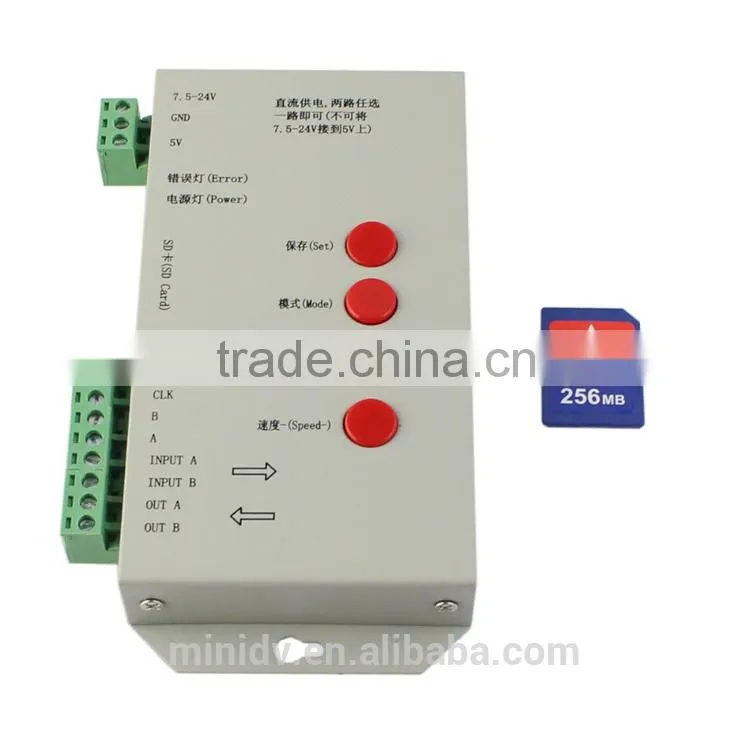

7.5V-24V

DC power input, to provide two sets of power input, select a group can be.

5V

Power Ground.

GND

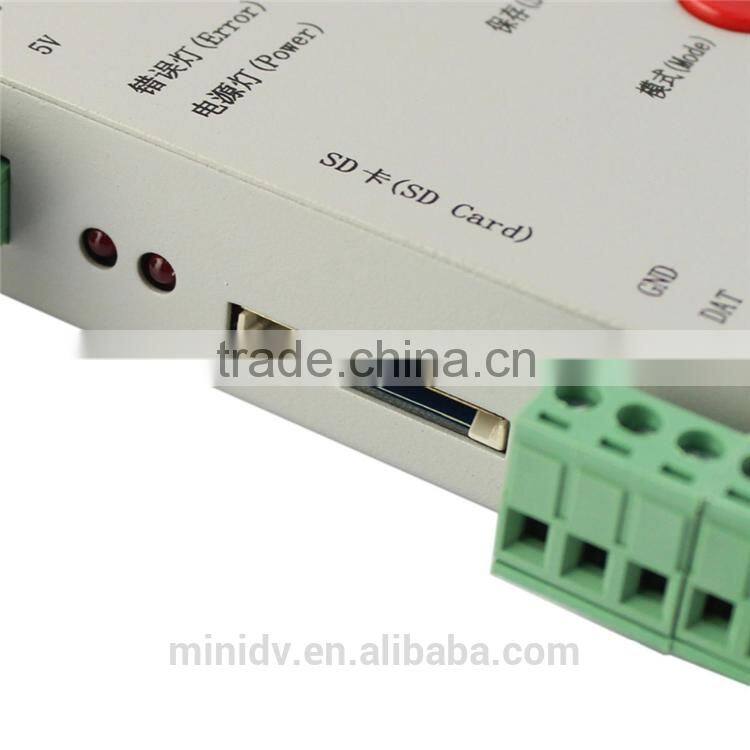

Error indicator

ERROR

Power LED

POWER

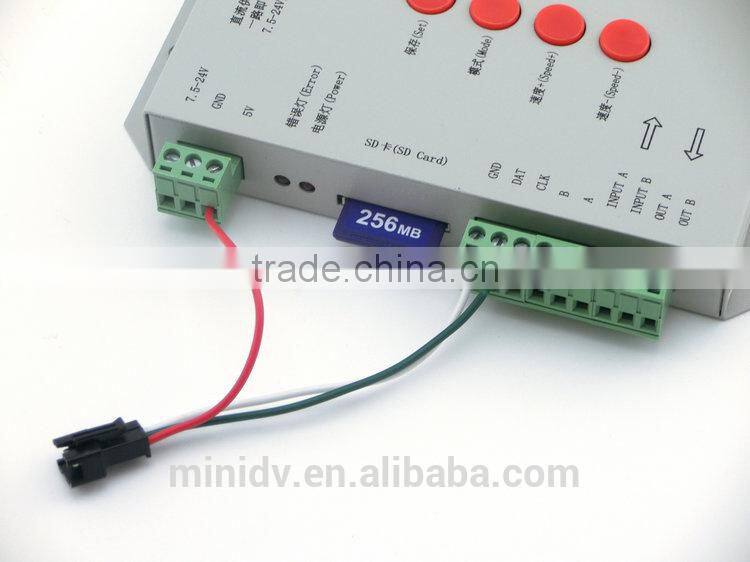

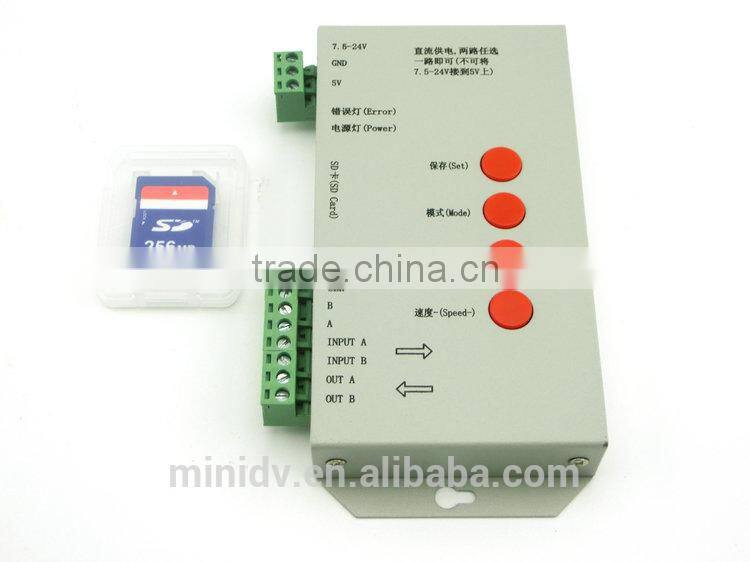

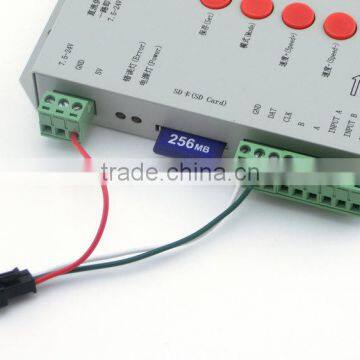

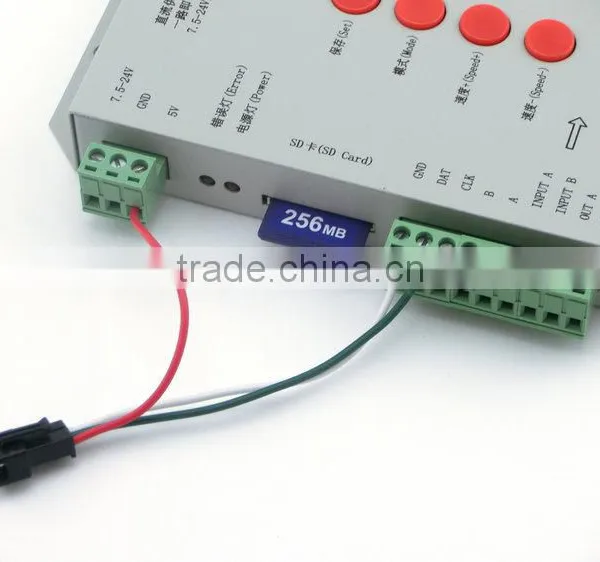

SD card slot

SD CARD

Output CLK

CLK

Output DATA

DAT

Signal Ground

GND

B
A

Compatible with DMX signal, differential A, and differential B

GND

Signal Ground

SET

Save Settings to save current settings file and the playback speed

MODE

Switch File

SPEED+

Speed up the playback speed

SPEED-

Slow down the playback speed

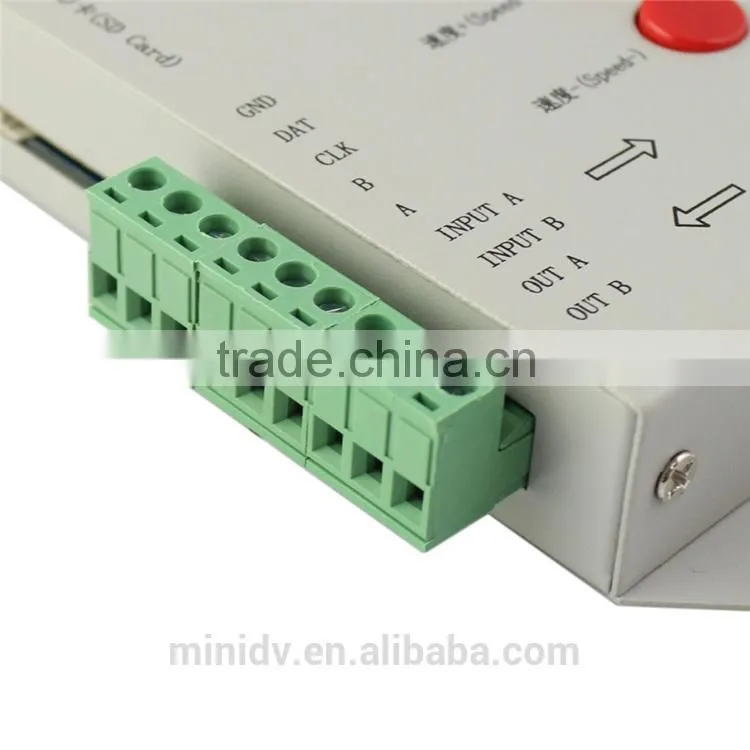

CLK

Clock signal

B

Signal A / DMX+

DAT

Data signal

A

Signal B / DMX-

GND

Signal ground

GND

Signal ground
