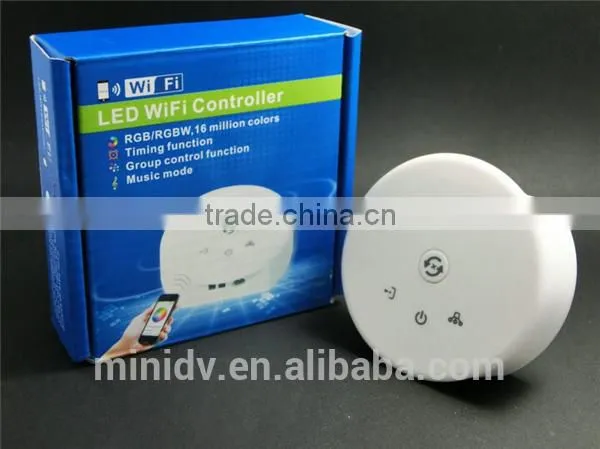

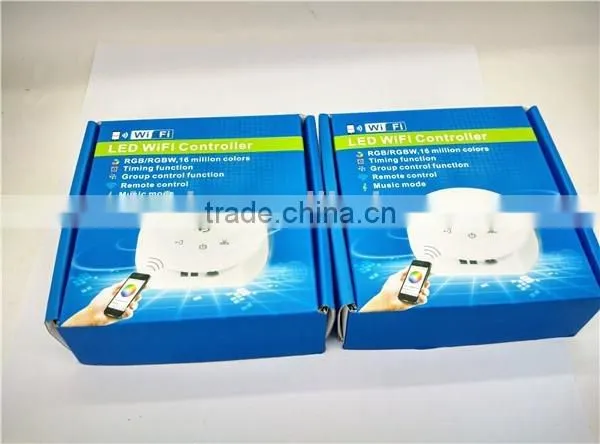

192W/384W High-powered WiFi LED Controller for DC12V/24V Full-color RGB/RGBW LED Strip with Remote Control APP for Android IOS
Description

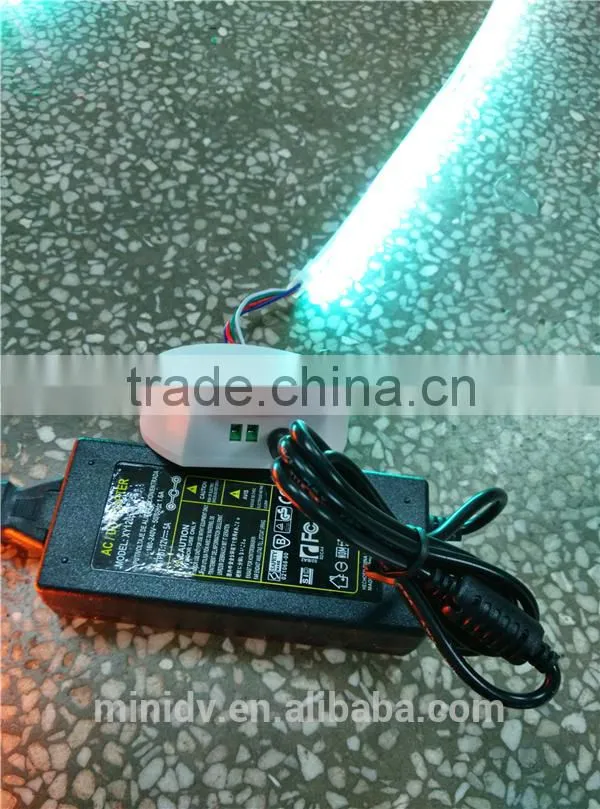

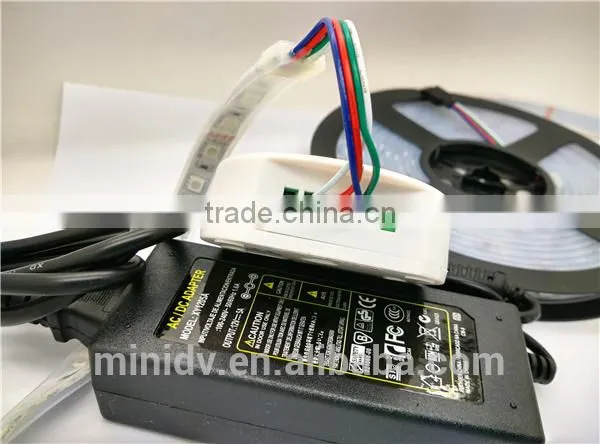

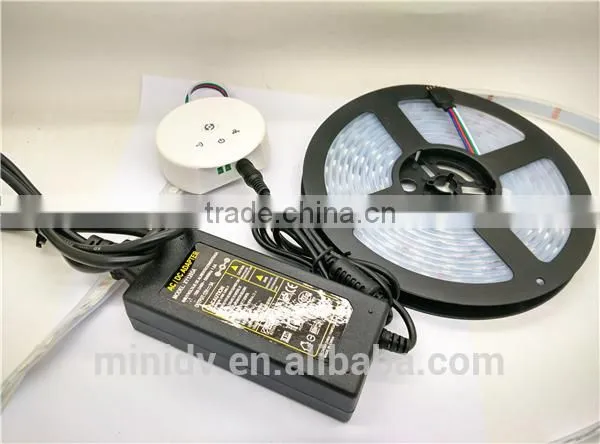

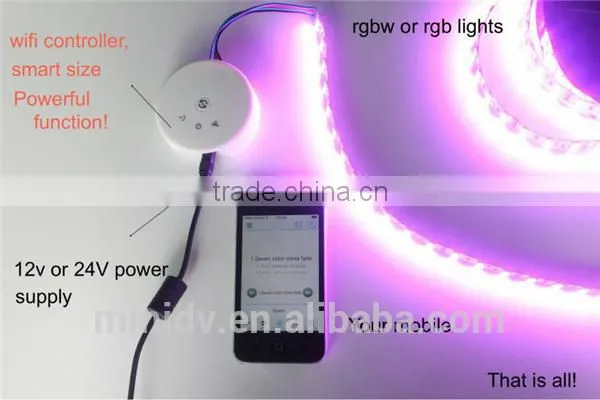

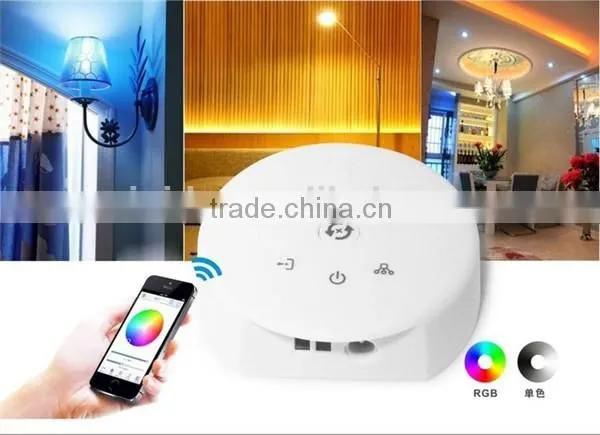

Welcome to use LED WiFi Controller, this controller is designed for low voltage(12V-24V) light, such as 12V LED strip,12V panel light etc. After installation and settings,your phone (IOS or Android system) can control light directly. The remote control distance reaches 50 meters indoor and more than 100 meters outdoor.
Specifications
1. RGB/RGBW, 16 million colors, built-in 20 dynamic models,DIY models,music modes
2. divide into groups function
3. timing function, automatic turn on/off as your setting time. Set any dynamic models
4. allocate to router by one key”WPS”
5. after connecting router,controller’s wifi signal will be hided automatically to prevent hotlinking
6. memory function,keep same status as last time after power off
7. single control by phone or integrated control by router
8. operating platform:requires Android 2.3.3 or later,IOS 6.0 or later
Technology Parameter
1). Data Parameter
1. Input voltage: DC12V-DC24V
2. Power: DC12V:192W; DC24V:384W;
3. Application: common anode,constant voltage light,such as 12V LED strip,12V LED panel light etc.
4. Output current: 4A*4CH
5. Connection: common anode

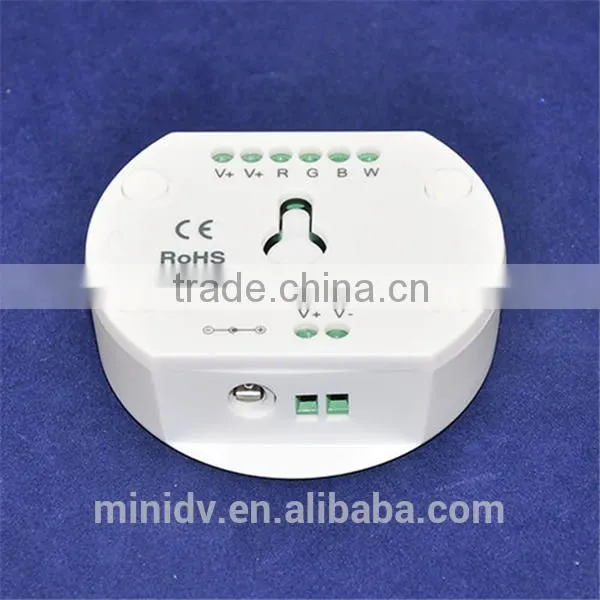

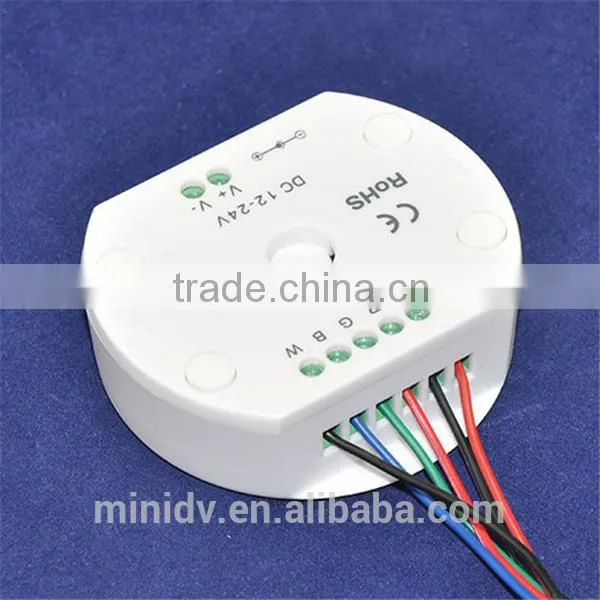

6. Input: (wire terminal or DC head )
V+: connect anode of power supply
V-: connect cathode of power supply

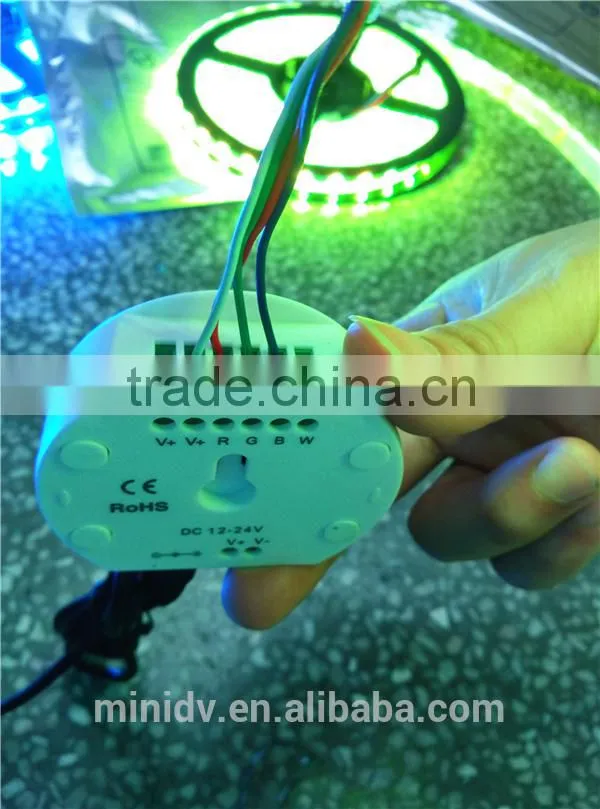

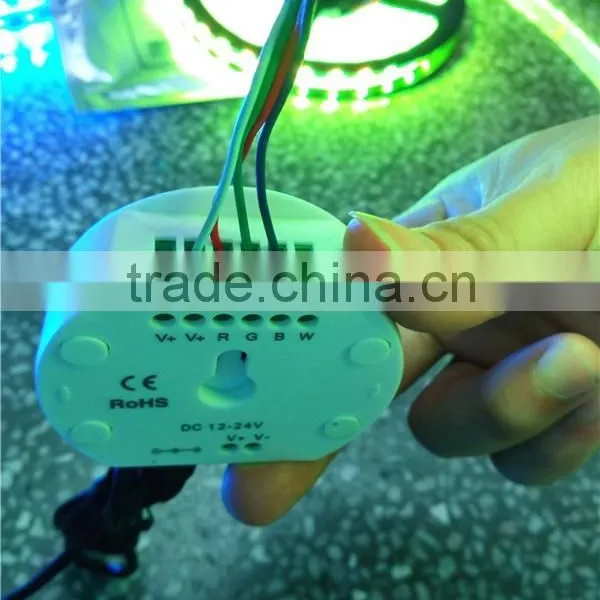

7. Output:
V+: connect anode of lamp
R: connect anode of red color
G: connect anode of green color
B: connect anode of blue color
W: connect anode of white color if you light have this port.

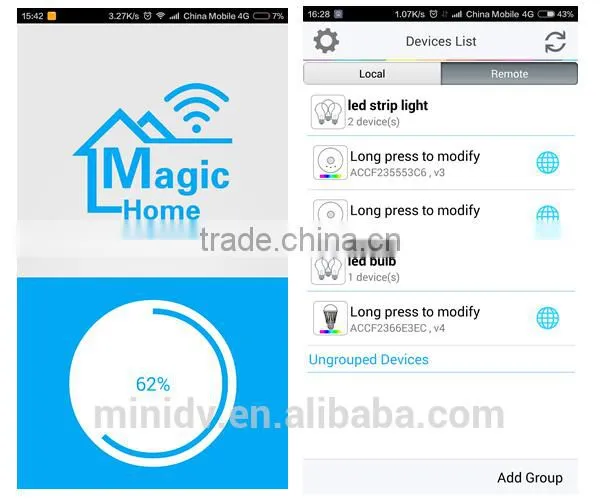

2) Software User Manual
• Android
1. Name: "Magic UFO -WiFi Controller" for local short-range control OR "Magic Home wifi"for long-range remote control
2. Running platform: requires Android 2.3 with wifi function or later
3. Language: Chinese/English,app shows same language as your system’s in default
• IOS
1. Name: Magic UFO-WiFi OR Magic Home wifi
2. Running platform: requires ISO 6.0 or later
3. Language: Chinese/English,app shows same language as your system’s in default
