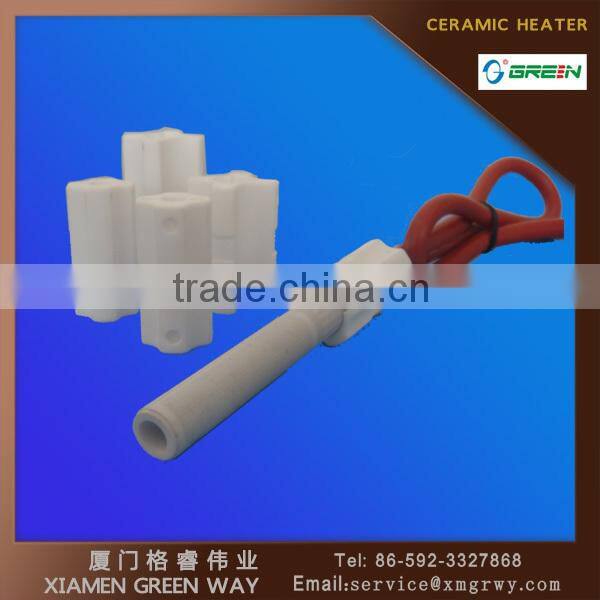

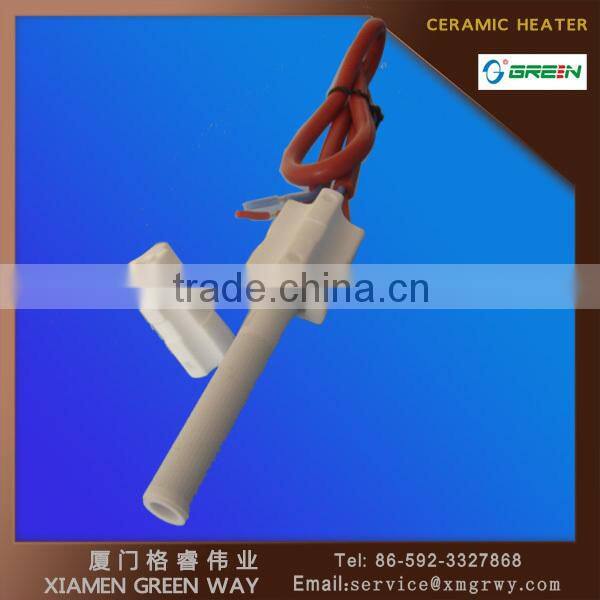

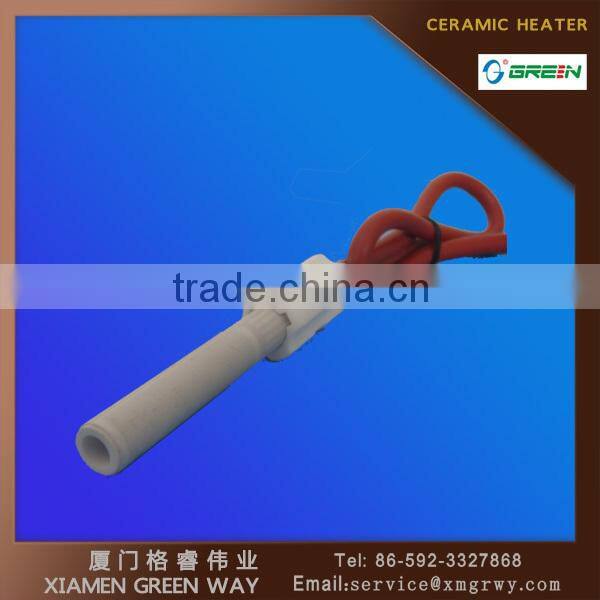

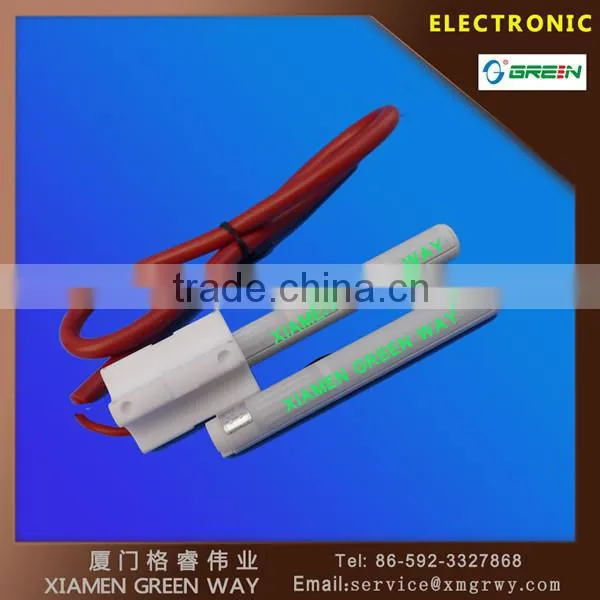

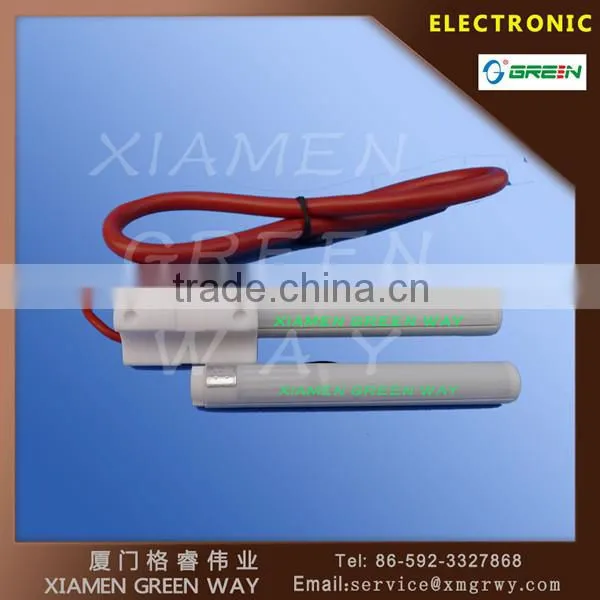

Help Center230V 170W Fireplace Heaters
Related Products
-
230V 150W Fireplace HeatersNegotiableMOQ: 10 Pieces -
China Make Ceramic Heaters for Wood Pellet Burner/Soldering/Water Heater Quality ChoiceUS$ 0.35 - 35MOQ: 10 Pieces
-
New Design 230V Pellet Igniter for Biomass BoilerNegotiableMOQ: 10 Pieces
-
Hot Sale 200W Boiler Ignitor for Wood ChipsNegotiableMOQ: 10 Pieces
-
Eco Ceramic Heater for Renewable Energy Heating SystemsNegotiableMOQ: 10 Pieces
Xiamen Green Way is your best choice for high level quality and best price Alumina Ceramic
Fireplace Heater /120V/240V pelleT systerm igniters with the advantages of long service time,
fast heating rate, energy-efficient and eco-friendly.
Characteristic
1.High temperature-resistance ceramic fireplace heater which can reach a permanent working
temperature above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
Heat can be transfered from both inside and ouside of the heating element.
4.Electrically oxidation and corrosion-resistant
5.High load-bearing capacity(thermal shock resistance, cycles)
5.Customization the igniters according to customers’ specific requirement.
Application
One special application area for Green Way’s high temperature alumina ceramic fireplace heaters are
in heating systems that used solid fuels such as wood pellets as energy source. The challenge
here is to ignite the biomass in a very short time while retaining very low emission values. This
can be perfectly achieved by Green Way’s hot surface ceramic pellet igniter.
Alumina ceramic fireplace heaters for pellet boilers need only approx. 1/10 of the energy of that
needed by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 200 Watt.
Depending on the positioning of the ignition element in the boiler, the ignition time of approx. 60 s
econds is extremely short. This also means minimal emissions!
Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.
Mass customization is available.
1 |
Part No. |
GW023 |
2 |
Usage |
fireplace heaters |
3 |
Working Voltage |
230V |
4 |
Power |
170W |
5 |
Dimension of product |
Standard Dimension |
6 |
Cable |
Accordingly |
7 |
Advantages |
(1)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket
(2)Air can flow through and around inside and outside of heater
(3)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C
(4)Long Lifetime , depending on operating conditions
(5)Oxidation and corrosion-resistant
(6)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower!
(7)Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible. |
~~~Kinds of Inspection before Goods Delivery~~~
Here in Greenway, all heater should do 100% Inspections before delivery.Such as Apprearance
Test,Straightness Test,Dimension Test,Power-On Test,Dielectric Test and Resistance Distinguish.
