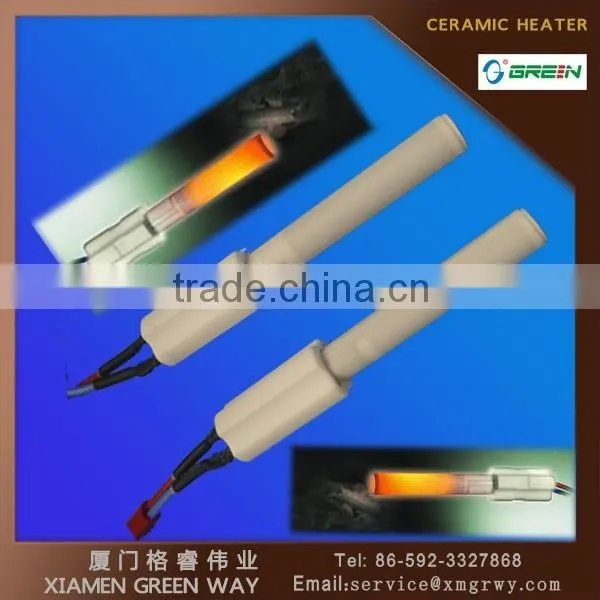

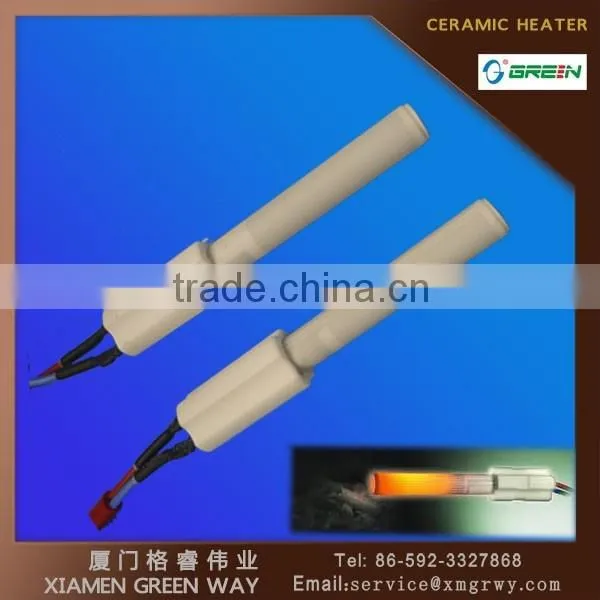

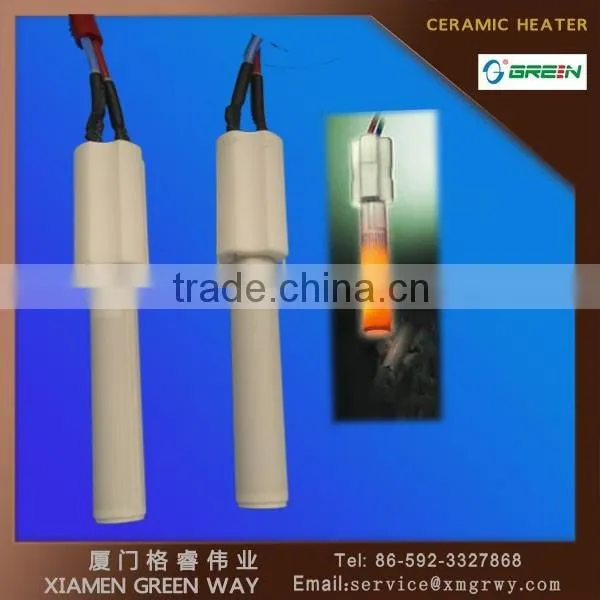

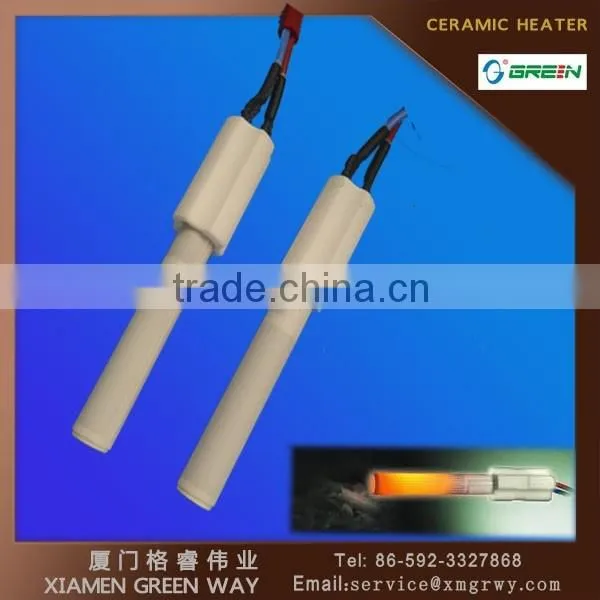

Help CenterChina High Quality 230V Wood Burner Resistance Heater
Related Products
-
120V 170W New Deign Ceramic Pellet Igniter for Biomass BoilerNegotiableMOQ: 10 Pieces -
120V 150W New Deign Ceramic Pellet Igniter for Biomass BoilerNegotiableMOQ: 10 Pieces
-
120V Ceramic Heaters for Pellet ApplicationsNegotiableMOQ: 10 Pieces
-
Alumina Ceramic Heaters in Hot SaleNegotiableMOQ: 10 Pieces
-
Pellet System Application Igniters 120V /240VNegotiableMOQ: 10 Pieces
Specifications
1. 230V Wood Burner Resistance Heater2. Own factory
3.Heating up 800C in 20s
4.Long life
5.Meet Rohs
Xiamen Green Way is your best choice for high level quality and best price wood burner resistance
for wood pellet for boiler with the advantages of long service time, fast heating rate, energy-efficient
and eco-friendly.
Characteristic
1.High temperature-resistance pellet stove igniter which can reach a permanent working
temperature above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
Heat can be transfered from both inside and ouside of the heating element.
4.Electrically oxidation and corrosion-resistant
5.High load-bearing capacity(thermal shock resistance, cycles)
5.Customization the igniters according to customers’ specific requirement.
Application
One special application area for Green Way’s high temperature resistance heater
igniter is in heating systems that use solid fuels such as wood pellets as energy source. The
challenge here is to ignite the biomass in a very short time while retaining very low emission values.
This can be perfectly achieved by Green Way’s hot surface ceramic heater igniter.
Ceramic pellet stove igniter heater hot surface wood burner resistance heater for pellet boilers
need only approx. 1/10 of the energy of that needed by hot air fans and ignition blowers. Their
ignition capacity lies between 120 and 200 Watt. Depending on the positioning of the ignition
element in the boiler,
the ignition time of approx. 60 seconds is extremely short. This also means minimal emissions!
Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.
Mass customization is available.
1 |
Part No. |
G78105-1 |
2 |
Usage |
wood burner resistance |
3 |
Working Voltage |
230VAC |
4 |
Power |
150~170 W |
5 |
Dimension of product |
Standard Dimension |
6 |
Cable |
0.5m OR accordingly |
7 |
Advantages |
(1)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket (2)Air can flow through and around inside and outside of heater (3)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C (4)Lifetime up to 100,000 heating cycles, depending on operating conditions (5)Oxidation and corrosion-resistant (6)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower!
|
