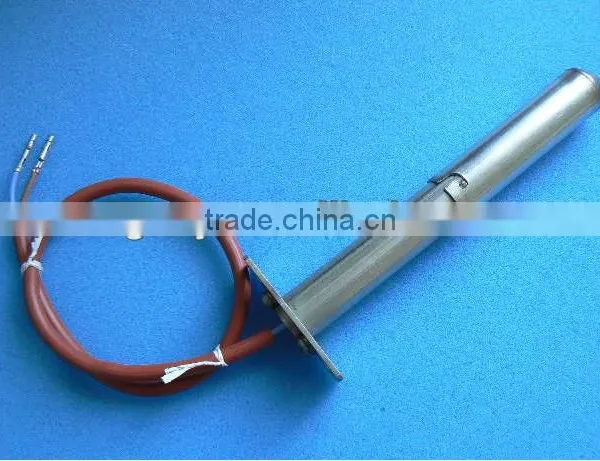

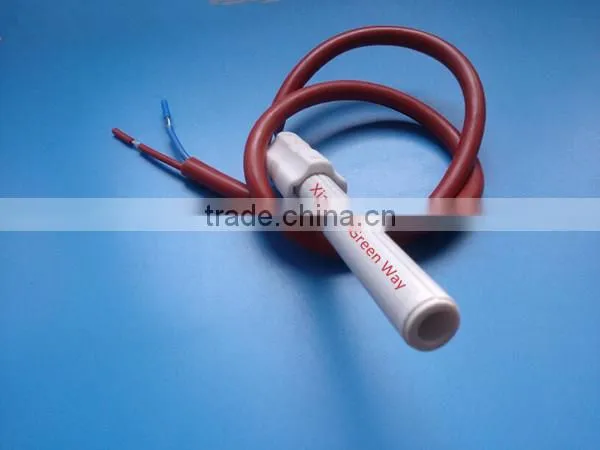

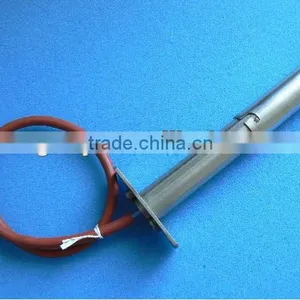

Help Center230V Ceramic Ignition Device for Igniting Solid Fuel With Proctective Tube
Related Products
-
2014 Hot Sale 150W Pellet Lighter Ignition for Biomass FireplaceNegotiableMOQ: 10 Pieces -
High Quality China Supply Cheap Wood Pellet Lighter for Pellet StoveNegotiableMOQ: 10 Pieces
-
230V 80ohm Igniter for Pellet BurnerNegotiableMOQ: 10 Pieces
-
Stock! Wood Pellet Ignition for BoilerNegotiableMOQ: 10 Pieces
-
Wholesale China Supply Good Quality Wood Igniter for Biomass BiolerNegotiableMOQ: 10 Pieces
Specifications
1.Ceramic ignition for Igniting Solid Fuel2.Over 1100deg.C
3.Fast heating up
4.Long life
5.Meet Rohs
HIGHLY DURABLE AND ENERGY-EFFICIENT XIAMEN GREEN WAY’S IGNITER
----ceramic hot surface igniters for the sake of environment.
Xiamen Green Way is your best choice for high level quality and best price ceramic igniter for biomass
burnerswith the advantages of long service time, fast heating rate, energy-efficient and eco-friendly.
Characteristic
1.High temperature-resistance ceramic heating element which can reach a permanent working temperature
above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
Heat can be transfered from both inside and ouside of the heating element.
4.Electrically oxidation and corrosion-resistant
5.High load-bearing capacity(thermal shock resistance, cycles)
5.Customization the igniters according to customers’ specific requirement.
Application

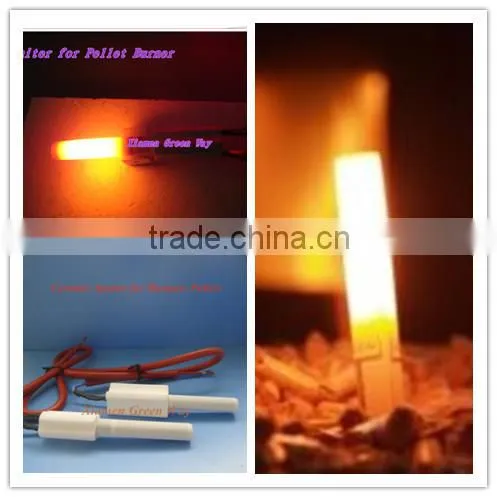

One special application area for Green Way’s high temperature ceramic igniters is in heating systems that
use solid fuels such as wood pellets as energy source. The challenge here is to ignite the biomass in a very
short time while retaining very low emission values. This can be perfectly achieved by Green Way’s hot surface
ceramic igniters.
Ceramic hot surface igniters for pellet boilers need only approx. 1/10 of the energy of that needed by hot air
fans and ignition blowers. Their ignition capacity lies between 120 and 200 Watt. Depending on the positioning
of the ignition element in the boiler, the ignition time of approx. 60 seconds is extremely short. This also means
minimal emissions!
Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.
1 |
Part No. |
G78105-21 |
2 |
Usage |
ceramic igniter for Pellet burner |
3 |
Working Voltage |
230VAC |
4 |
Power |
150--230(W) |
5 |
Dimension |
L=94mm; D=17.5mm (standard igniter) |
6 |
Silicon Cable |
0.5m long |
7 |
Advantages |
(1)Ready assembled, easy-to-install systems.
(2)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket
(3)Space-saving, noiseless and impervious to overheating.
(4)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C
(5)Lifetime up to 100,000 heating cycles, depending on operating conditions
(6)Minimal energy consumption
(7)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower!
(8)Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible. |
