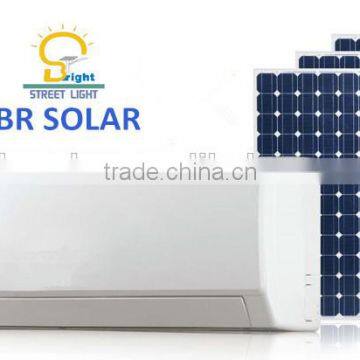

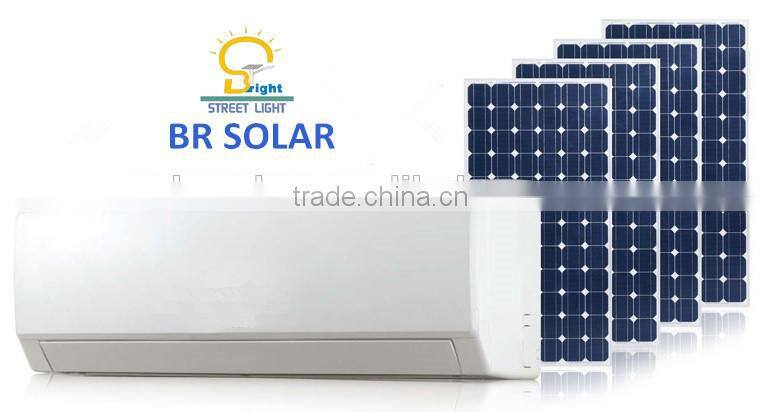

12000BTU DC Air Conditioner Solar Air Conditioning Quality Choice

Model No

BR-SAC01 Wall Split Mounted Type Solar Air Conditioner

Rated V/Hz

220V~ / 50Hz

power phase number

Single

climate type

T1

Suitable V

198V ~ 242V

mode of connection

single-phase three wire system

IP

IPX4

Project

Unit

Parameters

Note

Refrigeration

rated refrigerating

W

3500

rated input power

W

964

Rated Input Current

A

4.4/6.9

Max Input Power

W

1309

EER (Energy Efficiency)

W/W

3.63/ L1

dehumidification capacity

L/H

1.5

Circulating Air

m3/h

620

Indoor Fan Speed (Low/Middle/High)

r/min

1000/1100/1250

Outdoor Fan Speed (Low/Middle/High)

r/min

860

Heating

Rated heating capacity

W

3850

rated input power

W

1094

Rated Input Current

A

5.0/11.8

Max Input Power

W

2250

COP

W/W

3.52

Circulating Air

m3/h

620

Indoor Fan Speed (Low/Middle/High)

r/min

1000/1100/1250

Outdoor Fan Speed (Low/Middle/High)

r/min

860

Name of auxiliary electric heater

W

RGL/PTC//1000

Operating temperature range

℃

-7~43

The primary loop fusing electric current

A

——

Refrigerant code/injection rate

kg

R22/1.07

Indoor machine noise(Smallest/Biggest)

dB(A)

25/42

Outdoor machine noise(Smallest/Biggest)

dB(A)

53

Indoor Machine Weight

kg

10 / 13

Outdoor Machine Weight

kg

49.1 /53.1

Indoor Machine Size (W*H)

cm

81.8×27×20.2

Outdoor Machine Size (W*H*D)

cm

90×64×30

Indoor Machine Packing Size

cm

91×38×29

Outdoor Machine Packing Size

cm

105×40×70

Compressor Mark/Model/Type

piece

——

Connected Wire

——

Joint Pipe(Big/Small)

——

/ PH210M2C-4FT3 /

Fitting Pipe

mm2

1.0×3+0.75×2

throttle type

throttle valve
