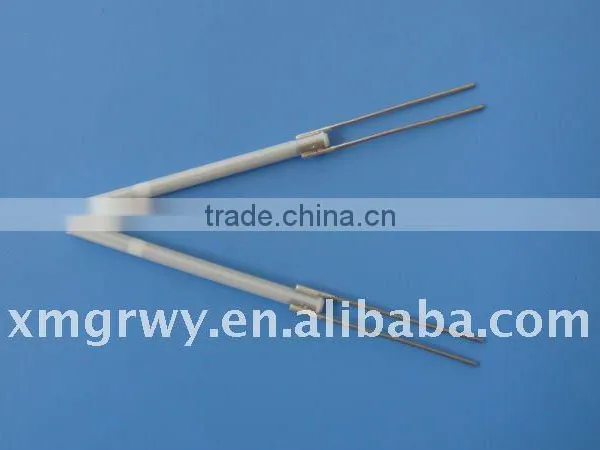

12V Ceramic Heating Component for O2 Sensor 10W
- 200 Piece / Pieces per Month
- Xiamen
- D/P D/A
Product Details
Place of Origin: | Fujian, China | Brand Name: | Green | Model Number: | GR026 |
Type: | Other, O2 Sensor Heater | Material: | Alumina |
Product Description
Specifications
1.RoHS2.12V,10W O2 Sensor Component
3.Fast heating rate
4.Heating resistance:3ohm
5.Length*OD:57mm*3.6mm
We produce good quality 12V,10W Ceramic Heating Component for O2 Sensor with the advantages of long service
time, fast heating rate, energy-efficient and eco-friendly.
Customization is available.
1 | Part No. | GR026 |
2 | Usage | Ceramic heating component for car oxygen sensor |
3 | Working Voltage | 12VDC |
4 | Heating Resistance | 3.5Ω ±0.3Ω(23°C±2°C) |
5 | Dimension of product | length:57mm, diameter3.6mm |
6 | Electrode | Welding nickel wires on the surface of electrode |
7 | Advantages | (1)Long lifetime: airproof structure ; the condition of deformation .can’t exit (2)Temperature rise quickly (3)Excellent insulation (4)Energy efficient and thermal conductivity super—heating simultaneously both from inside and outside (5)Small and compact (6)Equalized heat distribution and high power density. (7)Meet RoHS requirement (8)High cost performance. |
