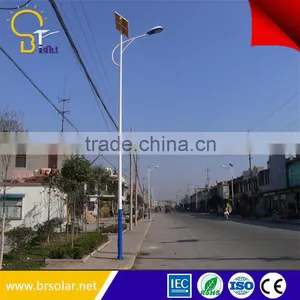

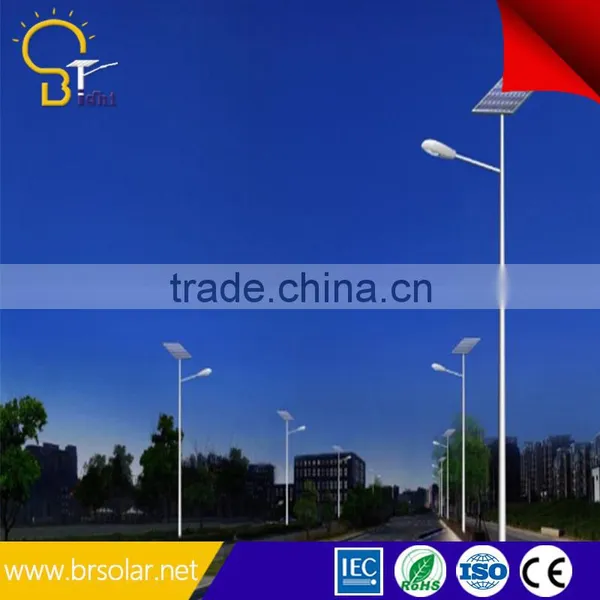

Die-casting Aluminum brightness photovoltaic solar street light with pole

FOB Price

USD $439 - $456 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port For Shanghai
Payment Terms:T/T L/C D/P D/A PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	60	Input Voltage(V):	24	Lamp Power(W):	60
Lamp Luminous Flux(lm):	7800	Lamp Luminous Efficiency(lm/w):	130	Color Temperature(CCT):	Cool White
Working Temperature(℃):	-40, +60	Working Lifetime(Hour):	100000	Lamp Body Material:	Aluminum Alloy
IP Rating:	IP66	Certification:	CCC, CE, FCC, SAA, UL	Warranty(Year):	2
Place of Origin:	Jiangsu, China	Brand Name:	BR	Model Number:	BRSSL509

Product Description

Die-casting Aluminum photovoltaic solar street light with Octagonal pole shape

Product Description

BR SOLAR Marked Main & Best Competitive Products:

1 .Solar Street Lights & LED Street Lighting 15W—120W;

2. Solar Garden Lights & Solar Landscape Lights 5W—30W;

3. Solar Battery: 4.5Ah—250Ah/12V, 200Ah—3000Ah/2V;

4. Solar Panels & Solar Modules 5W—300W Poly & Mono ;

5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating;

6. Solar Home Lighting System/Kits : 5W—5000W With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power;

Satisfy our experienced service, price quality, from your inquiry today

Working Principle for BR SOLAR Marked solar street light pole

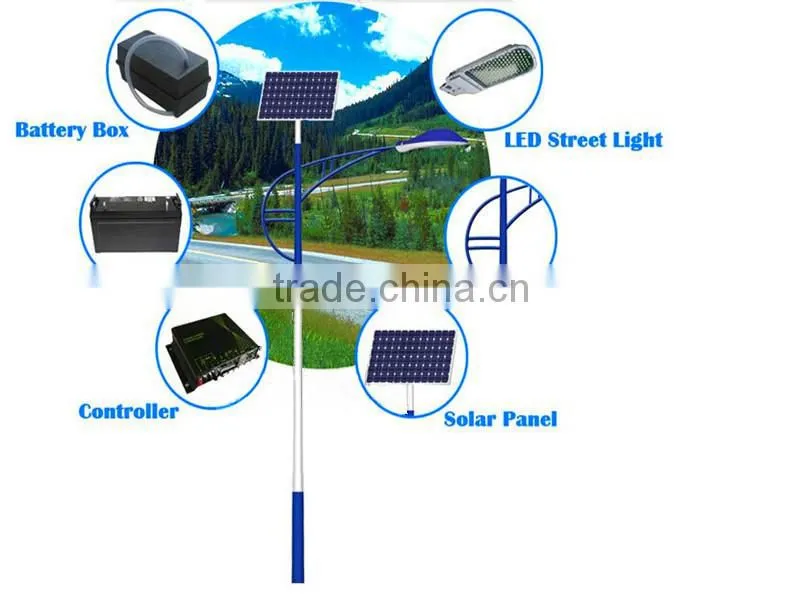

solar street light pole Composed By:

Pole Body & Pole System
Solar Panel & Panel Bracket
Solar Battery & Battery Box
Intelligent Controller
LED Lamp Fixture Or LPS Lamp
Connecting Cable, Base Foundation Bolts (J Bolts),Fittings

Technical Data-System:8M 60w solar street light pole Based On 5.0 kWh/m2/day

8M Pole Height 60W LED Street Light

11-12Hrs 3-4 Nights Lighting

Solar Panel:

Lifespan:20-25 years

200W*1PC for 24V Lighting, 17% Efficiency,
Mono Crystalline Silicon. High Efficiency.

Adding Aluminum Frame, Tempered Glass.

Gelled Battery

Lifespan:5-8 years,

120Ah/12V*2PCs, Sealed Type, Gelled.

Deep cycle. Maintenance Free

Intelligent Solar Controller,

PWM Type,

Lifespan:5-10 years

15A/24V*1PC, Automatic Light and Time Control

Over-charging/discharging Protection

Reverse-connection Protection

Switch on Automatically with Light Sensor;

Switch off after 11-12 Hrs later.

Light source: High Power LED

Lifespan: >80000Hrs,

60W*1PC LED, White Color,130LM/W,30Lux,6500K,

IP65,120 Degree Angle,
High Power, High Brightness.

Lamp Housing:

Lifespan: More than 20 years

Die-casted Aluminum, IP66

High transmittance &

density toughened glass,

Pole:

Lifespan: More than 20 years

8M Height,Steel, Hot-Dip Galvanized.

With Arm, Bracket, Flange, Fittings, Cable, Etc
Plastic Coated, Rust Proof,

Resistant to Wind: ≥150KM/H,

Check below for more information on placing an order

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, artwork, payment term etc.

3. Br sales send the Proforma Invoice with BR seal.

4. Customer make the payment for deposit and send us Bank receipt.

5.Initial Production Stage-Inform the clients that we have got the payment, And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.

6. Middle Production-send photos to show the production line which you can see your products in. Confirm the estimated delivery time again.

7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection.

8. Clients make payment for balance and Freedom Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.

9. Order can be say “finish” when you receive the goods and satisfy with them.

10. Feedback to BR about Quality, Service, Market Feedback & Suggestion. And we can do better.

Each Parts for solar street light pole :

---LED Lamp Testing:

---Solar Panel

---Solar Battery

---Galvanized Steel Pole:

---Solar Intelligent Controller:

---Stainless Steel Mirror Battery Box With Lock :

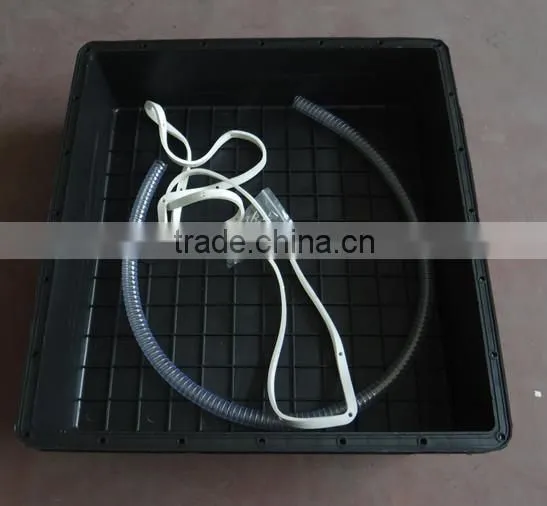

---Plastic Battery Box Underground:

---Base Foundation::

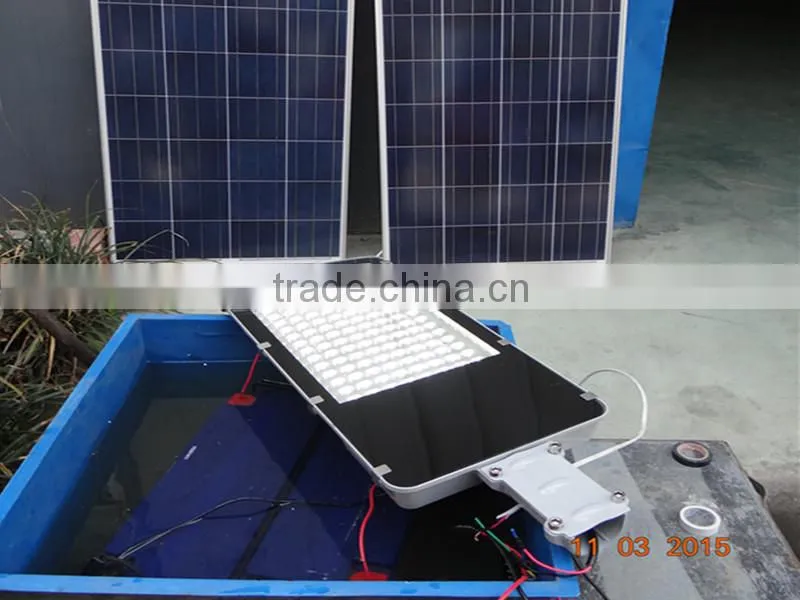

Ip65 led street light----Testing Picture of Putting Battery and controller into the water:

Terms & Conditions:

1. Price Term: FOB SHANGHAI for bulk order.

The price includes led street lamp, solar panel, controller, battery, battery box, cable and pole set (pole, rack, arm, base plate).

2. MOQ: 1 sets. For less than 1 sets, has Sample in stock for testing.

3. Payment: Typically 30% by T/T as down payment, balance by T/T before shipment or by L/C at sight.

4. Package: Export standard plywood case or carton packing suitable for tough handling and long-distance ocean transport.

5. Delivery: for 100 sets, total goods can be ready for shipment within 15 days upon down payment receiving.

6. Parts Design Service Time: Solar Panel 25 years, LED light over 80,000 hours, Controller 10 year, Battery 5~6 years, Pole 20 years.

7. Warranty: 5 years for solar panels and pole, 3 years for led street lamp, 3 years for battery and controller.

---Packing Pictures:

Samples Rules of BR SOLAR Marked solar street light pole Products:

PLs understand all our samples need charge from you because so many potential customers to ask and it is much cost for us.
And all your payed sample money,it can be deducted from your following formal orders.
Thank you again for choosing us.
We will do our best for both more solar markets.

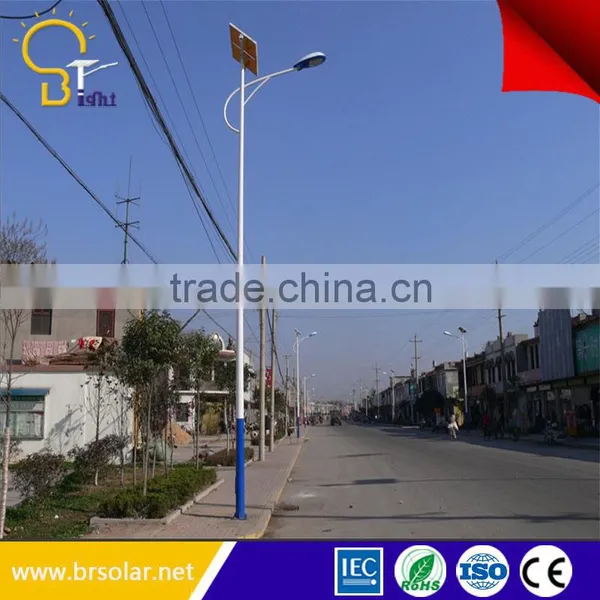

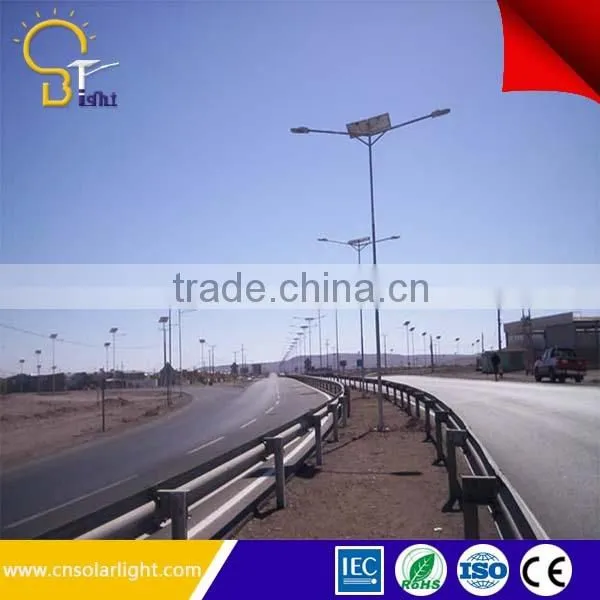

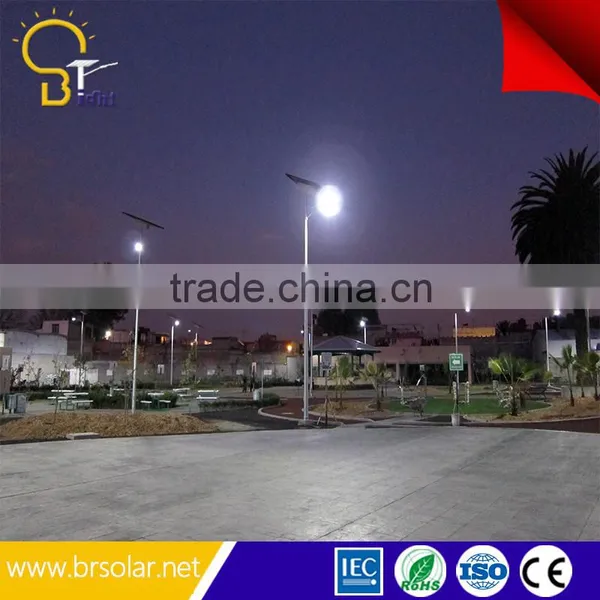

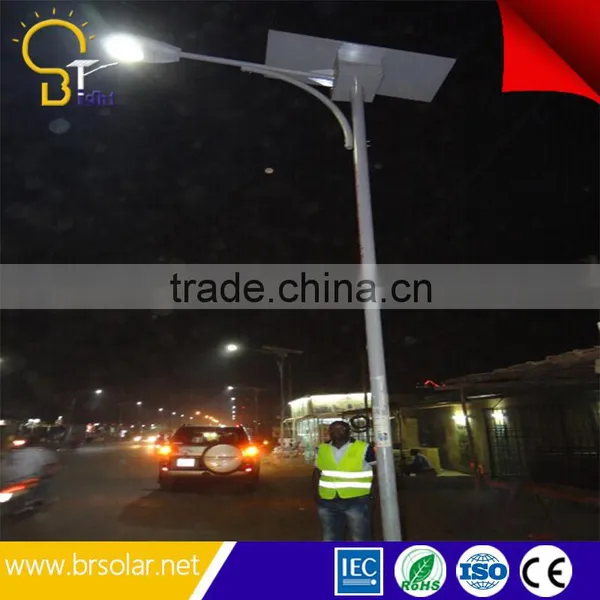

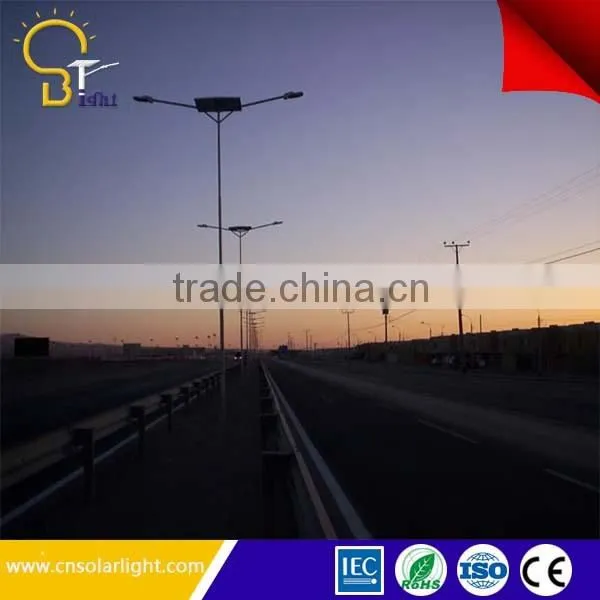

Our projects in different countries:

Company Information

About Product certification:

FAQ

FAQ:

1.Q:How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.

2.Q:How to Choose the System Voltage 12V or 24V or for normal street Light ?

A: We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light

3.Q:What’s the main difference between mono and polycrystalline solar panel?

A: production process and cost. Polysilicon technology is more mature since it is an early technology compared with Monosilicon.

4.Q:The controller of your solar street light has dual time control function?

A: our solar charge controller is designed with dual time control function, you can set up the lighting time and divide it into two parts, like 12 hours (6 hours full power lighting + 6 hours half power lighting)

About We and Our Customers:

Why Bright Solar?

1.With 8 years exporting experience

2.with ISO9001,CE,RoHS,IEC,CCC,SONCAP,FCC passed

3.With Factory Outletprice

4.With Complete In-house production

Company:

Our company is located in Guoji Town Industrial Park, north to Yangzhou with convenient transportation. Our company is a professional solar street light pole, including design, development, manufacturing, sales, and service.
After years of efforts, our company has been developing continuously and entered the high ranks of modern lighting production enterprises. Our company has the bank credit rating of AAA level and becomes a recommended building lamps brand in Jiangsu.

Basic Information:

	Product/Service (We Sell):	LED lamp,street light,solar light,garden lamp,hign mast light
	Number of Employees:	101 - 200 People

Trade & Market

	Main Markets:	South Asia North America Eastern Europe Central America Mid East
	Total Annual Sales Volume:	US$5 Million - US$10 Million
	Export Percentage:	31% - 40%

Factory Information

	Factory Size (ters):	3,000-5,000 square meters
	Factory Location:	No. 1, Xinming Road, Guoji Town, Gaoyou City, Yangzhou, Jiangsu. China
	Number of Production Lines:	3
	Number of R&D Staff:	11 - 20 People
	Number of QC Staff:	5 - 10 People
	Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Contact Us

Yangzhou Bright Solar Solutions Co., Ltd.: Contact nameDylan Yu; Phone0086-514-87600306; AddressNo. 16 At Lianyi Road,Yangzhou City,Jiangsu Province,China Yangzhou,Jiangsu
