25U Outdoor Electrical Cabinet

FOB Price

US$ 800 - 1,200 / Set

2 Sets(Min. Order)

Port Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Tianjin, China	Brand Name	Shiyu
Model Number	SK-305	Protection Level	IP55
Type	Other, 25U outdoor electrical cabinet	External Size	6508701500mm (WDH)

Packaging Details

wooden case or carton

Product Description

Waterproof metal cabinet / 25U outdoor electrical cabinet

Air conditioner cooling outdoor enclosure 25U outdoor cabinet outdoor electronic cabinet

Technology Parameter

Model	SK-305
Size	6507201490mm(WDH) (The total depth is 870mm when including air conditioner).
Internal	19 inch standard Cabinet Racks ,25U
Cooling system	You can choose from : A.300W compress air conditioner B.80W/K heat exchanger C.200W TEC air conditioner D.Fans
Material	Galvanized steel(or aluminum/stainless steel)
Color	Grey (RAL7035) or according to customer requirements
Cabinet Standard	IEC297-2; DIN41491: PART1
Protection level	IP55 /(IP54 for fans type)
Lock	Turning Waterproof Lock
Structure	Sandwitch Structure:double layer with phenolic aldehyde insulation board filled between layers.
Cable hole	In the cabinet bottom, size and quantity according to customer requirement
Power Supply	220VAC±15%,50/60Hz for 300W compresser air conditioner 48VDC for heat exchanger and TEC air conditioner
Finish	Outdoor epoxy powder
Weight:	Galvanized steel netweight is 150kg / Aluminum cabinet netweight is 80kg
Package	Wooden case with pallet / Carton
Options	a.PDU b.Alarms c. LED light

Environmental Parameter

Operating temperature range: -15 ° C to +45 ° C

Storage temperature range: -25 ° C to +55 ° C

Transport temperature range: -40 ° C ~ +70 ° C

Relative humidity: 5% ~ 95% (+40 °C ± 2 °C)

Ambient pressure: 70kPa ~ 106kPa

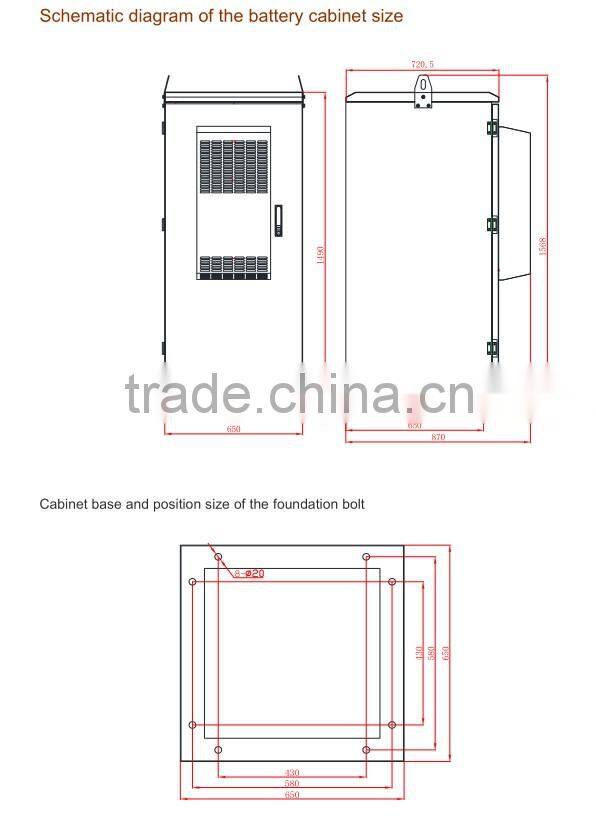

Schematic diagram of the battery cabinet size:

Other outdoor enclosure from our company:

Other products

Product picture
Model Number	SK-305	SK-27B	SK-65125
External Size	6508701490mm (WDH)	6509101300mm (W DH)	6506501250mm (W DH)
Internal Capacity	25U,19 inch rack	22U ,19 inch rack	20U ,19 inch rack
Cooling System	Air conditioner (340W)	Heat exchanger(80W/K)	Heat exchanger(80W/K)
Color	RAL9002	RAL7035	RAL7035
Weight	150kg	123kg	90kg
Mount method	On the ground	On the ground	On the ground
Product picture
Model Number	SK-76105	SK-235	SK-320B
External Size	7605501050mm (W DH)	6007501000mm (WDH)	6507201650mm (W DH)
Internal Capacity	18U ,19 inch rack	18U,19 inch rack	28U ,19 inch rack
Cooling System	Heat exchanger(80W/K)	TEC Air conditioner (200W)	Heat exchanger(80W/K)
Color	RAL7035	RAL7035	RAL7035
Weight	74kg	80kg	150kg
Mount method	On the ground	Pole mounted	On the ground
Product picture
Model Number	SK-419	SK-65100	SK-1850
External Size	120011901800mm (W DH)	6507201000mm(W DH)	650650620mm(W DH)
Internal Capacity	Battery rack	Battery rack	10U ,19 inch rack
Cooling System	Heat exchanger(80W/K)	Heat exchanger(80W/K)	TEC air conditioner(120W)
Color	RAL7035	RAL7035	RAL7035
Weight	330kg	70kg	65kg
Mount method	On the ground	On the ground	Pole mounted
Place of Origin	Tianjin, China (Mainland)
Type	outdoor cabinet/outdoor telecom cabinet
Structural Materials	SPCC (cold rolled steel),aluminum,stainless steel, according to your demand
Structure characteristics	Double-layer heat insulation structure
Protection grade	IP55
package	Wooden case with pallet

Company introduction

We offer customized cabinet ,for any further questions ,please contact Lucy !

Company Profile

Tianjin Yanxiang Electronic Science And Technology Co., Ltd.

Tianjin Yanxiang Electronic Science and Technology Co., Ltd, founded in 2001, is a high-tech company which combined R&D, produce and sale together. The main business scope include heat exchanger, heat exchanger communication cabinet, air conditioner battery cabinet, small outdoor integrated communication base station, network communication cabinet, controller, transducer and other related products. We also offer High and new technology consulting and transfer services. Our products have been sold to Europe, America, Southeast Asia and all over the world. It is also a qualified supplier for well-known domestic enterprises, such as Huawei Technology Company, Tianjin Broadcasting Network System, TT&C Network of China, some Communication Department of Liberation Party, and China Communications. We treat technology innovation as the guidance, do our best to satisfy customers design demand, and win the trust of customers by our high quality products and good after-sales service. Our company passed ISO9001 Quality System Certification in 2004, and acquired many high-tech achievements and patented technologies. Many of its projects are listed as national and Tianjins key science and technology projects. Besides, It achieved China science and technology private enterprise innovation award, won the Tianjin outstanding enterprise title. Being in the technology industry leading position, we are honored as high-tech private enterprise with vitality and credible by foreign and domestic media. Our Enterprise tenet is, it is not only to provide products, but also to provide personalized product design and technology project solution for customers. Welcome to contact us for more information.
