SK-185 Single Chamber 10U Outdoor Metal Enclosure

Model No.:                    SK-185

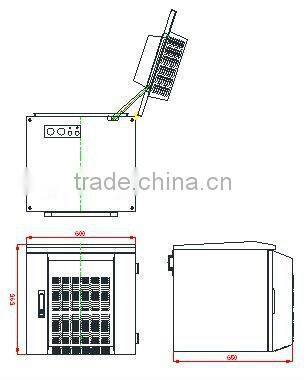

External Size:                600*650*595mm(W*D*H)

Internal Capacity:          10U ,19 inch rack

The distance between the rack and the inside face of the front door is 72mm

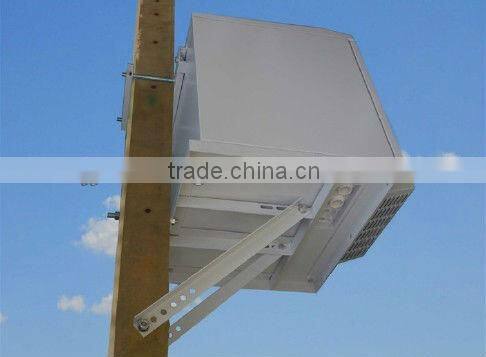

Size of Hanging On The Pole Bracket:   600*544mm

Cooling System:             TEC air conditioner (200W) installed in the door

Color:                           RAL7035

Weight:                        65KGS

Protection level:           IP55

Switch Power Supply:    48V DC 10A switch power supply of SP-500-48 is installed

                                   inside the cabinet for power supply to TEC

Structure:                     Double layer with filter to insulate heat

*  Practical design

*  Proper structure

*  Functional material,IP55 Grade

*  ISO9001-2008 Certified

*  Reasonable Low Price

* Choose best match materials according to customers inquiry purpose , such as  Waterproof, moistureproof, dustproof, and corrosion resistance

*  TT

*  AT SIGHT LC

*  others can discuss

* Wooden Box

* Customized is acceptable

* Introduction

Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone. It is a high-tech company with technology R&D and service combination as well as information and industry. Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin. The company passed the ISO9001 International Quality System Certification in 2004 January. We have acquired multiple software copyrights and invention patents. Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.

We own 20 national patents,including 5 inventions patent , other 5 techniques obtained Tianjin Science and technology achievement. Our company is granted as Tianjin Outstanding Privately Owned Enterprise .Besides, we got Chinese Privately Owned Science and Technology Enterprise Technology Innovation Award.

The company focus on the telecommunications cabinets, battery cabinets and communication engineering heat exchanger production and sales, from 2006 we begin to supply products to Huawei technology company, at present, out main customers including China Mobile, China Unicom, Huawei Technology Company and Naval Communications Department. Foreign customers from Europe, Asia, Africa, South Asia and North America and other countries speak highly of our products.

In the future, Yanxiang will stick to the aim of providing good quality products, excellent service, advanced management and pioneering technology, It will be our honor to provide clients with quality electronic science and technology products .We will reward the support from cooperative companies and concern of social circles with more excellent achievements.
