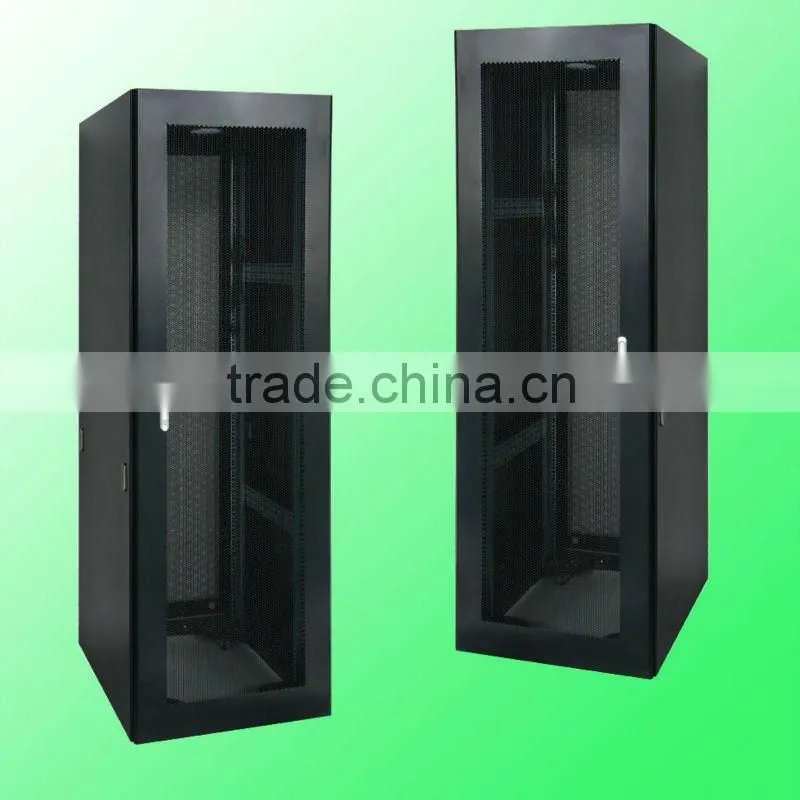

network cabinet/server cabinet/network enclosure/server enclosure 37U network cabinet

wooden case

37U network cabinet Products Description :

NCC cabinet includes numerous features that will save time and increase the installation options for the user . Supplied fully assembles as standard with transit castors and adjustable feet . If you're uncertain, utilize our expertise and recommendations until you're confident you have exactly that you need! We will build, paint and configure your server cabinet to your exact specification and ship it directly to you .

Features and benefits

• Exquisite design with precise dimension
• Frame is made of nine style and high quality special materials. It has a firm strucyure and can bear large weight .
• Meet the requirement of ANSI/EIARS-210-D, DIN41491:PART1
• Surface finish: degreasing, phosphoric, power coat
• Good ventilation and heat dispersing .
• User can add the cable fixtures accordingly .
• Powder coated to protect against rust, oxidization, scratches, lacquer peeling, strong acid and alkali erosion .
• Flexible vertical rail ‘s thickness must up to 2mm.
• Framework using high strength steel with a 800kg.weight capacity
• Rack's side panel can be easily assembled and disassembled from the outside without using any tools .
• Screw-less appearance for a smooth and clean look.
• it has been widely applied in the field of computer data network, page, wiring, Pa broadcasting, soundtrack system, subway train.

Part number configuration tool:

• Part number	Description	Width(mm)	Depth(mm)	High (mm)	Carton measurement(mm)	Carton weight
  NCC37-66-*#&	37U NCC Cabinet	600	600	1800	L 620×W 640×H 1840	95KG
  NCC37-68-*#&			800		L 620×W 840×H 1840	110KG
  NCC37-696-*#&			960		L 620×W 1000×H 1840	117KG
  NCC37-610-*#&			1000		L 620×W 1040×H 1840	125KG
  NCC37-86-*#&		800	600		L 820×W 630×H 1840	110KG
  NCC37-88-*#&			800		L 820×W 830×H 1840	125KG
  NCC37-896-*#&			960		L 820×W 1000×H 1840	132KG
  NCC37-810-*#&			1000		L 820×W 1040×H 1840	140KG
  NCC42-66-*#&	42U NCC Cabinet	600	600	2000	L 620×W 640×H 2080	110KG
  NCC42-68-*#&			800		L 620×W 840×H 2080	125KG
  NCC42-696-*#&			960		L 620×W 1000×H 2080	132KG
  NCC42-610-*#&			1000		L 620×W 1040×H 2080	140KG
  NCC42-86-*#&		800	600		L 620×W 640×H 2080	125KG
  NCC42-88-*#&			800		L 820×W 840×H 2080	140KG
  NCC42-896-*#&			960		L 820×W 1000×H 2080	147KG
  NCC42-810-*#&			1000		L 820×W 1040×H 2080	155KG
  NCC47-66-*#&	47U NCC Cabinet	600	600	2200	L 620×W 640×H 2230	125KG
  NCC47-68-*#&			800		L 620×W 840×H 2230	140KG
  NCC47-696-*#&			960		L 620×W 1000×H 2230	147KG
  NCC47-610-*#&			1000		L 620×W 1040×H 2230	155KG
  NCC47-86-*#&		800	600		L 820×W 640×H 2230	140KG
  NCC47-88-*#&			800		L 820×W 840×H 2230	155KG
  NCC47-896-*#&			960		L 820×W 1000×H 2230	162KG
  NCC47-810-*#&			1000		L 820×W 1040×H 2230	170KG

  Standard Features:

  1. Front door: smoky-gray glass door with frame punched x 1
  2. Rear door: steel casement door x 1
  3. Side door x 2
  4. Support / mounting plate for castors x 4
  5. Cage and nut x 40 ( >32U) ; Cage and nut x 20 ( < 32U )
  6. Cooling fan x 4 ( For width 600mm, depth 600mm cabinet x 2 )
  7. Fixed shelf x 3 ( > 32U) ; Fixed shelf x 2 ( < 32U  )
  8. PDU x 1
  9. Tools x 1

  technical specifications:
  samless steel board, the thickness of different parts
  Mount rail 1.5mm, Side door 0.8mm, Rack 1.2mm, smoke-gray glass door 5mm

  Description of the door:
  * = front door
  # = rear door
  A = steel casement door
  B = smoky-gray glass door with frame punched

  &= color A=Balck(RAL9004) B=Gray(front door : RAL7039,cabinet : RAL7044)

 Certification
