Specifications

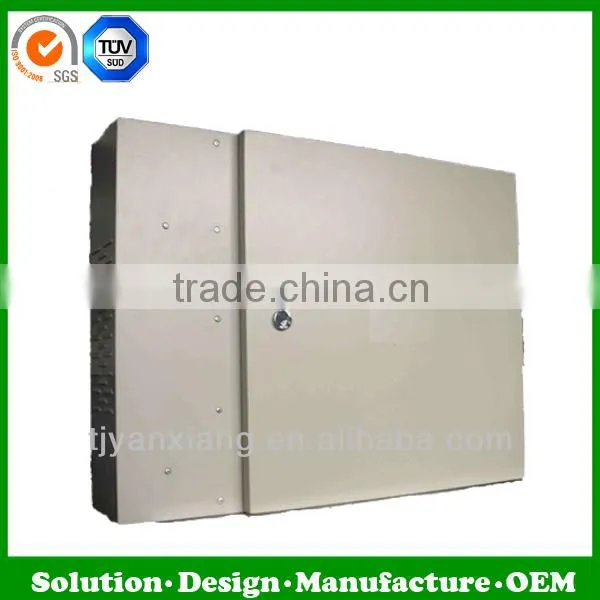

Outdoor cctv cabinet1.Waterproof and dustproof
2.External Size: 750*150*550 (WHD)mm
3.Internal Capacity:2U,19inch
Wall mounted outdoor cctv cabinet
Model: SK7555
Internal Space: 19inch×2U,Splice Tray and Cable Holder
Outer Size: 750*150*550mm
Material: Galvanizing Iron or Steel Plate, Thickness of the iron plate is 1.0mm or1.5mm.
Color: Grey (RAL7035) Or according to customers' requirements;
Environment level: IP55
Lock: It has Turning Waterproof Lock.
.
Surface painted with outdoor type static powder
There are some intake wire hole in the bottom.
It has intake wind hole under the door and match with air filter in the hole.
Dustproof and Waterproof
Cooling system: can be configured heat exchanger/air conditioner /TEC, according to user's requirements
And also could be installed with Temperature Control System and Temperature Alarm Sensors.
Environmental Parameter
Operating temperature range: -15 ° C to +45 ° C
Storage temperature range: -25 ° C to +55 ° C
Transport temperature range: -40 ° C ~ +70 ° C
Relative humidity: 5% ~ 95% (+40 °C ± 2 °C)
Ambient pressure: 70kPa ~ 106kPa
Mains Jack :220V10A3holes×4
Heat Exchange : 40W/K
Internal Circuit Fan: Japan NMB aerofoil fan 4715VL-05W 1set
External Circuit Fan: Japan NMB aerofoil fan 4715VL-05W 1set
Maxim Power Consumption: 80W
Working Temperature: -40+45
