Home > Products > Spare and accessory parts > Cutting Torch Soft Hose of CNC Cutting Machine Rubber Material

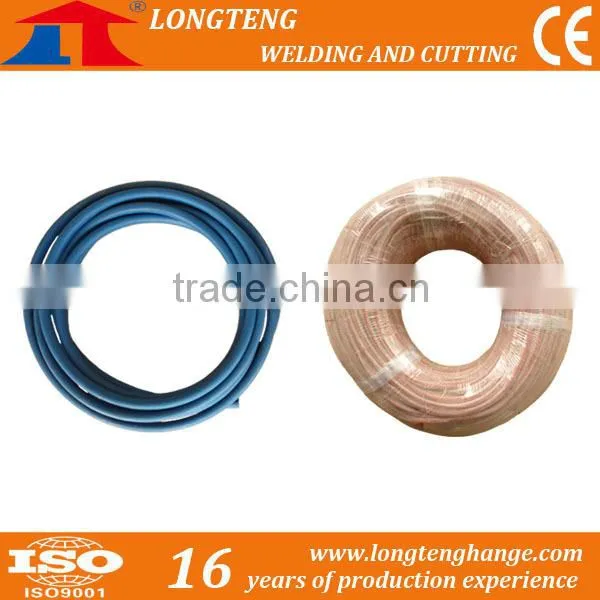

Cutting Torch Soft Hose of CNC Cutting Machine Rubber Material
- 3000 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Longteng | Model Number: | LT-XJG-3 |
Product Description
Specifications
1.10 mm Rubber Hose2. Applicable to CNC flame cutting machine
3. The material is Rubber, outer diameter is 10mm
Cutting Torch Soft Hose of CNC Cutting Machine Rubber Material
1)Quick Detail:
1.10 mm Rubber Hose
2. Applicable to CNC flame cutting machine
3. The material is Rubber, outer diameter is 10mm
2)Structural Features:
1. Adopt the isobaric preheating, use the zinc powder spraying more than 200 mesh, can be continuous powder spraying and marking, clear line, compact structure, strong and durable.
2. Suitable for automatic equipment and perform the various of complex graphic.
3)Applications:
It is applicable to digital-control cutting machine of different series. It is melts zinc powder inside storage tank with flame and spray it onto the steel plate according to design, then along the zinc powder line cutting machine conducts cutting with digital-control cutting torch. The width of the line is 0.5mm, which is adjustable.
4)Working Principles:
1. The powder spraying device has 4 gas inlet channels among which 3 are for oxygen, 1 for Fuel gas. Two outermost channels, one is for preheat oxygen, the other is for Fuel gas; The middle one is for cutting oxygen; By which it is for powder spray.
2. Firstly, screw off knurled nut, put zinc powder into storage tank and screw on the nut.
3. Secondly, ignite powder spray device, adjust cutting oxygen, open the value of powder spray gas channel, then zinc powder will be automatically sprayed onto the plane.
Standard Configuration
Gun body, regulating valve, flashback arrestor, nut, core(core can be customized according to the size of the hose)
5) Packing Details:
6)Maintenance Skills:
1. Install the Rubber Hose correctlly.
2. Replace the consumbles in time before completely damaged.
3. Keep the connection threads of the cutting clean.
4. Keep the contact area of betwween Rubber Hose and copper connectors.
5. Check if there are loose parts.
8)Competitive Advantage:
1. Professional manufacturer for CNC Cutting Machine Accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
5. Sample available
9) Certificates:
