2015 best seller industrial air transfer heat exchanger E080/N/E/D used on telecom enclosure
The heat exchanger features
(1) Energy-efficient, intelligent control according to real temperature situation of internal and external circulation, reducing energy consumption to the greatest extent.
(2) Environment-friendly, conforming to RoHS standard, low noise, no emission
(3) High protection level (IP 55), for outdoor use (-40 ~65 ºc,-40 – 155 °F)
(4) High air flow volume, make sure overall heat transfer inside the protected equipment
(5) Simple and convenient installation
(6) High reliability, maintenance free
(7) Custom design
(8) With multiple patent designs and technologies
Fans
The fans used are both 48VDC powered centrifugal fan.
Core
The heat exchanger core is using advanced patented technology design, it has good heat transfer performance and small wind resistance and using aluminum foil with special surface treatment as heat exchange medium.
Mounting
The heat exchanger unit is designed to be fixed to the inside of a cabinet.
Range of use
Communication, Electronics, wireless networks, mobile telecom base station, monitoring station, transmission equipment, communication equipment, computer, frequency converter, voltage transformer, switch equipment, automatic control equipment, high voltage control cabinet, cable TV equipment, machine tool power supply and control equipment, instrument laying rack/cabinet.
Technical parameter E080/N/E/D
1. External dimension: W404*D146*H904mm
2. Voltage: 48V DC, 50Hz/60Hz
3. Heat transfer rate: 80W/K
4. Protection level: IP55
5. Fan: 2*R1G175 (68W Power consumption)

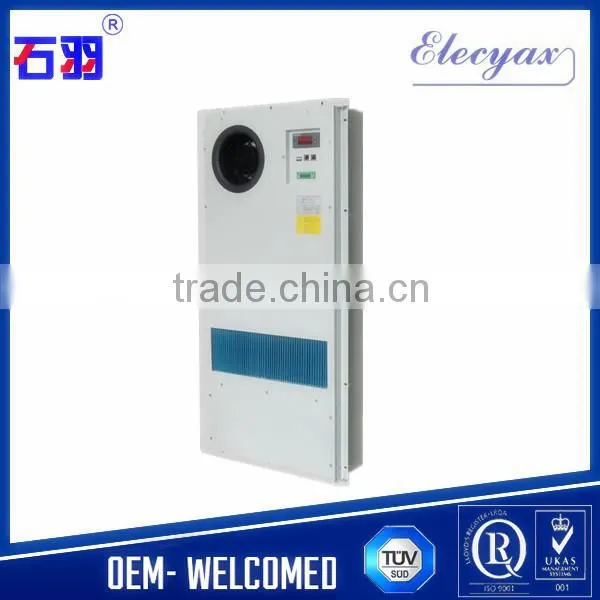

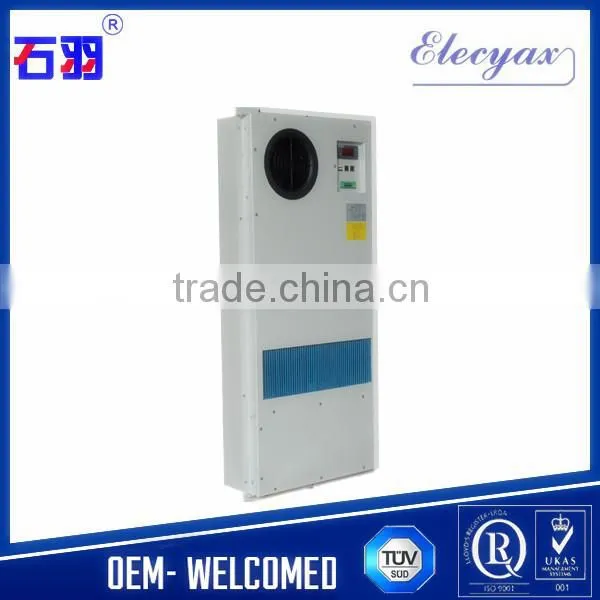

Heat exchanger E080/N/E/D Photo
Front side
Rear side
We have series of products:
DC/AC power supply heat exchanger as heat transfer rate
80W/K,90W/K,100W/K,120W/K,160W/K,180W/K, 190W/K, 200W/K, 220W/K, 230W/K, 250W/K and so on.
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
We own 20 national patents,including 5 inventions patent , other 5 techniques obtained Tianjin Science and technology achievement.
The certificate and patent
1.Are you a manufacturer?
Yes.We have 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.
