Product Details
Condition: | New | Type: | Cabinet Air Conditioner | Place of Origin: | Tianjin, China |
Brand Name: | Shiyu | Model Number: | Peltier Air Conditioner | Operating Voltage: | Other, 48VDC / 24VDC |
Mounting: | Wall / Window Mount | Certification: | CE |
Packaging Details
carton/wooden case
Product Description

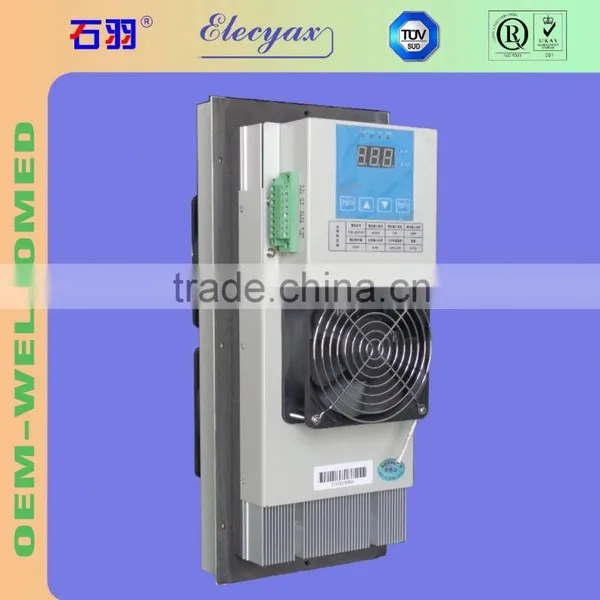

Thermoelectric cabinet air conditioner 100W to 400W
TEC air conditioner is automatic temperature control equipment using peltier refrigeration.
The internal intelligent control system, automatic control peltier device to produce cool and heat dissipation fans operate.
There is LED display screen and key-press board, friendly operation interface.
The control system offering RS485 connector, can connect with the remote computer, achieve the remote monitoring function.
This product widely used in medium and small machine room, UPS room,
operators outdoor base station equipment room, bank ATM teller machine change money room etc.
Model | 100WTEC | 200WTEC | 300W efficient TEC | 400W efficient TEC | |
Working voltage (V) | DC48V | DC48V | DC48V | DC48V | |
The performance parameters | |||||
Rated input current-A | L25 | 3.5 | 7.0 | 8 | 10 |
L35 | 3.85 | 7.5 | 8.5 | 10.4 | |
Refrigerating capacity-W | L25 | 100 | 200 | 300 | 400 |
L35 | 110 | 230 | 330 | 440 | |
Rated input power-W | L25 | 168 | 336 | 384 | 480 |
L35 | 184 | 360 | 408 | 500 | |
Heating-W | 250 | 500 | 650 | 850 | |
Circulating air volume-M3/H | 50 | 70 | 100 | 100 | |
Noise-dB(A) | 55 | 57 | 60 | 60 | |
Working environment temperature | -20℃-50℃ | -20℃-50℃ | -20℃-50℃ | -20℃-50℃ | |
Mechanical parameters | |||||
Mount method | Side mounted | Side mounted | Side mounted | Side mounted | |
Height-MM | 281 | 400 | 530 | 530 | |
Width-MM | 185 | 180 | 430 | 430 | |
Thickness-MM | 179.9 | 190.9 | 220 | 220 | |
Controller parameters | |||||
Working voltage (V) | DC48V/50Hz | ||||
Working environment | -30℃~+70℃,<90%RH | ||||
The temperature control precision-℃ | 0.1 | 0.1 | 0.1 | 0.1 | |
Power consumption-W | 5 | 5 | 5 | 5 | |
Communication mode | Dry contact/RS485/RS232/GPRS varies of communication mode are optional |
