CNC Portable CNC flame/plasma cutting machine Accessories Supplier for Gas Ignitor

Specifications

Ignition device
1.CE certificate,ISO9001:2008
2.Equipped with solenoid valve and high-voltage unit
3.Use for ignition

 CNC Portable CNC flame/plasma cutting machine  Ignition  Device/ Gas Ignitor for  CNC  Flame  Cutting  Machine



1) Quick Detail:

1. DC 24V Auto Igniter
2. Use for ignition and spark beside the flame cutting torch
3. Equipped with solenoid valve and high-voltage unit



2)Structural Features:
1. Using high frequency discharge ignition circuit and arc temperature is higher, easy to ignite the gas.
2. Auto Igniter is durable because of the special craft processing.
3. The gas solenoid valve and discharge are synchronously controlled, which can reduce waste.
4.100% inspection on critical dimensions with high accuracy +/-0.01-0.005mm

3) Applications:
Use for CNC Flame Gantry Cutting Machine and the CNC Portable Cutting machine.
Beside the cutting torch, it achieves the convenience with the automation design, which could avoid using the lighter for igniting the oxy-fuel cutting torch.

4)Working Principles:
1. The Automatic Igniter is equipped with solenoid valve and high-voltage unit, which is installed on the cutting torch to adjust the distance between the cutting nozzle and ignition source.
2. When power is on, with the help of the solenoid valve the high-voltage unit will bring about fire source, which will meet with the fire hole of the cutting nozzle to realize ignition.
3. By using the ignition device, which makes it easier to work, and can improve efficiency and reduce the inefficient combustion time of the cutting nozzle.
4. The small holder has two kinds 30mm and 32mm, which according to the O. D. Of the cutting torch for the machine use.
5. The high voltage unit is the transformer, which could transform the low voltage into the high voltage, then get the spark and ignition function, when the sparkle meet the fuel gas, which will get flame to ignite the cutting tip for cutting.

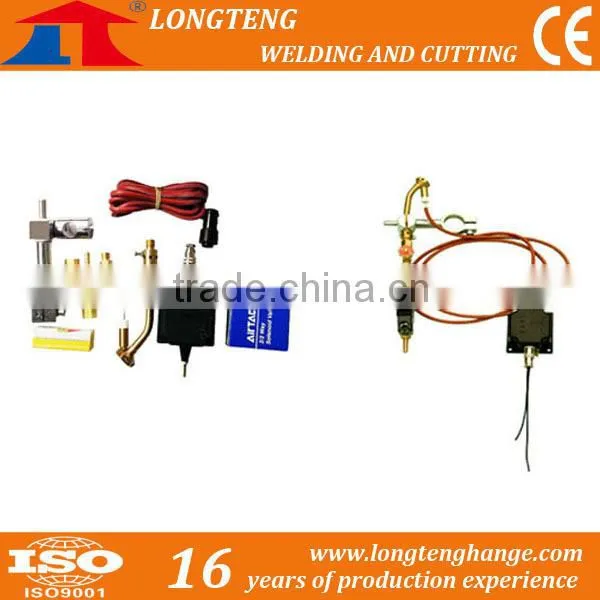

Standard Configuration
Holder: 1
High-voltage unit: 1
High-voltage cable: 1 (1.5 M)
Flashback arrestor: 1
Gas valve: 1
Solenoid valve: 1
Gas inlet assembly: 1
Copper connecting terminal: 1

A). DC24V power supply, with safe and reliable aviation connector
B). High pressure electronic igniter is used
C). Special mini-valve control is designed
D). Acetylene back flash arrester ensures no back flash impact the main gas supply pipe
E). 1/4"-LH or 6mm connector is adopted

5)Maintenance Skills:
1. Install the Ignition Device correctlly.
2. Replace the consumbles in time before completely damaged.
3. Keep the connection threads of spare parts clean.
4. Keep the contact area of betwween the Copper connectors.
5. Check if there are loose parts.

6) packing Details:

7)Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
