300W peltier cooler/48v dc air conditioner/TEC air conditioning/cooling and heating/door mount or side mount
Product introduction:
What is Peltier TEC Air-conditioner:
TEC air conditioner is automatic temperature control equipment using peltier refrigeration.
The Peltier TEC Air-conditioner advantages:
The internal intelligent control system, automatic control peltier device to produce cool and heat dissipation fans operate.
There is LED display screen and key-press board, friendly operation interface.
The control system offering RS485 connector, can connect with the remote computer, achieve the remote monitoring function.
Range of use:
This product widely used in medium and small machine room, UPS room, operators outdoor base station equipment room, bank ATM teller machine change money room etc.
Technical parameter of Peltier TEC air-conditioner cooler (100w-400w capacity):
Model |
100WTEC |
200WTEC |
300W efficient TEC |
400W efficient TEC |
|
Working voltage (V) |
DC48V |
DC48V |
DC48V |
DC48V |
|
The performance parameters | |||||
Rated input current-A |
L25 |
3.5 |
7.0 |
8 |
10 |
L35 |
3.85 |
7.5 |
8.5 |
10.4 |
|
Refrigerating capacity-W |
L25 |
100 |
200 |
300 |
400 |
L35 |
110 |
230 |
330 |
440 |
|
Rated input power-W |
L25 |
168 |
336 |
384 |
480 |
L35 |
184 |
360 |
408 |
500 |
|
Heating-W |
250 |
500 |
650 |
850 |
|
Circulating air volume-M3/H |
50 |
70 |
100 |
100 |
|
Noise-dB(A) |
55 |
57 |
60 |
60 |
|
Working environment temperature |
-20℃-50℃ |
-20℃-50℃ |
-20℃-50℃ |
-20℃-50℃ |
|
Mechanical parameters | |||||
Mount method |
Side mounted |
Side mounted |
Side mounted |
Side mounted |
|
Height-MM |
281 |
400 |
530 |
530 |
|
Width-MM |
185 |
180 |
430 |
430 |
|
Thickness-MM |
179.9 |
190.9 |
220 |
220 |
|
Controller parameters | |||||
Working voltage (V) |
DC48V/50Hz |
||||
Working environment |
-30℃~+70℃,<90%RH |
||||
The temperature control precision-℃ |
0.1 |
0.1 |
0.1 |
0.1 |
|
Power consumption-W |
5 |
5 |
5 |
5 |
|
Communication mode |
Dry contact/RS485/RS232/GPRS varies of communication mode are optional |
||||

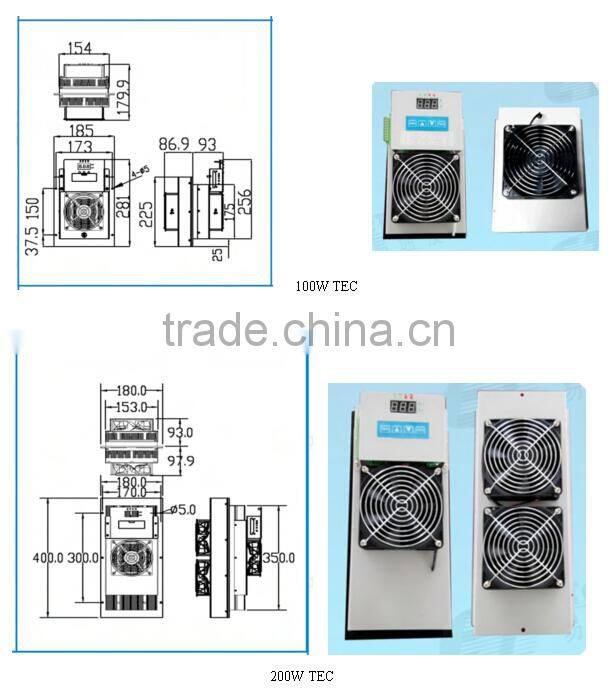

The General view of the 100w-400w Peltier TEC Cooler:

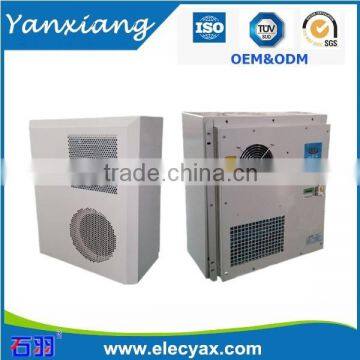

The photo of the 300w Peltier TEC cooler:
Factory photo:
