Specifications

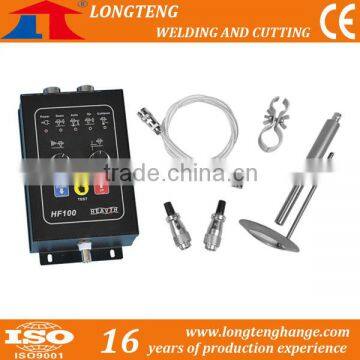

Capacitance height controller1.Full-enclosed design
2.dust-proof
3.vibration-proof
4.moisture-proof
1. Flame cutting torch height controller
2. Apply to flame cutting,plasma cutting,laser cutting
3. Power supply: DC24V
2)Structural Features :
1. Designed for portable CNC cutting machine
2. High induction sensitivity, run smooth and stable
3. Set upper and lower limit switch inside, reduce the loss of motor, prolong the service life.
3) Applications:
Used for cutting torch auto height control of flame cutting machine, it is suitable for vast majority of imported or domestic models of flame.
4)Working Principles:
Using basic constant current of flame power source characteristics, by testing the change of flame arc voltage to test the change of Fame cutting torch height in the process, realize the control of cutting torch height.
5) Specifications:
Model Number |
LT-TG-01 |
Brand Name |
Longteng,OEM |
Place of Origin |
Wuxi, China (Mainland) |
Certification |
CE,ISO |
Loading Port |
FOB Shanghai |
Driving Mode |
Electric |
Mains Supply |
AC24V±10%,50/60 Hz, 100 W |
Lifter Motor |
DC24V motor,1-4A |
Control Box(Temperature) |
-10-60°C |
HF Cable |
-55°C~200°C |
Sensor Distance |
5mm-20mm,adjustable |
Accuracy |
±0.1mm |
Length of HF Cable |
1000mm |
Sensor Type |
Ring |
Sensor Dimensions |
Outer diameter 80 mm,Inner diameter 40 mm |
Housing Dimensions |
180 mm x 100 mm x 65 mm(L×W×D) |
Weight |
Controller box 0.9 kg |
|
Controller box with sensor components1.3 kg |
