Help Center3 Outlet Gas Separation Panel for CNC Flame Cutting Machine
Related Products
-
4 Outlet Gas Separation Panel for CNC Flame Cutting MachineUS$ 95.5 - 213.5MOQ: 1 Unit -
5 Outlet Gas Separation Panel for CNC Flame Cutting MachineUS$ 95.5 - 213.5MOQ: 1 Unit
-
6 Outlet Gas Separation Unit for CNC Flame Cutting MachineUS$ 95.5 - 213.5MOQ: 1 Unit
-
9 OutletGas Separation Panel for CNC Flame Cutting MachineUS$ 95.5 - 213.5MOQ: 1 Unit
-
10 Outlet Gas Separation PanelUS$ 95.5 - 213.5MOQ: 1 Unit
Specifications
Gas separation panel1.used in multi-head flame straight strip cutting machines
2.used in digital control cutting machines

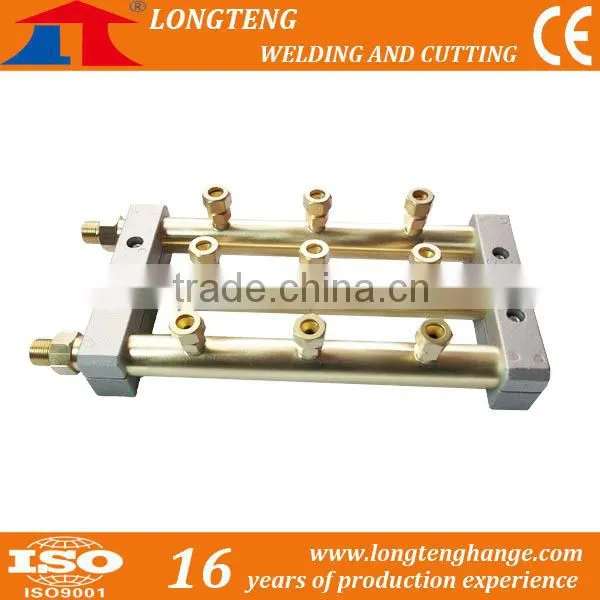

3 Outlet Gas Separation for CNC Flame Cutting Machine
1) Quick Detail:
1.3 outlet gas separation panel
2. Apply to flame or digital control cutting machine
3. Material: Brass
2)Structural Features:
1. It adopts silver solder for the pipe system,which can effectively avoid leakage.
2. It uses replaceable joint at the inlet end,which can be replaced according to custmers' needs.
3. With standard configuration at the gas outlet end,end-ring can be used to control the number of gas path needed.
4. The number of gas separation panel groups can be customized according to customers' needs.
3)Applications:
It is used in multi-head flame straight strip cutting machines or digital control cutting machines, and can be used after connecting the separation panel joint with the cutting blowpipe.
4)Specification
| Model No. | gas service | inlet connection | outlet connection |
| FLLTX | oxygen | G1/2" /G3/8" -RH(M) | M12×1.25/M16×1.5-RH |
| FLLTY | fuel gas | G1/2" /G3/8" -RH(M) | M16×1.5-LH |
