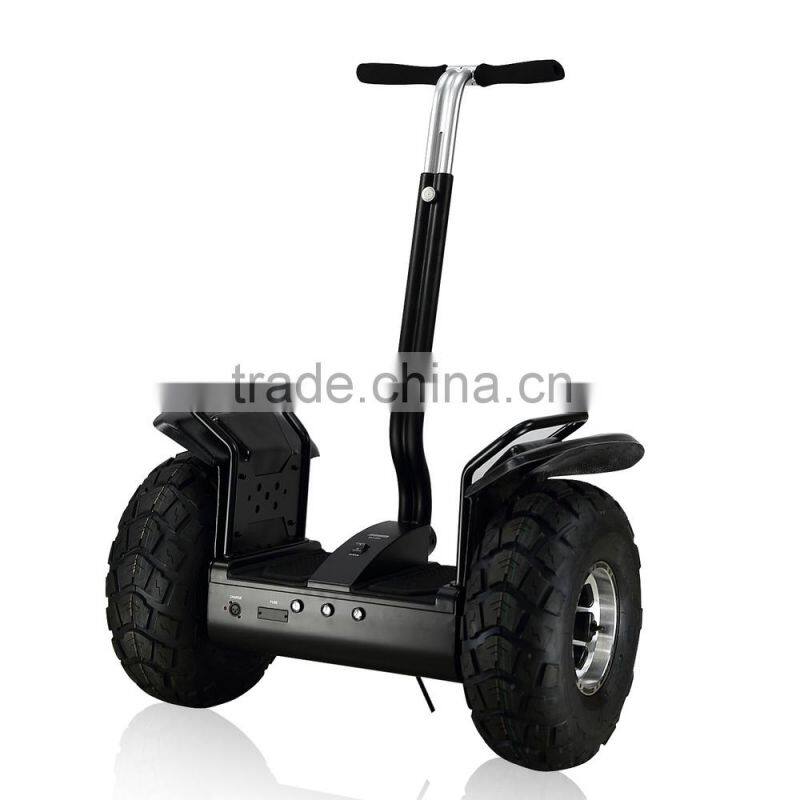

Help CenterSunnytimes-Lithium Battery for Kids Electric Scooter 36V
Related Products
-
Sunnytimes-Lithium Battery for Waterproof Electric Scooter 72VUS$ 145 - 150MOQ: 1 Piece -
Sunnytimes-Electrical Components for Self Balancing Scooters Off-roadUS$ 145 - 150MOQ: 1 Piece
-
Sunnytimes-Tire and Wheels for Self Balancing Scooters Off-roadUS$ 145 - 150MOQ: 1 Piece
-
Sunnytimes-Mainboard for Self Balancing ScootersUS$ 125 - 130MOQ: 1 Set
-
Sunnytimes-Mainboard for Self Balancing ScootersUS$ 125 - 140MOQ: 1 Set

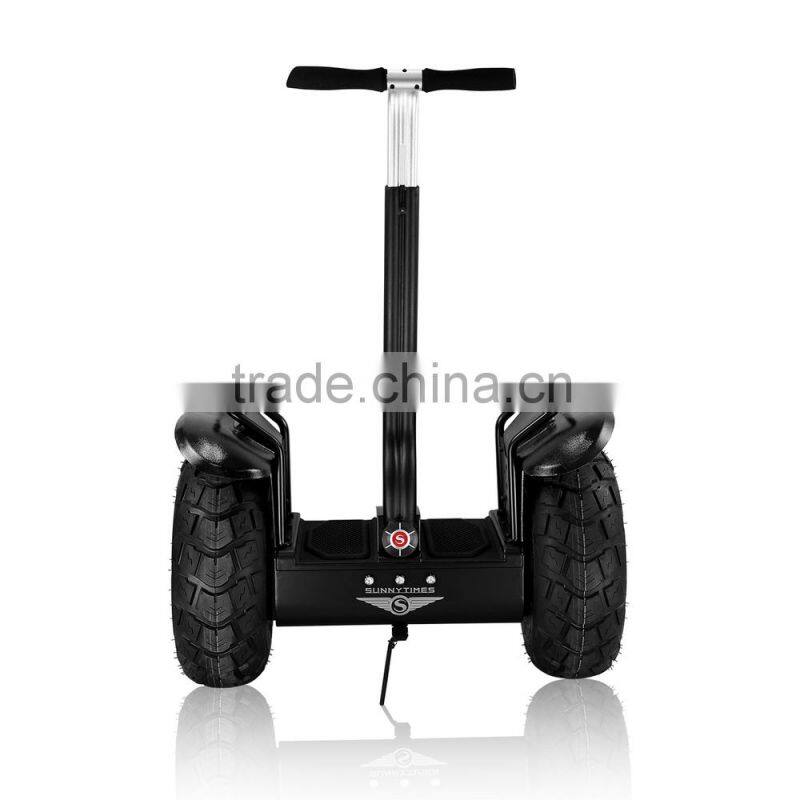

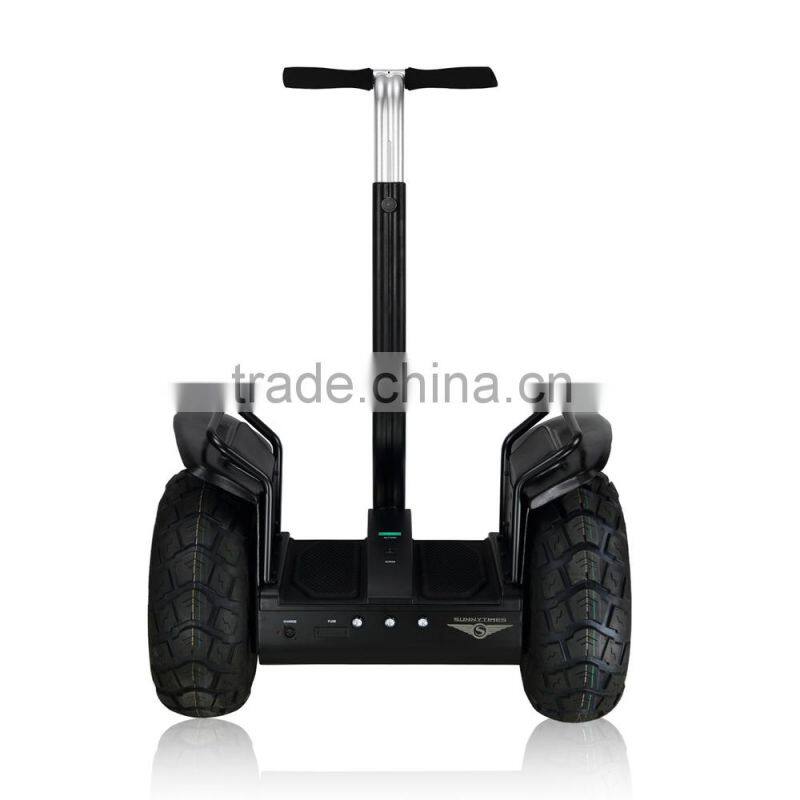

Specifications
Max loading:130 kgMax Speed:20KM/H
Motor: 2000Watt
Max mileage: 35-45km
Certificate: CE, FCC, ROHS

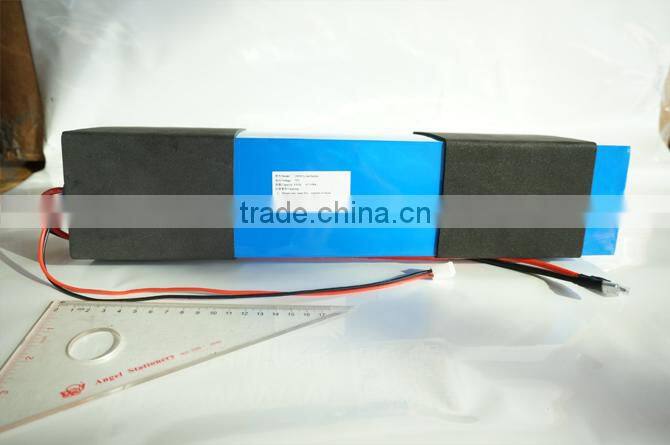

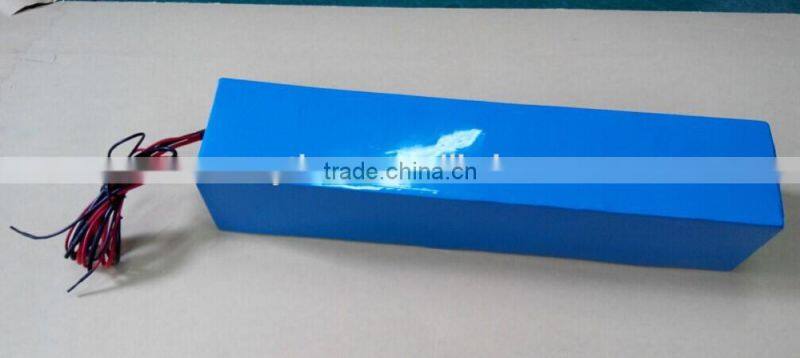

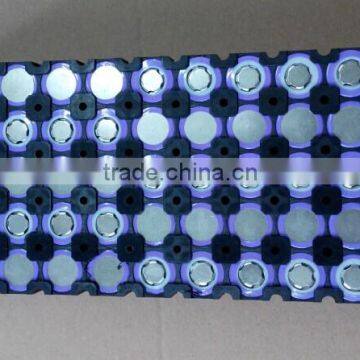

Lithium battery 36V for balancing electric scooter 2000w:
Lithium-ion Rechargeable Battery Pack Specification
Product Name : Li-ion Battery Pack
|

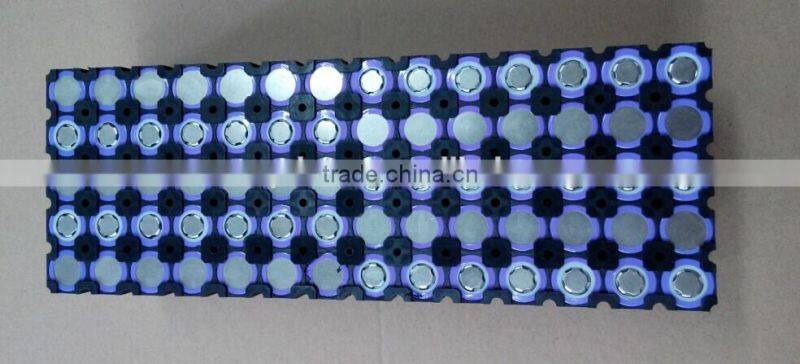

Cell
|
No. |
Item |
General Parameter |
Remark
|
|
1 |
Rated Capacity |
Typical |
2200mAH |
Standard discharge(0.2C5A) after Standard charge |
|
Minimum |
2200mAH |
||||
2 |
Nominal Voltage |
3.62V |
Mean Operation Voltage |
||
3 |
Internal Impedance |
≤35mΩ |
Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
||
4 |
Dimension |
Width:18.4mm |
Initial Dimension
|
||
Hight:65mm | |||||
5 |
Weight |
35.5g |
|
||
6 |
Standard charge
|
Constant Current 0.5C5A Constant Voltage: 4.2V±0.05V
|
Charge time : Approx3 H |
||
7 |
Rapid Charge
|
Constant Current 1C5A Constant Voltage: 4.2V±0.05V Discharge: -20~60℃ |
|||
Table 2
|
Package
|
No.
|
Item
|
General Parameter
|
Remark
|
13 |
Storage Temperature Range
|
Less than 6 months : -20~25℃
|
60±25%R.H. at the shipment state
|
|
|
less than 3 months: -20~40℃
| ||||
|
Less than 7 day : -20~65℃
| ||||
14 |
Dimensions |
95mm ×98mm×300 mm |
|
|
15 |
Weight |
3.5±0.1Kg |
|
Table 3
BMS Protection Circuit Parameter
Model:BWPB-087-20S-15A-02XX-0509B
Item |
Content |
Criterion |
|
Over Charge Protection
|
Cell Over charge detection voltage
|
4.25±0.05V |
Cell Over charge release voltage |
4.15±0.05V |
|
|
Over Discharge Protection
|
Cell Over discharge detection voltage
|
2.75±0.08V |
|
Cell Over discharge release voltage
|
3±0.1V |
|
|
Rated operational current
|
≤15A |
|
|
Over current protection
|
Over current detection current
|
85±10A |
|
Charge current detection current
|
8±2A |
|
|
Short Protection
|
Detection Condition
|
Exterior Short Circuit
|
|
Release Condition
|
Cut Short Circuit
|
|
|
Current Consumption
|
Current Consume
|
≤30μA |
|
Temperature Protection
|
Over Temperature
|
75±5℃ |
|
Recovery Temperature
|
55±10℃ |
|
|
Balanced
|
Start Balanced Voltage
|
4.15±0.05V |
|
Balanced current
|
50±5mA |

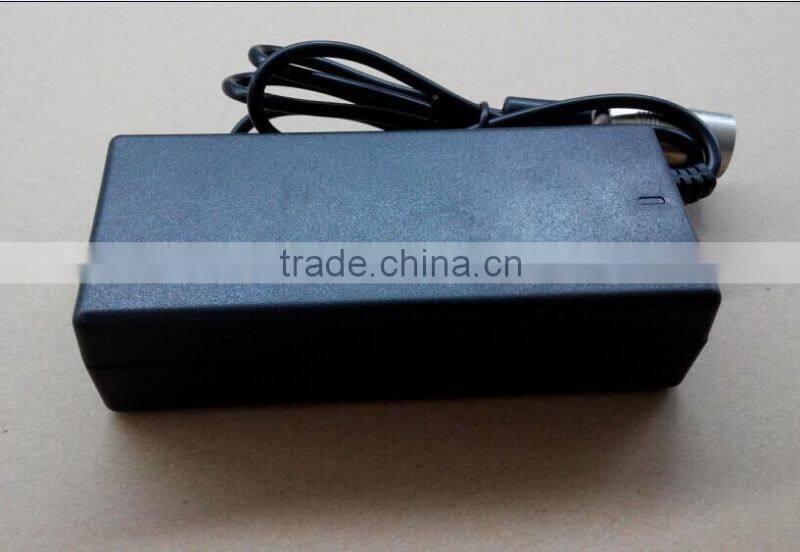

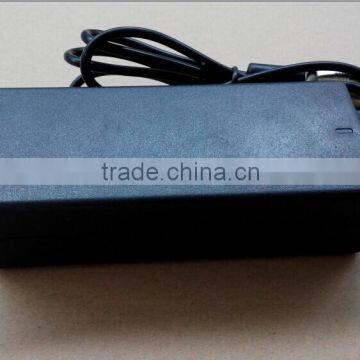

2.Charge Instruction
When the battery is low,The battery needs recharging. steps are as follows:
Connect AC line with Charger AC socket
Connect AC line with the Alternating Current (100V~240V)
Voltage output by the DC line
Connect the charger output DC plug with the battery pack input connector
Charge guide
Power on: the charger led is green lighting
Charging: the charger led turn to red lighting
Saturated charging: the charger led turn to green lighting
3, Cautions In Use
To ensure proper use of the battery please read the manual carefully before using it.
. Handling
- Do not expose to, dispose of the battery in fire.
- Do not put the battery in a charger or equipment with wrong terminals connected.
- Avoid shorting the battery
- Avoid excessive physical shock or vibration.
- Do not disassemble or deform the battery.
- Do not immerse in water.
- Do not use the battery mixed with other different make, type, or model batteries.
- Keep out of the reach of children.
. charge and discharge
- Battery must be charged in appropriate charger only.
- Never use a modified or damaged charger.
- Do not leave battery in charger over 24 hours.
. storage
- Store the battery in a cool, dry and well-ventilated area.
. disposal
- Regulations vary for different countries. Dispose of in accordance with local regulations.
4, Battery Pack operation instruction
4.1 Charging
Charging current:Cannot surpass the biggest charging current which in this specification book stipulated.
Charging voltage:Does not have to surpass the highest amount which in this specification book stipulated to decide the voltage.
Charge temperature:The battery must carry on the charge in the ambient temperature scope which this specification book stipulated
Uses the constant electric current and the constant voltage way charge, the prohibition reverse charges. If the battery positive electrode and the cathode meet instead, can damage the battery.
The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.
4.3 Electric discharge temperature
The battery discharge must carry on in the ambient temperature scope which this specification book stipulated
4.4 Over-discharges
After the short time excessively discharges charges immediately cannot affect the use, but the long time excessively discharges can cause the battery the performance, battery function losing. The battery long-term has not used, has the possibility to be able to be at because of its automatic flashover characteristic certain excessively discharges the condition, for prevented excessively discharges the occurrence, the battery should maintain the certain electric quantity.
4.5 Storing the Batteries
The battery should store in the product specification book stipulation temperature range. If has surpasses above for three months the long time storage, suggested you should carry on additional charge to the battery
4.6 Other The Chemical Reaction
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as charge, discharge, ambient temperature, etc. are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. If the batteries cannot maintain a charge for long periods of time, even when they are charged correctly, this may indicate it is time to change the battery.
Note: Any other items which are not covered in this specification shall be agreed by both parties.
PACKING:
G.W: 5kg
Dimension: 15*5*6 /per pc/carton
Double package protect.Make sure that it is safe in deliver.
Inner package: Carton
Outside package: Carton
SHIPPING:
Within 3-7 working day after got the payment confirmation.
Certificates:
