Fuel Gas Single Side Gas Cylinder Manifold For Gas Supply
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Longteng
Model Number:
LT-HL-03
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Three Groups of Oxygen Double-side Gas Cylinder Manifold For Welding MachineNegotiableMOQ: 1 Piece -
Oxygen Single-side Gas Cylinder Manifold For Welding And CuttingNegotiableMOQ: 1 Piece
-
Oxygen Double-side Gas Cylinder Manifold For Gas SupplyNegotiableMOQ: 1 Piece
-
Gas Cylinder Manifold For Gas SupplyNegotiableMOQ: 1 Piece
-
Oxygen Cylinder ManifoldNegotiableMOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Longteng
Model Number
LT-HL-03
Specifications
Fuel gas cylinder manifold1. specially designed for use of single gas source
2.Use for gas supply systems

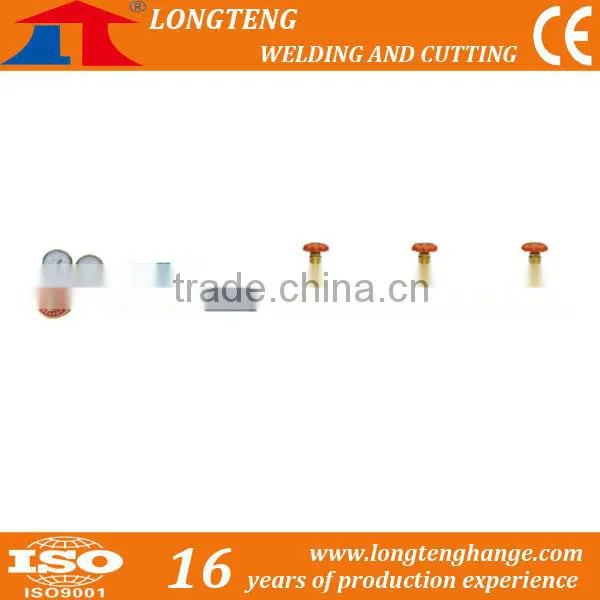

Fuel Gas Single Side Gas Cylinder Manifold For Gas Supply
1) Quick Detail:
1. Fuel gas single-side gas cylinder manifold
2. distribute a single gas from two or more cylinders
3. Material:brass
2) Description:
1> Gas Cylinder Manifold Meaning
Gas cylinder manifold are used to connect two or more high pressure cylinders together for higher flow rates or for higher storage capacity. The manifolds could be arranged in a single row or in cases where space is a constraint, could be arranged facing each other. In most cases, to ensure zero downtime, at a time only cylinders in one of the rows is used. When gas in this row is depleted, the gas in the other row is used and cylinders in the earlier row are sent for refilling. The manifold system could be made of brass or SS.
The cylinders are connected using flexible hose to the manifold block valve mounted on the manifold block. The manifold blocks on one arm of the system are connected by a header pipe. The pressure on manifold arm is indicated by the pressure gauge. The manifold arm is connected to the pressure regulator through a non-return valve and a needle valve. The drawing on the right illustrates the connection details of the manifold valve and the pressure gauge on the manifold. Below is the image of a 1x1 manifold system used to connect calibration gas to the laboratory.
Please note that the manifolds are designed to distribute a single gas from two or more cylinders. Never mix gases in a manifold since this could be hazardous.
2> Standard Configuration
1. High pressure hoses are metal hoses, or oxygen cylinder manifold uses red copper pipes, the acetylene cylinder manifold uses chrome plated metal stainless steel pipes.
2. Flashback arrestor at the outlet of the acetylene and propane cylinder manifold.
3. For use of acetylene and propane cylinder manifold, the connecting cylinder rack, T-shaped wrench and adaptor are fitted at the outlet end of the acetylene and propane cylinders.
4. Adopting pressure reducer with large flow.
3) Applications:
It is specially designed for use of single gas source, and can be widely used as a standby system for the main gas source or other gas sources like tank gas.
4) Specifications:
Model Number |
LT-HL-03 |
Brand Name |
Longteng,OEM |
Place of Origin |
Wuxi, China (Mainland) |
Certification |
CE,ISO |
Loading Port |
FOB Shanghai |
Wearing Capacity |
0.2 |
Impact Strength |
15(Mpa) |
Pipeline Thickness |
2(mm) |
Friction Coefficoent |
0.1 |
Fluid available |
Fuel Gas |
Material |
Stainless steel |
Rated Flow |
60m³/h |
Using Temperature Range |
-40°C-75°C |
5) Competitive Advantage:
1> Product Advantage:
1. Open structure design
2. Piping system adopted the sliver brazing,which can prevent leakage effectively.
3. Blind plug at the pipe end for possible extensive
4. System is equipped with gas filter device,which can filter the dust in the gas effectively.
5. Reserved the pressure switch interface
6. The whole system passed pressure test, safe and reliable.
7. Either wall or horizontal installation
