Specifications
Gas Cutting Torch1.CE certificate,ISO9001:2008
2.Made of high quality forging brass
3.Minimum cutting width is 27 mm
Flat Double Head Cutting Torch For CNC Flame Cutting Machine / Gantry CNC Cutting Machine
1) Quick Detail:
1. Flat double head cutting torch
2. High effective and convenient
3. The range of cutting width:27-420mm
2) Description:
1. Flat Double Head Cutting Torch is a high effective cutting accessory tool.
2. It can apply simple and economic method to increase the number of cutting torch, and can set up and remove very conveniently.
3. When it is used on strip cutting machine, it can not only increase the number of cutting torch, but also can reach the minimum cutting width 27mm that can not reach before.

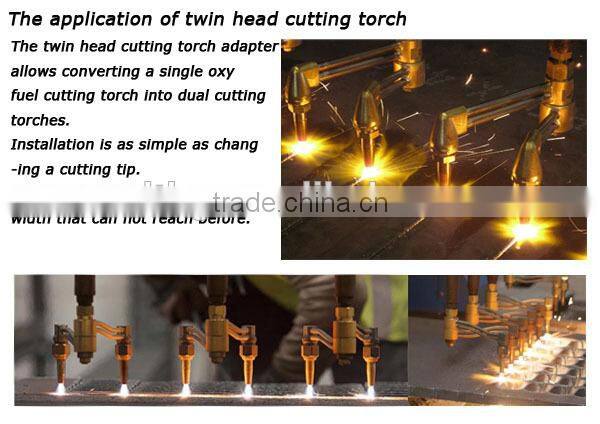

3) Applications:
The flat double head cutting torch is widely used in the CNC flame cutting machine,straight cutting machine and so on,can apply to the narrow spacing steel plate cutting and improve labor productivity.
4) Specifications:
Model Number |
LT-DGJ |
Brand Name |
Longteng, OEM |
Place of Origin |
Wuxi, China (Mainland) |
Certification |
CE,ISO |
Loading Port |
FOB Shanghai |
Payment Terms |
T/T, L/C, Western Union |
Material |
Brass |
Total Length |
150mm |
Wall Thickness |
0.8mm |
Cutting Range |
27-420mm |
Cutting Tip Type |
GO2/GO3 |
Woking pressure |
1 KN |
Model No. |
Cutting Thickness (mm) |
Cutting Angel |
Cutting Tip Type |
Tip Taper Angle |
Minimum Cutting Width (mm) |
Minimum Cutting Width (mm) |
DGJ |
150 |
0-45 |
G02 /G03 |
30 |
27 |
420 |
5) Competitive Advantage:
1> Product Advantage:
1. Improve the labor productivity.
2. It is convenient to set up and remove.
