250mm CNC Oxy-Fuel Cutting Torch For Gantry Cutting Machine

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Longteng
Model Number	LT-SJ-04	Type	Cutting Torch
Welding Type	Gas Torch	Welding Capacity	Strong

Product Description

Specifications

250 Machine Cutting Torch
1.CE certificate,ISO9001:2008
2.Made of high quality forging brass
3.Balanced pressure structure

180mm Oxy-Fuel Flame Cutting Torch For CNC Flame Cutting Machine

1) Quick Detail:

1. Machine use flame cutting torch

2. For CNC flame cutting machine

3. Balanced pressure structure design cutter to cut the steel plate

2) Description:

1> Structural Features

1. It is made of high quality forging brass.

2. Balanced pressure structure design.

3. It adopts silver solder, which can effectively avoid leakage.

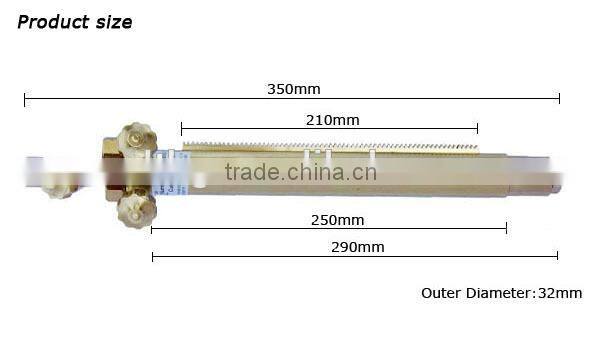

4. O.D.of the tube: 30 mm and 32mm.

5. The length of the tube: 180mm,250mm,300mm,370mm,450mm.

6. The gear rack can be installed at 4 different positions with 90 degrees between two positions.

7. It is suitable for balanced pressure cutting nozzle/tip with cone of 30 degrees.

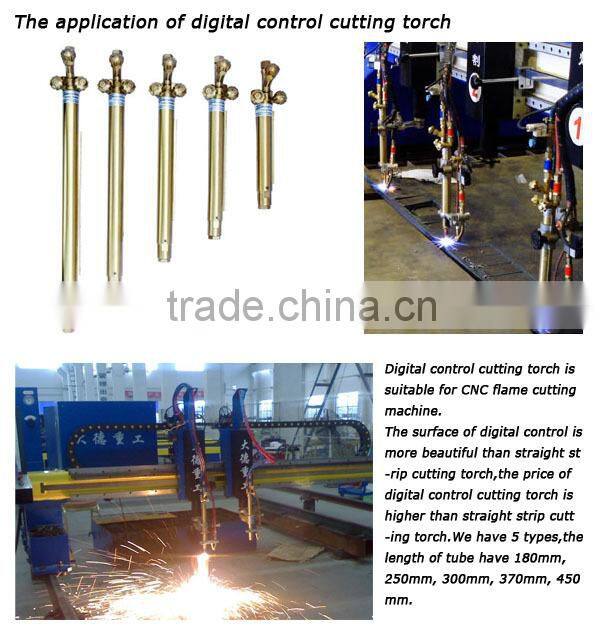

3) Applications:

Machine Use Digital Control Cutting Torch is suitable for use in digital control flame cutting machines, and is used to connect the cutting nozzles/tips, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. The fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.

During the cutting process, an oxy-fuel cutting torch is used to heat metal to its kindling temperature, and each cutting torch has three valves to control the gas, two blue valves for oxygen, one red valve for fuel gas. From Left to Right for each is the preheating oxygen, the cutting oxygen, the fuel gas.

The torch needs to match with the cutting tip for cutting, and the different type of cutting tip uses for cutting different thickness of the steel plate. According to different height of the CNC flame cutting machine, the clients will choose the different length oxy-fuel cutting torch.

4) Specifications:

Model Number	LT-SJ-04
Brand Name	Longteng, OEM
Place of Origin	Wuxi, China (Mainland)
Certification	CE,ISO
Loading Port	FOB Shanghai
Payment Terms	T/T, L/C, Western Union
Material	Brass
Outer Diameter	30mm/32mm
Driving form	Automatic
Electric current	Direct(A)
Type	Injection-type torches
Woking pressure	254 KN

Thimble Length(mm)	Cutting Thickness(mm)	Rack Length/Modulus	Acetylenecutting tips	Propane cutting tips	Inlet connection
180	300	/	G02#0-#5	G03#0-#5	M16*1.5
250	300	150/1	G02#0-#5	G03#0-#5	M16*1.5
300	300	210/1	G02#0-#5	G03#0-#5	M16*1.5
370	300	210/1	G02#0-#5	G03#0-#5	M16*1.5
450	300	310/1	G02#0-#5	G03#0-#5	M16*1.5
