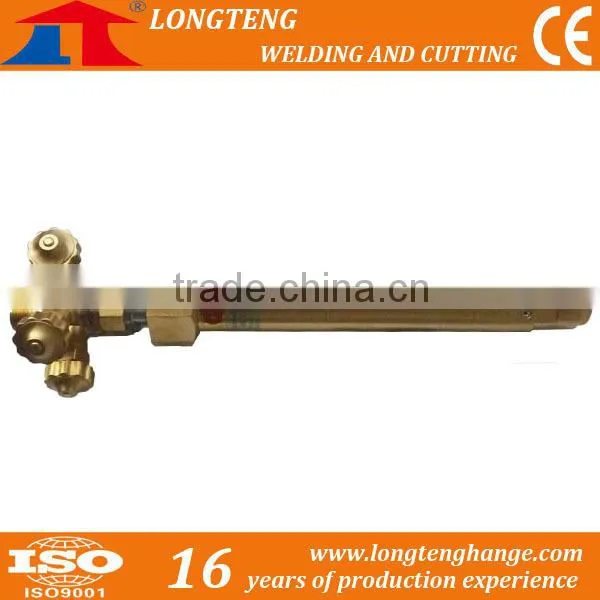

British 200mm CNC Cutting Torch For CNC Flame Cutting Machine

British 200mm CNC Cutting Torch For CNC Flame Cutting Machine thumbnail-1
British 200mm CNC Cutting Torch For CNC Flame Cutting Machine photo-1
US$ 60 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Longteng
Model Number:
GJ
Contact Supplier Request Quote Chat Now
Wuxi Longteng Welding And Cutting Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Longteng
Model Number GJ
Type Cutting Torch
Welding Type Gas Torch
Welding Capacity strong

Specifications

Machine Cutting Torch
1.CE certificate,ISO9001
2.made of high quality forging brass
3.balanced pressure strucutre design

British 200mm CNC Cutting Torch For CNC Flame Cutting Machine



1) Quick Detail:
1. British 200mm machine use flame cutting torch
2. For CNC flame cutting machine
3. Balanced pressure structure design cutter to cut the steel plate


2) Description:
1> Structural Features
1. It is made of high quality forging brass.
2. Balanced pressure structure design.
3. It adopts silver solder, which can effectively avoid leakage.
4. The gear rack can be installed at 4 different positions with 90 degrees between two positions.
5. It is suitable for balanced pressure cutting nozzle/tip with cone of 30 degrees.



3) Applications:
Machine Use Digital Control Cutting Torch is suitable for use in digital control flame cutting machines, and is used to connect the cutting nozzles/tips, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. The fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.

During the cutting process, an oxy-fuel cutting torch is used to heat metal to its kindling temperature, and each cutting torch has three valves to control the gas, two blue valves for oxygen, one red valve for fuel gas. From Left to Right for each is the preheating oxygen, the cutting oxygen, the fuel gas.

The torch needs to match with the cutting tip for cutting, and the different type of cutting tip uses for cutting different thickness of the steel plate. According to different height of the CNC flame cutting machine, the clients will choose the different length oxy-fuel cutting torch.


4) Specifications:

Model Number

LT-GJ

Brand Name

Longteng, OEM

Place of Origin

Wuxi, China (Mainland)

Certification

CE,ISO

Loading Port

FOB Shanghai

Payment Terms

T/T, L/C, Western Union

Material

Brass

Working form

other

Driving form

Automatic

Electric current

Direct(A)

Outer Diameter

30mm

Woking pressure

254 KN




Thimble Length(mm)

Cutting Thickness(mm)

Rack Length/Modulus

Acetylenecutting tips

Propane cutting tips

Inlet connection

200

300

/

G02#0-#5

G03#0-#5

OxygenG3/8",G1/4"

FuelG1/4"
