Pnme Propane Cutting Nozzle, Welding and Cutting Cutting Torch for CNC Cutting Machine

FOB Price

US$ 2 - 5 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Longteng
Model Number	LT-GZ-PNME-1	Type	Machining Parts
Material	Other, Brass, Brass	Plating	Other, Brass
Certification	Other, CE, ISO, CE,ISO

Product Description

Specifications

1. CNC Cutting Machine Cutting Tips
2. PNME Propane Cutting Nozzle
3. CE, ISO certificates

Pnme Propane Cutting Nozzle, Welding and Cutting Cutting Torch for CNC Cutting Machine

1)Quick Detail:

1.Pnme cutting nozzle for cutting torch

2.Applicable to propane,propylene and natural gas

3.Material:brass and red copper

2)Description:

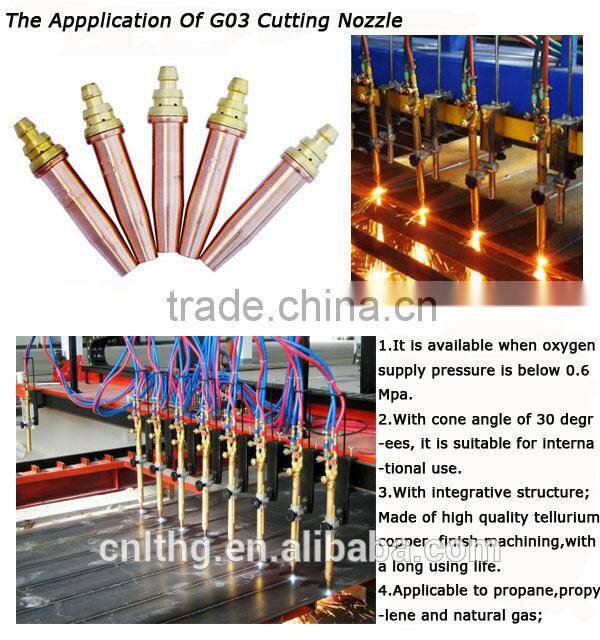

1.G03 Cutting tips are available when oxygen supply pressure is below 0.6Mpa

2.With cone angle of 30degrees, it is suitable for international use.

3.With split structure;Made of high-quality tellurium copper, with a extremely long using life;

4.Applicable to propane,propylene and natural gas;

5.Made of pure copper,nozzle sheath is punched into shape once only,with precise dimensions and good-looking appearance;

6.Inner core is made of imported high-quality brass,the core is machined by CNC lathe with high precision;

7.100%flame test.

3)Applications:
G03 Pnme cutting tip is applicable to propane,propylene and natural gas.

4)Competitive Advantage:

1.Long service life and the efficiency of cutting is high

2.Accurate size,beautiful appearance

Specifications:

Model No.	Diameter of cutting oxygen mm	Cutting thickness mm	Cutting speed mm/min	Gas Pressure Mpa		Gas consumption(m³/h)
Model No.	Diameter of cutting oxygen mm	Cutting thickness mm	Cutting speed mm/min	Oxygen	Propane	Oxygen (m³/h)	Propane(L/h)
00	0.8	5~10	600~450	0.2~0.3	>0.03	0.9~1.3	340
0	1	10~20	480~380	0.2~0.3	>0.03	1.3~1.8	340
1	1.2	20~30	400~320	0.25~0.35	>0.03	2.5~3	470
2	1.4	30~50	350~280	0.25~0.35	>0.03	3~4	470
3	1.6	50~70	300~240	0.3~0.4	>0.04	14.5~6	620
4	1.8	70~90	260~200	0.3~0.4	>0.04	5.5~7	620
5	2.0	90~120	210~170	0.4~0.6	>0.04	8.5~10.5	620
6	2.4	120~160	180~140	0.5~0.8	>0.05	12~15	780
7	2.8	160~200	150~110	0.6~0.9	>0.05	21~24.5	100
8	3.2	200~270	120~90	0.6~1.0	>0.05	26.5~32	1000
9	3.6	270~350	90~60	0.7~1.1	>0.05	40~46	1300
10	4.0	350~400	70~50	0.7~1.2	>0.05	49~58	1600
Note:Cutting conditions:
1.Oxygen purity is above 99.5%
2.Carbon rate of steel material≤0.45%
3.Cutting way:vertical cutting
4.Oxygen pressure refers to cutting pressure before arriving at the cutting torch.

5)Packing Details:

6)Factory Advantage:
1. Professional manufacturer for CNC Cutting Machine Accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure Ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable

7) Company Show:

8) Certificates:
