Specifications
1. small torch lifter2. Apply to Plasma cutting machine
3. Power supply: AC24V

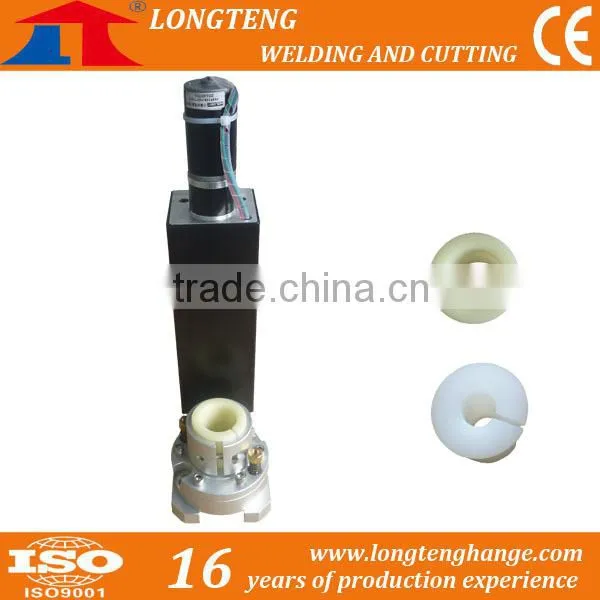

small torch lifter for Plasma cutting machine CNC
1)Quick Detail:
1. small torch lifter
2. Used for plasma cutting machine
3. Anti collision holder used
2)Structural Features
1. Surface treatment: Smooth and beauty
2.100% inspection on critical dimensions with high accuracy +/-0.01-0.005mm
3)Applications:
small torch lifter is used to adjust the distance between steel plate and cutting nozzle, in order to assure cutting quality and prolong the using of the cutting nozzle.
4)Working Principles:
small torch lifter has function of automatically control the height and adjust the location, small torch lifter is suitable for plasma and flame cutting machine, connect digital /straight Strip cutting torch, control the height and adjust the location, then balance the distance of steel and cutting nozzle.
5)Specifications:
| Model No. | Working Voltage | Motor | Working Temperature | Lifting Speed | Lifting Range | Self Weight | Max Lifting Weight |
| 100 | DC 24V 0.9A | 11W | -25~60° | 1200mm/min | max 100mm | 1.9kg | 8.5kg |
| 150 | DC 24V 1.5A | 15W | -25~60°C | 1200mm/min | max 150mm | 3.5kg | 14.8kg |
| 200 | DC 24V 2.2A | 30W | -25~60°C | 1800mm/min | max 200 | 11kg | 20kg |
6)Maintenance Skills:
1. Install the small torch lifter correctlly.
2. Replace the consumbles in time before completely damaged.
3. Avoid the collision of the torch height controller.
4. Keep the connection threads clean.
5. Check if there are loose parts.
7) packing Details:
8)Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
9) Company Show:
10) Certificates:
