Specifications
Touch Dimmer Switch with LED Backlight1. Work temperature: -20-60
2. Input: DC12V/DC24V
3. Output current:1*8A
4. 0% to 100
Touch Dimmer Switch with LED Backlight Technical Parameters:
1. working temperature: -20-60 °C
2. supply voltage: DC5V, 12V ,18V, 24V < optional > ( supply voltage should be marked on order )
3. output: 1 channels
4. connection mode: common anode
5. external dimension: L86 Χ W86 Χ H36 mm
6. packing size: L140 Χ W50 Χ H60 mm
7. net weight: 125g
8. gross weight: 150g
9. static power: <1W
10. output current: <8A( each channel )
11. output power: 5V<45W,12V<108W,24V<216W

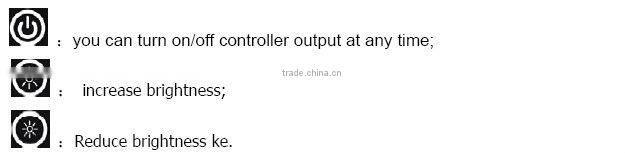

Touch Dimmer Switch with LED Backlight instruction:
Touch Dimmer Switch with LED Backlight Remarks:
1, Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur
between connecting wire before you turn on the power;
2, Power supply voltage range is DC12~24V, more than voltage range maybe will burnout the controller.
