Help CenterLED Dimmer Circuit
US$ 3 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
QL Light
Model Number:
QL-DIM-B-37 LED Dimmer Circuit
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
QL Light
Model Number
QL-DIM-B-37 LED Dimmer Circuit
Type
Other, Dimmer
Max. Load Power
48W
Voltage
Other, 12V, 24V
Specifications
High Quality LED Dimmer Circuit1. Work temperature: -20-60
2. Input: DC12V/DC24V
3. Output current: 2A
4. 0% to 100%
LED Dimmer Circuit Technical Parameters:
1. Working temperature: -20-60°C
2. Supply voltage: DC5V,6V, 12V,24V optional(specify the required voltage on order form)
3. Output: 1 channel
4. External dimension: L61ΧW33ΧH32 mm
5. Packing size: L105ΧW65ΧH40 mm
6. Net weight: 30g
7. Gross weight:55g
8. Static power consumption: <1W
9. Output current: <2A
10. Power output: 24W
LED Dimmer Circuit Direction for use:

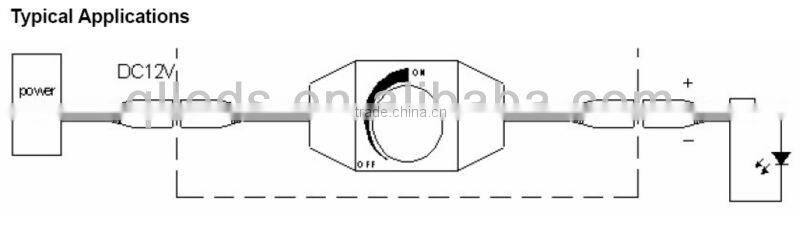

1. Connect the load wire at first, following by the power wire;
2. Adopt rotary button,its function as follows:
Rotate button to the right,brightness will be brighter,when you rotate it to the far right,the
brightness is greatest.
Rotate button to the left,brightness will be darker,when you rotate it to the far left,the light will be
turned off.
