ADP 24 Port Poe Switch 10/100m Power Over Ethernet Switch

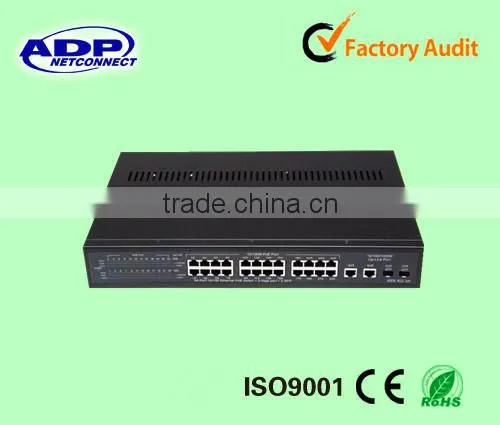

ADP 24 Port Poe Switch 10/100m Power Over Ethernet Switch photo-1
US$ 150 - 160 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ADP&OEM
Model Number:
POE Switch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ADP&OEM
Model Number POE Switch

    ADP 24 Port Poe Switch 10/100m Power Over Ethernet Switch



Features



• 9 10/100Mbps Auto-Negotiation RJ45 ports with 24 PoE port
• Complies with IEEE802.3af standards
•Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
•Bandwidth 1.8Gbps
•Max power for single PoE port is 15.4W
•Supports automatically detect function to protect the system when the system power is overloaded or there is non-PoE device
•LED indicators for monitoring power, link,activity and speed
•48V/2A external power adapter,power over 12(+) 36(-)
•Supports IEEE802.3ax flow control for Full Duplex and back-pressure for Half Duplex mode



Technical Specification



Standard & Protocols

IEEE802.3, 802.3u, 802.3af, 802.3x

CSMA/CD, TCP/IP


Basic Function

Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and back-pressure for Half-Duplex Mode

Power supply

100-240 V, 50/60 Hz,with 48V/2A power adapter

Transfer Method

Store-and-Forward

Interface

24 10/100/Mbps RJ45 ports ,Auto-negotiation,Auto MDI/MDIX)


Network Media

•10Base-T: UTP category 3, 4, 5 cable (max 100m)
  EIA/TIA-568 100Ù STP (maximum 100m)
•100Base-Tx: UTP category 5, 5e cable (max 100m)
  EIA/TIA-568 100Ù STP (max 100m)
•1000Base-T: UTP category 5, 5e cable (max 100m)

 Indicators

Power, Link/Act ( 10/100Mbps)

Certificates

FCC, CE, RoHS


Environment

Operating Temperature: 0°C~40°C
Storage Temperature: -10°C~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Dimensions

225*121*35 mm

Warranty

One year

Package content

24 port PoE switch
Datasheet
Power cord (optional type)


Installation

 ADP 24 Port Poe Switch 10/100m Power Over Ethernet Switch
