Unmanaged Gigabit Media Converter with 2 Fiber Port & 4 Ethernet Ports
Describtion
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment .
10/100/1000M Dual fiber Media Converter can convert Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 60km through optical fiber link.

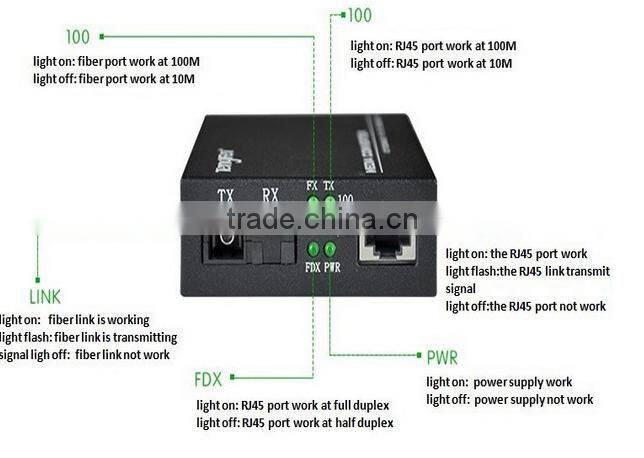

Features
1. Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply
Technical Information
1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%

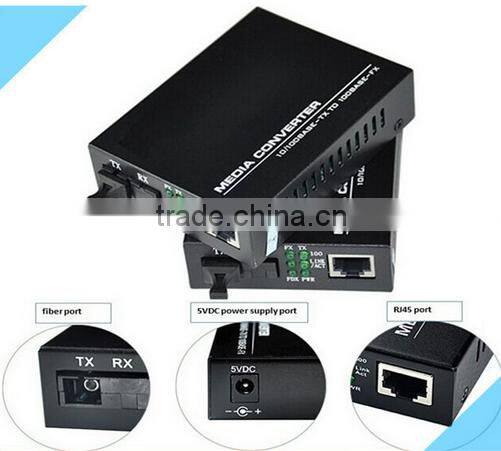

3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure
6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K
Prdocuct Specification
| 10/100/1000M Single fiber | ||||
| Connector type | SC | SC | SC | SC |
| Fiber type | Single-mode | Single-mode | Single-mode | Single-mode |
| Wavelength | 1310/1550nm | 1310/1550nm | 1310/1550nm | 1490/1550nm |
| Max Distance | 20Km | 40Km | 60Km | 80Km |
| Min TX PWR | -10.0dBm | -4.0/-8dBm | 0/-5.0dBm | -1dBm |
| Max TX PWR | -4.0dBm | 0dBm | 3/0dBm | 3dBm |
| Sensitivity | < -22dBm | < -25dBm | <-25dBm | < -25dBm |
| Link Budget | 12.0dBm | 20/17dBm | 25/20dBm | 24.0dBm |
10/100/1000M Dual fiber | |||||
Connector type |
SC | SC | SC | SC | SC |
| Fiber type | Multi-mode | Single-mode | Single-mode | Single-mode | Single-mode |
| Wavelength | 850nm | 1310nm | 1310nm | 1550nm | 1550nm |
| Max Distance | 62.5µm: 224m | 20Km | 40Km | 60Km | 80Km |
| 50µm: 550m | |||||
| Min TX PWR | -11.0dBm | -9.0dBm | -4.0dBm | -8.0dBm | -3.0dBm |
| Max TX PWR | -6.0dBm | -5.0dBm | 0dBm | 0dBm | 0dBm |
| Sensitivity | < -18dBm | < -21dBm | < -24dBm | < -25dBm | < -25dBm |
| Link Budget | 7.0dBm | 12.0dBm | 20.0dBm | 17.0dBm | 22.0dBm |

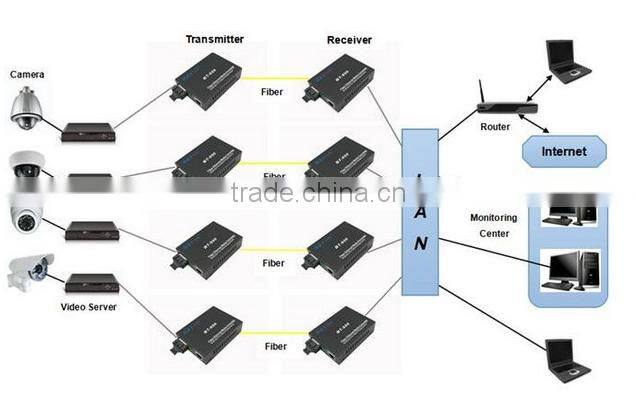

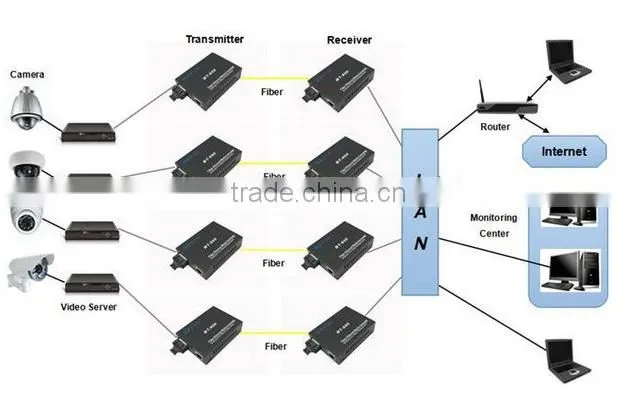

Application Diagram
