good price SFP Optical Transceiver 1000Base-SX
Product Description
Model Numebr |
1603280301 |
Brand |
ADP(OEM is ok) |
Encapsulation |
SFP |
Function Type |
Optical Transceiver |
Data Rate |
Up to 1.25Gb/s |
Fiber Mode |
Single Mode/SM |
Transmission |
Single fiber Bi-directional |
Wavelength |
Tx 1550nm/Rx 1310nm |
Distance |
20Km on 9/125μm SMF |
Connector |
Single SC |
Average Optical Output Power |
-10~-3 dBm |
Extinction Ratio |
>9 dB |
Eye Pattern |
OK |
Receiver Sensitivity |
<-23 dBm |
Loss of Signal Assert |
>-33 dBm |
Loss of Signal Deassert |
<-23 dBm |
LOS Hysteresis |
1~4 dB |
Saturation Power |
>-3 dBm |
Supply Voltage |
3.3V |
Supply Current |
200 mA |
Operating Temperature |
Com. 0~+70℃ |
Hot-Pluggable |
YES |
Digital diagnostic monitoring(DDM) |
YES |
Compatible |
MSA/ SFF-8472 v9.3 |
Dimension |
63.4*13.3*8.5mm |
Weight |
0.031Kg |
Product Information
| Type | Data rete(Mbps) | Description | Laser Transmitter | Encapsulation | Supply Voltage | Data Level |
| ADP-0301 | 1250 | SM,20km,OC-24 | 1310nm FP Laser Diode | SFP,SC/LC | +3.3V | LVPECL |
| ADP-0302 | 1250 | SM,20km,OC-24 | 1550nm DFB Laser Diode | SFP,SC/FC | +3.3V | LVPECL |
Product Features
• Extended Operating Temperature Range (-40℃ to +85℃)
• Low power dissipation
• Excellent EMI and ESD protection
Product Application
1. High-speed storage area networks
2. Computer cluster cross-connect
3. Custom high-speed data pipes

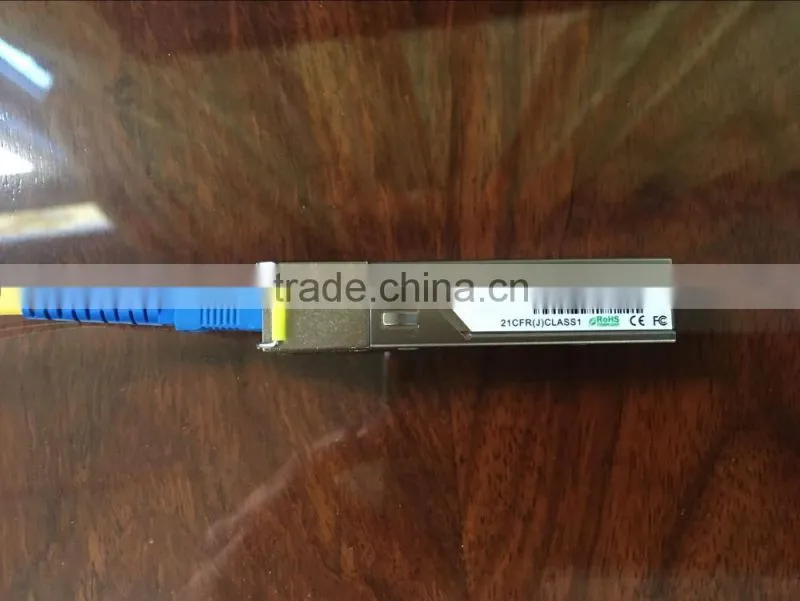

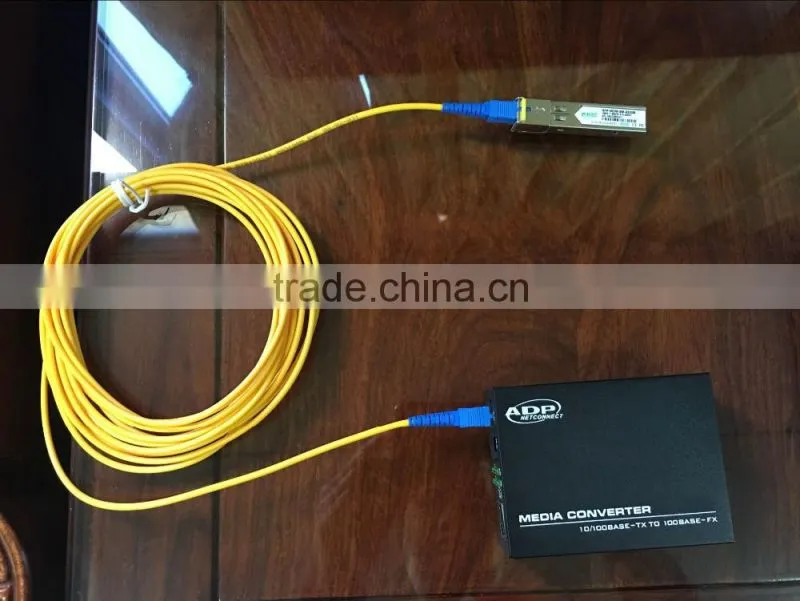

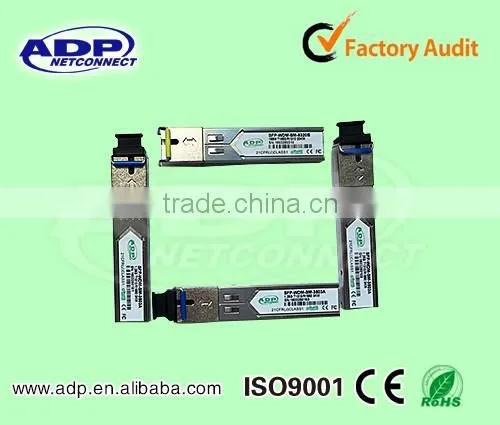

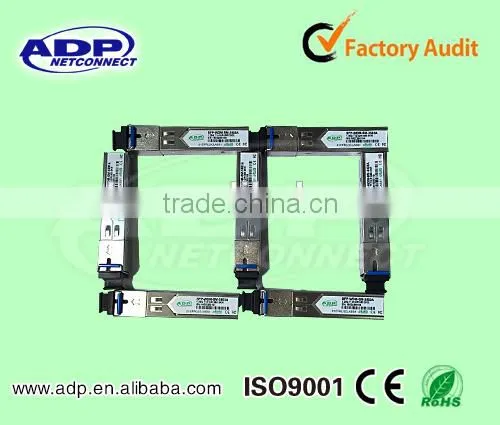

Product Picture
