8 Port POE switch 10/100M POE managed optical fiber ethernet switch
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
- Acrel 868MHz LoraWAN communication RS485 communication interface intelligent wireless communication terminal AWT100-LW868
- Acrel wireless communication terminal GPS location Din Rail Mounted RS485 communication interface AWT100-GPS
- Acrel AWT100-LoRaHW LoRa communication intelligent gateway Din Rail Mounted RS485 communication interface
- Acrel AWT100-WiFiHW smart gateway WiFi communication Din Rail Mounted RS485 communication interface
- Acrel 4G communication Din Rail Mounted RS485 communication interface AWT100-4GHW smart wireless communication terminal
- Acrel AWT100-CEHW wireless communication terminal Ethernet communication Din Rail Mounted RS485 communication interface
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ADP/OEM | Model Number: | POE |
Product Description
8 Port POE switch 10/100M POE managed optical fiber ethernet switch
Main technical specifications of POE switch | |
Network Interface | • 10/100Mbps automatic joint POE function RJ45 port (5/8 POE) • 10/100Mbps automatic joint 10/100Mbps RJ45 ports |
Transmission speed | • 10 / 100Mbps full duplex, 10 or 100Mbps half duplex • Network Interface: 10BASE-T or 100BASE-TX Ethernet RJ-45 interface |
Performance Specifications | •Broadband: 2.6Gbps (non-blocking) •Network latency (100 to 100Mbps): Up to 20 microseconds (use 64 direct packet size) • acket Buffer Memory: 96KB • Address database size: 1,024 MAC addresses •Frame filter rate: 10M port maximum 14,800 frames / sec 100M port maximum 148,800 frames / sec. •Frame transfer rate: 10M port maximum 14,800 frames / sec / 100M port maximum 148,800 frames / sec. |
Network protocols and standards-compliant | • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3x Flow Control • IEEE 802.3ar Power over Ethernet |
Indicator LEDs | • System: Power, POE maximum power • Each port speed, connection, POE activity, POE failure |
Power Support | • Maximum POE power: Max 15.4W per port • DC48V (various countries have adopted specific power plug) |
Environmental Specifications | • Operating temperature: 0 ° ~ 40 ℃ (32 ℃ ~ 104 ° F) • Operating Humidity: 10% to 90%, non-condensing |
Electromagnetic Compatibility
| • CE class B • FCC Part 15, Class B • VCCI Class B • C-Tick |
Safety specifications | • CE / LVD |
Certification | • CE FCC ROHS |
Warranty | •Whole year warranty |

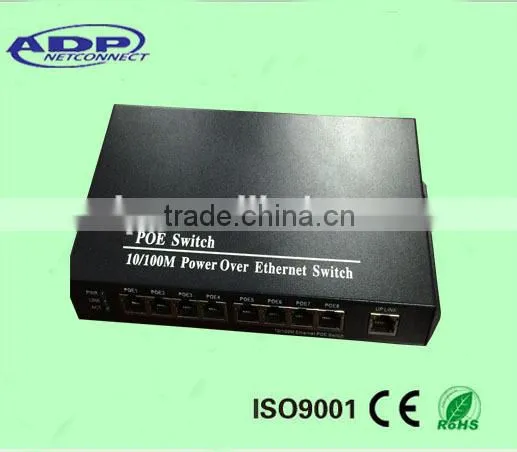

Photoes:
