Razor Barbed Wire, Hot-Dip Galvanized

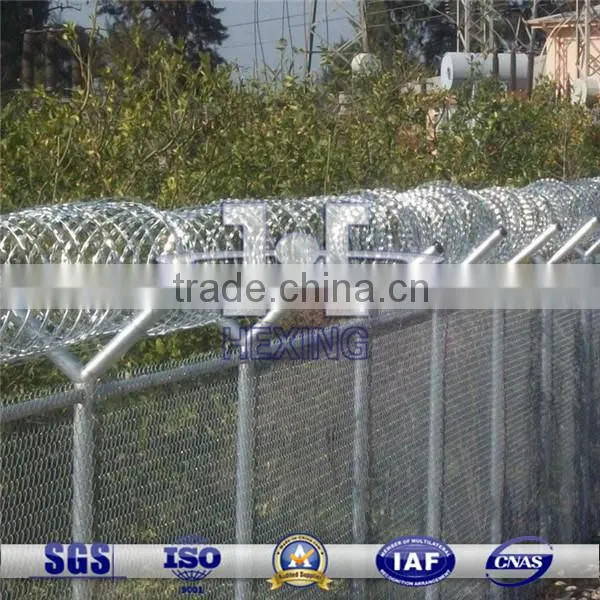

Razor barbed wire is one kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Razor Barbed wire can be installed at the top of the wall, to achieve the result of frightening and preventing the aggressive perimeter intruders. The special designs make climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Application: Currently, razor barbed wire has been widely used in many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recent years, razor wire has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
Standard styles of razor wre are shown in the tables below, special specifications are available on request.
Standard material is either galvanized or stainless steel.
Barbed Tape Obstacle (BTO); Barbed Tape Concertina (CBT).
Razor Blade Specification | ||||||
Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb |
Barb |
Barb |
BTO-10 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
13±1 |
26±1 |
BTO-12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-18 |
|
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
|
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
|
0.5±0.05 |
2.5±0.1 |
28±1 |
15±1 |
34±1 |
BTO-30 |
|
0.5±0.05 |
2.5±0.1 |
30±1 |
18±1 |
34±1 |
CBT-60 |
|
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
96±2 |
CBT-65 |
|
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Barbed Tape Wire Specification | ||||
Loop Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
450mm |
56 |
8-9m(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
10-11M(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
