High Strengh Frp Plastic Rectangle Grating

High Strengh Frp Plastic Rectangle Grating thumbnail-1
High Strengh Frp Plastic Rectangle Grating thumbnail-2
High Strengh Frp Plastic Rectangle Grating thumbnail-3
High Strengh Frp Plastic Rectangle Grating thumbnail-4
High Strengh Frp Plastic Rectangle Grating thumbnail-5
High Strengh Frp Plastic Rectangle Grating thumbnail-6
High Strengh Frp Plastic Rectangle Grating photo-1
High Strengh Frp Plastic Rectangle Grating photo-2
High Strengh Frp Plastic Rectangle Grating photo-3

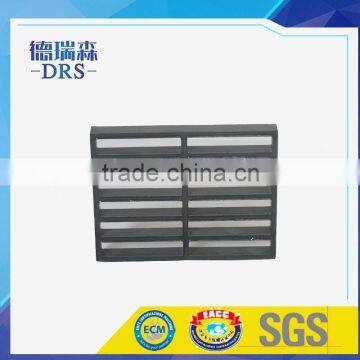

High Strengh Frp Plastic Rectangle Grating photo-4

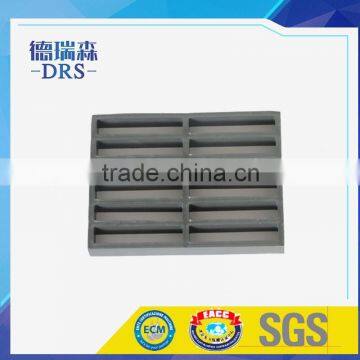

High Strengh Frp Plastic Rectangle Grating photo-5
High Strengh Frp Plastic Rectangle Grating photo-6
US$ 20 - 50 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DRS
Model Number:
DRS-R
Contact Supplier Request Quote Chat Now
Nantong Drayson Composite Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Nantong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name DRS
Model Number DRS-R
Application Industry
Surface Treatment Smooth
Technique Molded
Dimensions Customizable
Product Description

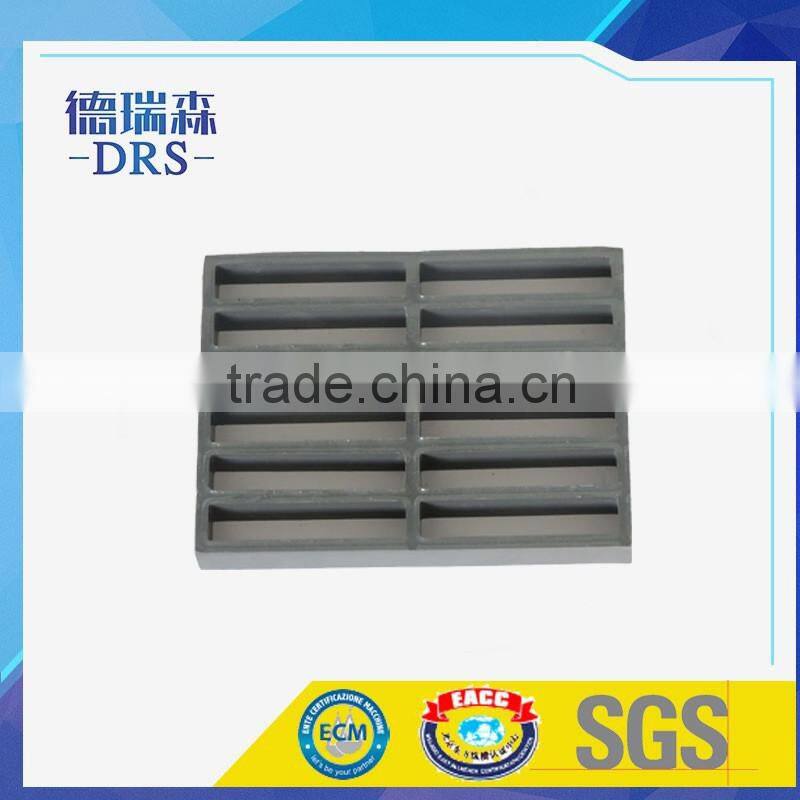

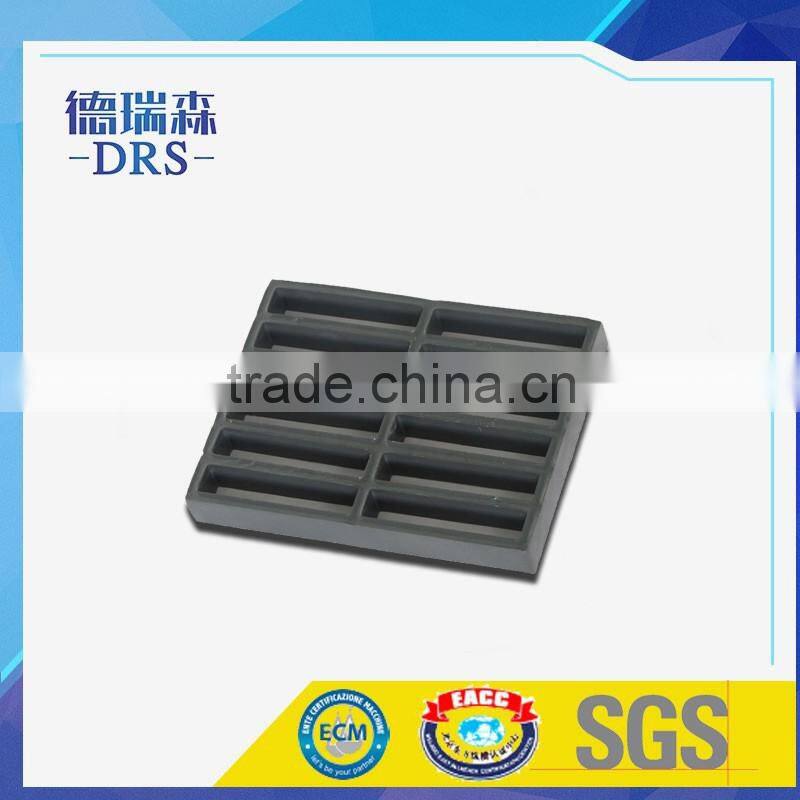

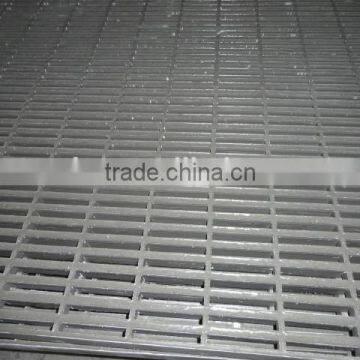

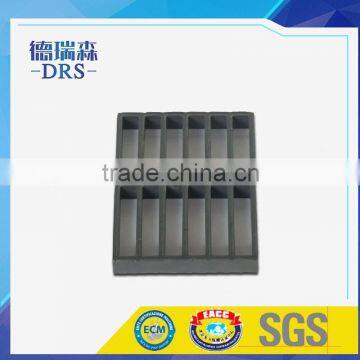

High strengh frp plastic rectangle grating


Parameters

Type
Molded FRP Grating
Material
Fiberglass + Resin base (ORTHO,ISO,VE)+Filler(ATH,CAO)
Size
38*38*38mm，40*40*40mm, etc. can be customized
Color
Yellow, Orange, Blue, Green, Grey, etc. can be cutomized
Surface
Concaved , Smooth , Gritted , etc.

Properties

Light Weight, High Strength

Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength is superior to ordinary carbon steel. Anti-creeping. Impact endurance.
Safety
Good performance of electric insulation. 10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
Anti-Corrosion
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture. It has predominant advantages in anti-corrosion field.
Anti-skid
Different process mode on surface, concave, gritted, increase friction factor. Have good anti-skid function.
Anti-aging
Have more than 20 years effective service life under normal outdoor working condition.
Anti-fatigue
Moderate flexibility reduces the workers` pressure on legs and waist which is more comfortable
Attractive appearance & easy maintenance
have alternative and bright colors. Non-fading. Easily for clean.
Excellent economic benifits
Excellent comprehensive economic benefits
Specifications

Mesh Size(mm)

Thickness (mm)

Bar Thickness(mm)

Standard Panel Size(mm)
Weight(kg/㎡)

38x38

13

6.0/5.0

1220x3660,1220x4000,1220x2440,921x3055,1264x4010

6.0

14

6.0/5.0

1220x3660,1220x4000,1220x2440,921x3055,1264x4010

6.5

15

6.0/5.0

1220x3660,1220x4000,1220x2440,921x3055,1264x4010

7.0

20

6.0/5.0

1220x3660,1220x4000,1524x4010,997x3012

9.8

25 (25.4 1")

6.5/5.0

1220x3660,1226x4010,1524x4000,1530x4010,1997x3012

12.3

30

6.5/5.0

1220x3660,1220x4010,1524x4010,921x3055

14.6

38 (38.1 1.5")

7.0/5.0

1220x3660,1220x4010,2100x4240,998x4010,1220x2440,921x3055,1530x4010,1530x3050,1000x4000,1226x3665

19.5

50 (50.8 2")

9.5/7.5

1220x4010,1220x3666,1230x4010,1220x2440,921x3055

42

60

10.5/8.5

1230x4010

50.4

70

11.0/9.0

1230x4010

58.8
40x40

25

7.0/5.0

1007x3007,1007x4007,1247x4047,1527x4047

12.3

30

7.0/5.0

1527x4047,1007x3007,1247x4047
14.6

38

7.0/5.0

1527x4047,1247x4047,1007x3007,1007x4047
19.2

40

7.0/5.0

1527x4047,1007x3007,1007x4047,1247x4047
19.5
50x50

15

6.0/5.0

1228x4020,1220x3660,1220x2440
5.9

40

6.8/5.0
1787x4530,1225x4530
17.5

25

7.0/6.0
1220x3660,1226x4020,1220x2440,915x3050
11.5

50

8.0/6.0
1524x4000,1220x3660,1220x2440,1220x4000,915x3050,1532x4020
23.7
83x83

38
7.0/5.0
1007x4007,1007x3007,1007x4255
10.0

40
7.0/5.0

1007x4007,1007x3007,1007x4255
11.0

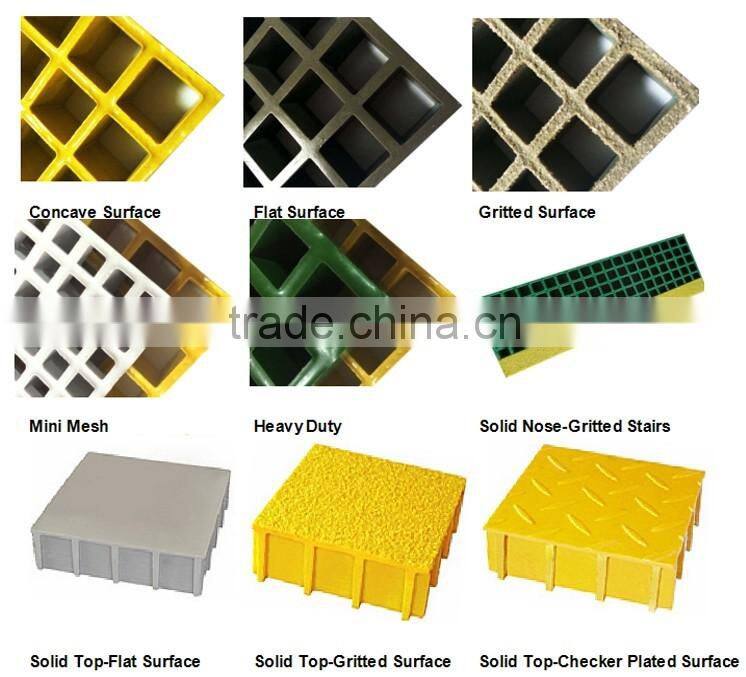

Various FRP Grating

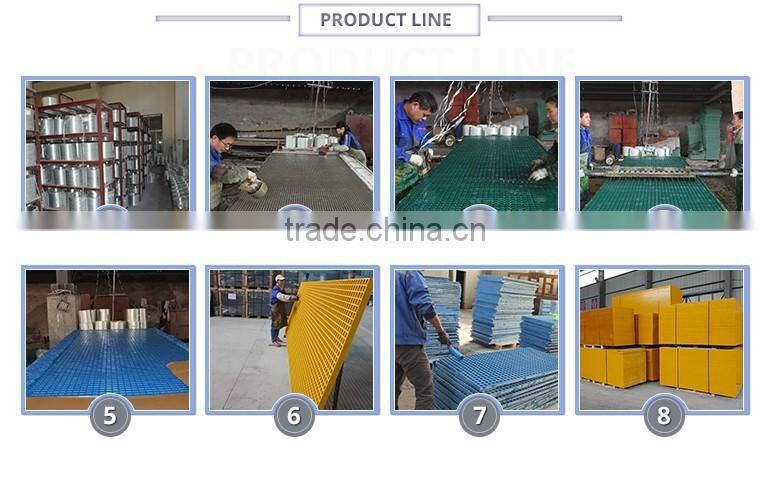

Process Flow

From Raw Material to the Products, we have strict process and quality control, our factory has the ISO9001:2008 and CE certificate. Welcome to visit our factory!

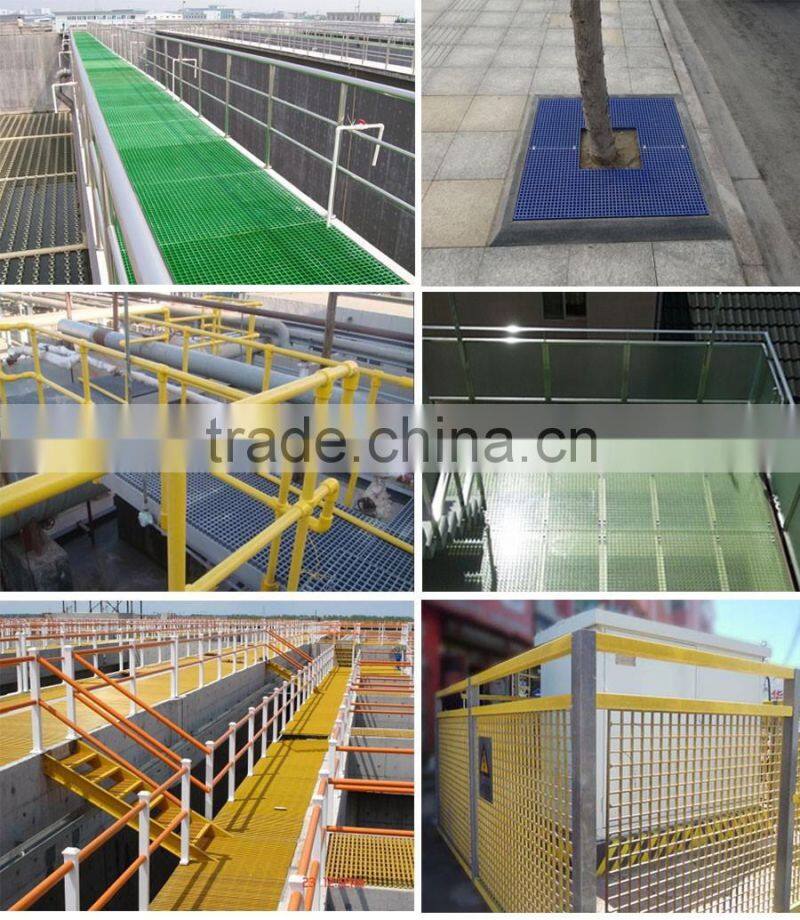

Applications

FRP/GRP products can be applied to many industries, such as Water treatment platform, Car wash platform, Chemical plant, Oil industry, Ocean Food Processing Industry, Transportation and so on.

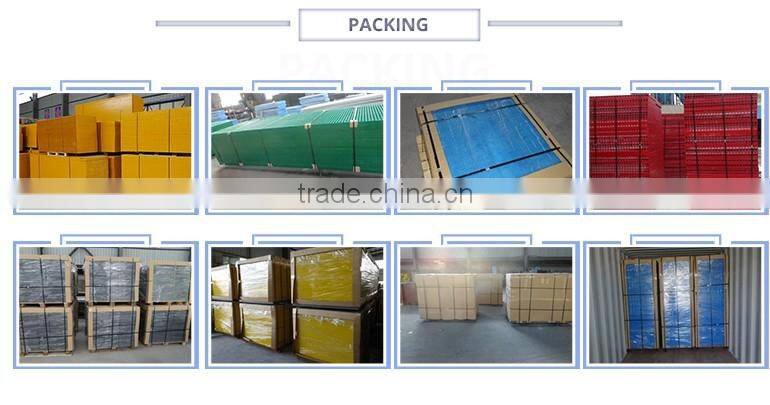

Packing & Delivery

Usually Package: Packed with Wooden/Iron Pallets.
Usually Lead Time: 7 days for 20" Container, 15 days for 40" Container.
